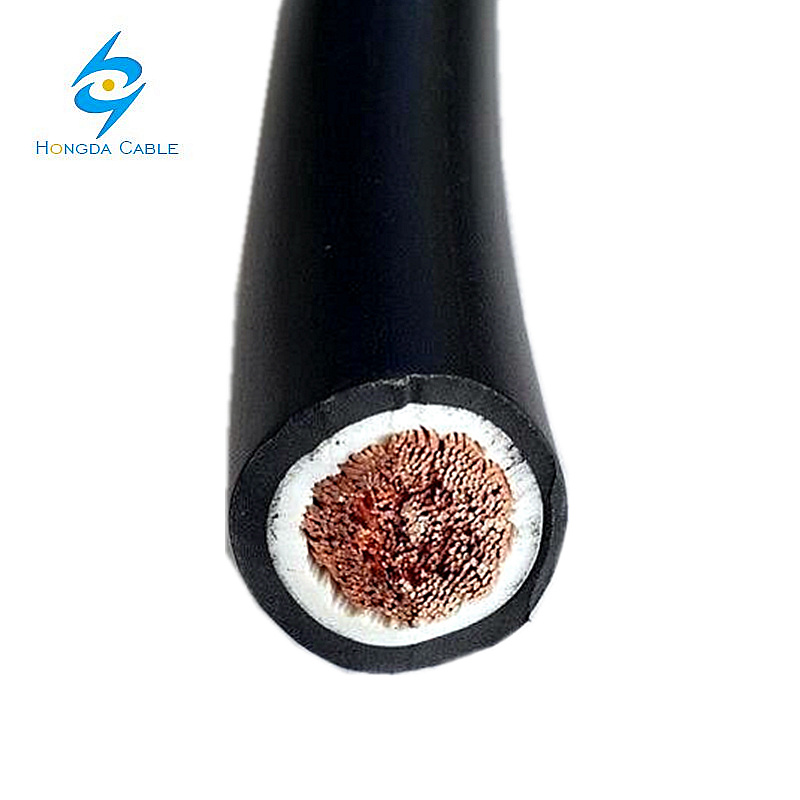

Single Core Ykxs 0.6/1kv Low Voltage 1X120 1X240 1X400 mm2 Copper Power Cable

Single Core Ykxs 0.6/1kv Low Voltage 1X120 1X240 1X400 mm2 Copper Power Cable image

Get Latest Price Request a quote

Product Details

Model NO.

YKXS

Current

DC & AC

Insulation Material

XLPE

Sheath Material

PVC

Material Shape

Round Wire

Wire Core Material

Copper

Certification

VDE, IEC

Brand

Huadong

Rated Voltage

0.6/1kv

Cores

1 2 3 4 5 Core Ect

Size

1.5-800mm2

Transport Package

by Wooden Drum or Others

Specification

by meters

Trademark

huadong

Origin

China

HS Code

8544492100

Production Capacity

15 Million Km

Product Description

YKXS 0,6/1 kV
Power cables with copper conductor and XLPE insulation

Application and Description
Cables are designed for fixed installation, indoors and outdoors, in the ground and in concrete. Installation of the product
should only be carried out by personnel trained and qualified for electrical works. The product is designed according to
recognized standards. Applicable rules of installation must be applied at all times.

Standard and Approval
IEC 60502-1

Cable Construction
1. Copper conductor 2. XLPE insulation 3. Taped or extruded bedding 4. PVC sheath

Technical Characteristics

Rated voltage Uo/U 0,6/1 kV Test voltage 4 (AC) kV
Max short-circuit temperature 250 °C
Max operating conductor temperature 90 °C
Temperature range from -35 up to 90 °C
Minimal temperature for laying and manipulation -5 °C
Minimal storage temperature -35 °C

Cable Parameters

NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM	CONDUCTOR TYPE	THICKNESS OF INSULATION MM	THICKNESS OF SHEATH MM	NOMINAL OVERALL DIAMETER MM	COPPER WEIGHT KG / KM	CABLE WEIGHT KG / KM
1×16	rm	0.7	1.8	11	144	230
1×25	rm	0.9	1.8	12.5	228	340
1×35	rm	0.9	1.8	13.5	317	445
1×50	rm	1	1,8	15.5	454	605
1×70	rm	1.1	1.8	17	656	800
1×95	rm	1.1	1.8	19	911	1065
1×120	rm	1.2	1.8	21	1147	1320
1×150	rm	1.4	1.8	23	1415	1610
1×185	rm	1.6	1.8	25.5	1770	1925
1×240	rm	1.7	1.8	28.5	2327	2483
1×300	rm	1.8	1.8	31	2887	3058
1×400	rm	2	1.9	35	3692	3887
1×500	rm	2.2	2	38.5	4725	4937
2×16	rm	0.7	1.8	19.5	294	645
2×25	rm	0.9	1.8	23	466	945
2×35	rm	0.9	2	25.5	646	1235
2×50	rm	1	2	29	924	1680
3×16	rm	0.7	1.8	20.5	441	805
3×25	rm	0.9	2	24.5	699	1220
3×35	rm	0.9	2	27	969	1575
3×50	sm	1	2	24.5	1387	1765
3×70	sm	1.1	2	28	1897	2350
3×95	sm	1.1	2	31	2631	3145
3×120	sm	1.2	2	34	3324	3915
3×150	sm	1.4	2.2	37	4084	4820
3×185	sm	1.6	2.2	42	5123	6045
3×240	sm	1.7	2.6	47.5	6733	7885
3×4.0+2.5	re	0.7/0.7	1.8	13.5	135	328
3×6.0+4	re	0.7/0.7	1.8	15	205	445
3×10+6	re	0.7/0.7	1.8	17	338	611
3×16+10	re	0.7/0.7	1.8	20	541	868
3×25+16	rm	0.9/0.7	2	27	846	1405
3×35+16	rm	0.9/0.7	2	29.5	1116	1765
3×50+25	sm/rm	1.0/0.9	2	28.5	1620	2075
3×70+35	sm/rm	1.1/0.9	2	33	2220	2650
3×95+50	sm/rm	1.1/1.0	2.2	36.5	3093	3615
3×120+70	sm/rm	1.2/1.1	2.2	39	3956	4690
3×150+70	sm/rm	1.4/1.1	2.2	44	4716	5630
3×185+95	sm/rm	1.6/1.1	2.6	48.5	6000	7150
3×240+120	sm/rm	1.7/1.2	3	57	7841	9305
4×16	rm	0.7	1.8	22	588	985
4×25	rm	0.9	2	27	932	1500
4×35	rm	0.9	2	29.5	1292	1955
4×50	sm	1	2	28.5	1850	2320
4×70	sm	1.1	2	33	2530	3100
4×95	sm	1.1	2.2	36.5	3508	4180
4×120	sm	1.2	2.2	39	4433	5200
4×150	sm	1.4	2.2	44	5446	6410
4×185	sm	1.6	2.6	48.5	6831	8050
