Product Details

Model NO.

RFOU BFOU POWER CABLE

Current

AC Cable

Insulation Material

Epr or XLPE Xlpo

Sheath Material

PVC/Pcp/Po(Shf1, Shf2)

Material Shape

Round Wire

Wire Core Material

Tinned Wire

Certification

ISO, CCC, ABS

Model

Epr or XLPE

Brand

Rne Da

Conductor

Tinner Copper

Insulated

Epr or XLPE

Armored

Tinned Copper Wire Braid(Galvanized Steel Wire Bra

Outer Sheath

PVC/Pcp/Po(Shf1, Shf2)

Cores

1.2.3.4.4.7.10.12.14.16.19.24.27.30.33.37

Areas

0.75mm2-300mm2

Certificate

CCS, Lr, ABS, Dnv, BV, Gl, Nk, Kr, Rina, 90

Product Name

Marine Power Cable

Transport Package

Standard Export Drum

Specification

IEC60228

Trademark

RNE DA

Origin

Hebei, China

HS Code

85444921

Production Capacity

500km/Month

Product Description

TOP TEN CABLE MANUFACTURER/EXPORTER IN CHINA
LARGEST CABLE MANUFACTUER IN NORTH CHINA
ANNUAL EXPORT VOLUME EXCEED 800MILLION USD
WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD’S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS
WITH TUV TYPE TESTING REPORT
WIDE PRODUCTS RANGE
ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS
CNAS APPROVAL LABROTARY

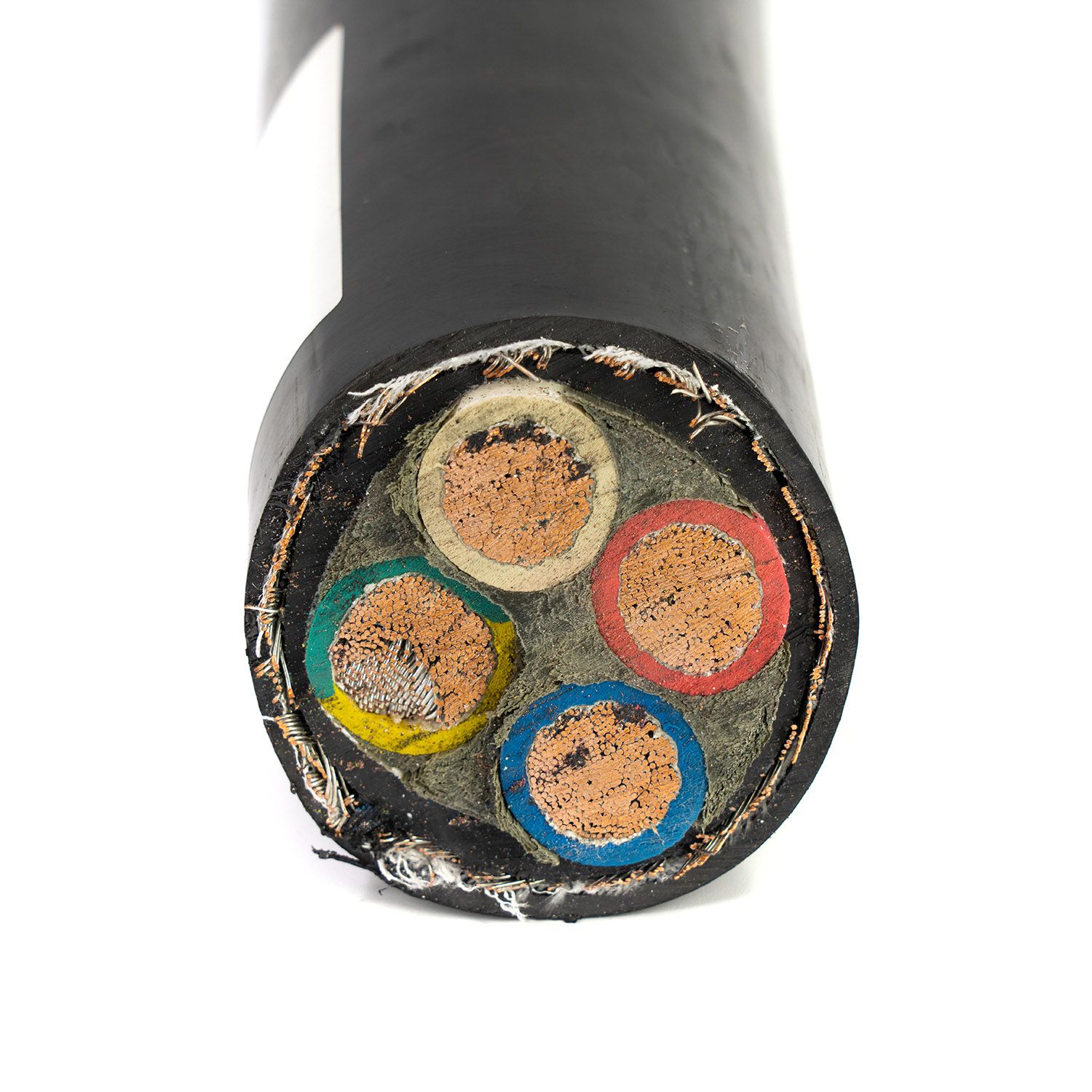

0.6/1KV 4 core 25mm2 35mm2 tinned copper XLPO/XLPE/EPR/LSZH insulated RFOU/BFOU marine shipboard power cable

1 Rating voltage: 0.6/1KV 1.8/3kV 3.6/6KV 6/10KV 8.7/15KV

2 Specification &standards

IEC60228 IEC60092-350 IEC60092-359
IEC60092 351 IEC60332-1 IEC60332-3 Cat.A
IEC61034-2 IEC 60754-2 3A

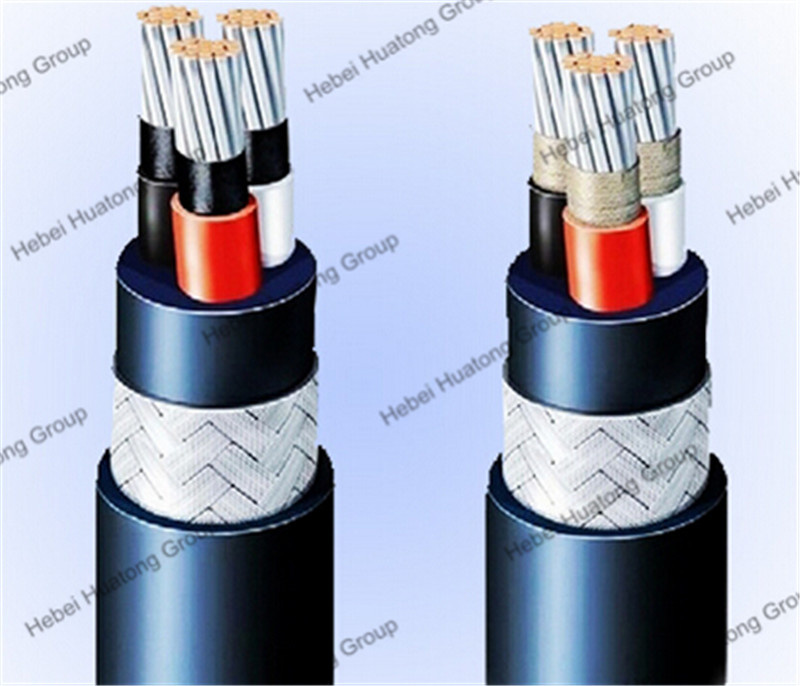

3 Construction:

Conductor:Tinned Copper
Insulated:EPR or XLPE or XLPO
Filler
Tape
Inner sheathe:PCP/CSP/PVC/PO(SHF1,SHF2) LSZH
Armored:tinned copper wire braid(Galvanized steel wire braid)
Outer Sheath:PVC/PCP/PO(SHF1,SHF2) LSZH
Flammability Features:
DA:Single cable flame retardant
SA:Bunched cable flame retardant
SC:Bunched cable flame retardant,halogen-free,low-smoke,low-toxicity

4 Specifications:

Cores:1.2.3.4.4.7.10.12.14.16.19.24.27.30.33.37
NominalCross-section Areas:0.75mm2,1mm2,1.5mm2,2.5mm2,4mm2,6mm2,10mm2,16mm2,25mm2,
35mm2,50mm2,70mm2,95mm2,120mm2,150mm2,185mm2,240mm2,300mm2

Applicant:
The marine electrical cable is intended for power,lighting and control system of shipboard and off-shore building,and it is also available to metallurgical chemical works,power planted and mines etc.

Certificates:
CCS,LR,ABS,DNV,BV,GL,NK,KR,RINA,90

The radius of bend for the installation of marine cables

Cable structure features	Over diameter of cable(D)	Minimum internal bending radius
Metal braided armored	Any value	6D
Non-armored	D≤25	4D
Non-armored	D25	6D

Packing: Standard export drum,500meters/rdum,1000meters/drum or as your requirment.
