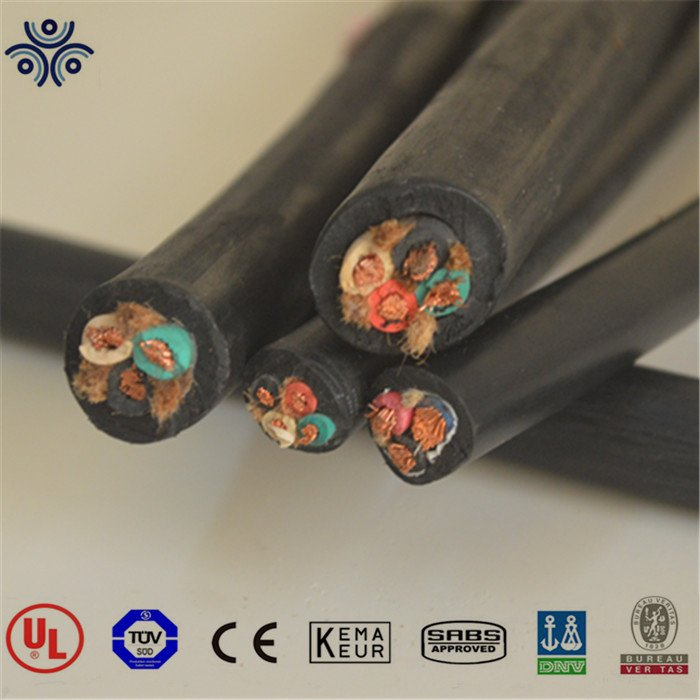

RoHS Compliant UL Listed and cUL Certified 18/3 300V Copper Black Flexible Portable Power Cable Sjoow
RoHS Compliant UL Listed and cUL Certified 18/3 300V Copper Black Flexible Portable Power Cable Sjoow image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
UL and CUL List SO SOOW SJOOW Rubber Flexible Electrical Cable
TOP TEN CABLE MANUFACTURER/EXPORTER IN CHINA
LARGEST UL AND CUL LIST CABLE MANUFACTUER IN NORTH CHINA
ANNUAL EXPORT VOLUME EXCEED 800MILLION USD
WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD’S,GL,NK,KR,ABS PRODUCTS CERTIFICATION
WITH TUV TYPE TESTING REPORT
WIDE PRODUCTS RANGE
ISO9001,ISO18001,ISO45001 SYSTEM CERTIFICATIONS
Product Description
1 Applications:
UL S/SO/SOW/SOOW Electric Cable is ideal for use with industrial equipment, heavy tools, battery chargers,portable lights and power extensions. SOOW cable has a neoprene insulation that is resistant to oil,acid, abrasion, sunlight.
2 Standard:
UL62 Standard.
| UL Approval Style | Cores | Conductor | Insulation | Jacket | Amp Rating | ||||
| AWG | Sectional Area(mm2) |
Construction (no./mm) |
Thickness (mm) |
Diameter (mm) |
Thickness (mm) |
Diameter (mm) |
|||
| S SO SOO SOW SOOW |
2C | 18 | 0.82 | 41/0.16 | 0.76 | 2.80 | 1.52 | 8.80 | 10A |
| 16 | 1.31 | 26/0.254 | 0.76 | 3.10 | 1.52 | 9.45 | 13A | ||
| 14 | 2.08 | 41/0.254 | 1.14 | 4.30 | 2.03 | 12.80 | 15A | ||
| 12 | 3.31 | 65/0.254 | 1.14 | 4.65 | 2.41 | 14.12 | 20A | ||
| 3C | 18 | 0.82 | 41/0.16 | 0.76 | 2.80 | 1.52 | 9.30 | 10A | |
| 16 | 1.31 | 26/0.254 | 0.76 | 3.10 | 1.52 | 9.95 | 13A | ||
| 14 | 2.08 | 41/0.254 | 1.14 | 4.30 | 2.03 | 13.50 | 15A | ||
| 12 | 3.31 | 65/0.254 | 1.14 | 4.65 | 2.41 | 15.35 | 20A | ||
| 4C | 18 | 0.82 | 41/0.16 | 0.76 | 2.80 | 1.52 | 9.95 | 10A | |
| 16 | 1.31 | 26/0.254 | 0.76 | 3.10 | 1.52 | 10.70 | 13A | ||
| 14 | 2.08 | 41/0.254 | 1.14 | 4.30 | 2.03 | 14.70 | 15A | ||
| 12 | 3.31 | 65/0.254 | 1.14 | 4.65 | 2.41 | 16.61 | 20A | ||
Huatong extremely focuses on doing R&D high-tech, new-type, advanced products, till now, we have obtained UL, CSA, TUV, CE, PSB, SABS, BV, KEMA certifications and ISO9001, ISO14001, ISO45001 system certifications. CNAS accredited national level laboratory.
Company name : Hebei Huatong Wires and Cables Group Co., Ltd
Establishment : 1993
Registered capital : CNY430.82 Million, equal to: US$62 Million
Plant size : 220,000SQM
Employees : 2000+
Production capacity: US$500Million
Sub-factories : in South Africa, Tanzania, Kazakhstan, Cameroon, etc.
Main products : ESP cable, mining cable, power cable up to 46KV, control cable, lift cable, shipboard cable, housing wire, and many other special cables.
Address : No.111 Huatong Avenue Fengnan Industrlal Zone Tangshan,Hebei Province, China
1. 30 years production experience and 22 years export experience .
2.Products certification :CUL UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
We are China RoHS Compliant UL Listed and cUL Certified 18/3 300V Copper Black Flexible Portable Power Cable Sjoow manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
