Overhead Ground Wire GB Standard 35sqmm Acs Aluminum Clad Steel Conductor

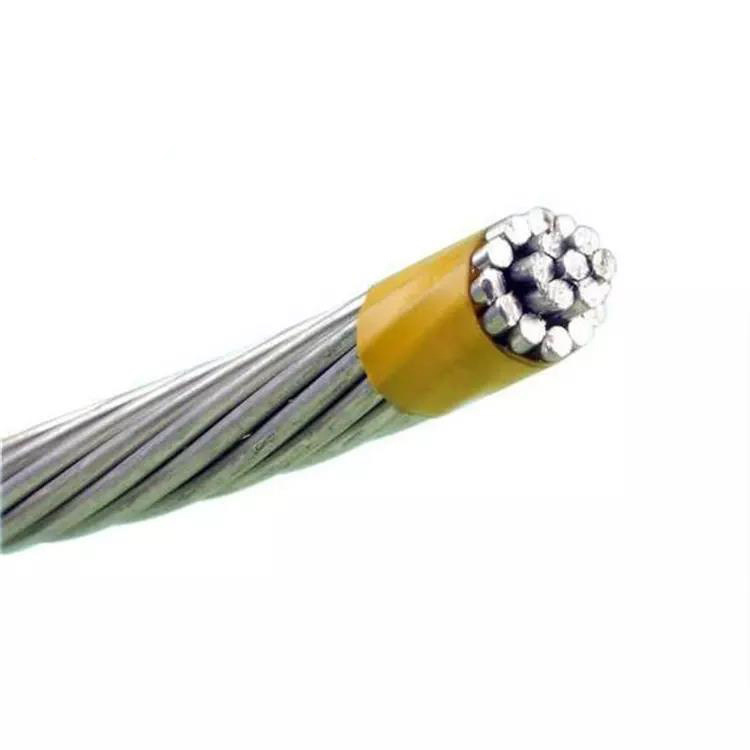

Overhead Ground Wire GB Standard 35sqmm Acs Aluminum Clad Steel Conductor image

Get Latest Price Request a quote

Product Details

Model NO.

Bare conductor

Application

Overhead

Conductor Material

Aluminum Clad Steel

Sheath Material

None

Insulation Material

Bare

Material Shape

Round Wire

Range of Application

Transmission

Certification

ISO9001, CE, CCC

Brand

Hnbf

Trade Terms

Fob,CIF,T/T

Sample

Provding

Color

Slivery

Transport Package

Wood Drum

Specification

25/35/50/70/95/120/150sqmm etc

Trademark

HNBF Cable

Origin

Zhengzhou China

HS Code

7312100000

Production Capacity

500km Per Month

Product Description

1.Product Description

ACS(Aluminum Clad Steel Conductor/Alumoweld) is widely used in the overhead power distribution system of our country and designed for aerial power transmission lines, river crossings etc.

We can supply this conductor according to different recognized standards,such as ASTM1998/B416,DIN48201,GB/T 1179-2008. And we can also satisfiy the customers’ needs.

Conductivity

14%IACS

20.3%IACS

23%IACS

27%IACS

30%IACS

35%IACS

40%IACS

2.Structure

3.Strandard

ALUMINIUM CLAD STEEL STRAND GB/T 1179-2008(JLB2)
Nominal Area St	Code Number	Area	Number of Wires	Diameter		Linear Mass	Rated Strength	Max. D.C. Resistance at 20ºC
Nominal Area St	Code Number	Area	Number of Wires	Wire	Cond.	Linear Mass	Rated Strength	Max. D.C. Resistance at 20ºC
mm2		mm2		mm	mm	kg/km	kN	Ω/km
35	16	36.2	7	2.56	7.69	216.4	39.04	1.7896
55	25	56.5	7	3.21	9.62	338.2	61.00	1.1454
100	40	90.4	7	4.05	12.2	541.1	97.61	0.7159
100	40	90.4	19	2.46	12.3	543.7	97.61	0.7193
150	63	142	19	3.09	15.4	856.4	153.73	0.4567
220	100	226	37	2.79	19.5	1362.6	244.02	0.2884
300	125	282	37	3.12	21.8	1703.2	305.02	0.2307
350	160	362	37	3.53	24.7	2180.1	390.43	0.1803
450	200	452	37	3.94	27.6	2725.1	488.03	0.1442
450	200	452	61	3.07	27.6	2729.1	488.03	0.1444

ALUMINIUM CLAD STEEL STRAND GB/T 1179-2008(JLB1A,JLB1B)
Nominal Area St	Code Number	Area	Number of Wires	Diameter		Linear Mass		Rated Strength		Max. D.C. Resistance at 20ºC
Nominal Area St	Code Number	Area	Number of Wires	Wire	Cond.	JLB1A	JLB1B	JLB1A	JLB1B	Max. D.C. Resistance at 20ºC
mm2		mm2		mm	mm	kg/km	kg/km	kN	kN	Ω/km
15	4	12	7	1.48	4.43	80.1	79.4	16.08	15.84	7.1592
20	6.3	18.9	7	1.85	5.56	126.2	125.0	25.33	24.95	4.5455
30	10	30	7	2.34	7.01	200.3	198.5	40.20	39.60	2.8637
35	12.5	37.5	7	2.61	7.84	250.4	248.1	50.25	49.50	2.2910
50	16	48	7	2.95	8.86	320.5	317.5	64.31	63.36	1.7898
75	25	75	7	3.69	11.08	500.7	496.2	93.75	99.00	1.1455
120	40	120	7	4.67	14.02	801.2	793.9	132.00	158.40	0.7159
120	40	120	19	2.84	14.18	805.0	797.7	160.80	158.40	0.7194
200	63	189	19	3.56	17.79	1267.9	1256.4	240.03	249.48	0.4568
300	100	300	19	3.21	22.49	2017.3	1999.0	402.00	396.00	0.2884
350	125	375	19	3.59	25.15	2521.7	2498.3	476.25	495.00	0.2307
450	150	480	19	4.06	28.45	3227.7	3198.3	580.80	633.60	0.1803
600	200	600	19	4.54	31.81	4034.7	3997.9	684.00	792.00	0.1442
600	200	600	19	3.54	31.85	4040.6	4003.8	762.00	792.00	0.1444

4.Our Certifications

5.Our company
*Henan Baofeng Cable Co., Ltd. is a professional cable & wire manufacturer which integrates R&D, production and sales together.
*Our products sales network has covered more than 20 provinces and municipalities in China. Most of products are sold to many countries for overseas marketing including the following areas like Philippines, Indonesia, Bangladesh, UK, Congo, Iran, Australia, Tanzania, USA, Madagascar, Pakistan, South Africa, Tunis, Dominica, Honduras, Guatemala, Iraq, Chile, Brazil, Peru etc.

6.Packing method

Why choose us?

*Free customized sample is available.

*OEM service available based on official & legal authorization.

*Strict quality control system, excellent quality with reasonable price.

*Rapid delivery and feedback, faster lead time than our competitors.

*Strong and professional R&D team to meet your specific needs.

*Appointed shipping company is accpetable.

We are China Overhead Ground Wire GB Standard 35sqmm Acs Aluminum Clad Steel Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
