Nyy, Nayy, N2xy, Na2xy, N2xry, Na2xry Power Cable
Nyy, Nayy, N2xy, Na2xy, N2xry, Na2xry Power Cable image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
1.Application
Power cable is used to transmit and distribute power for the power transmission and distribution system of 0.6-35KV. It is generally applied in the fields of power, construction, mine, metallurgy, petrochemical industry and communication. It completely replaces the oil immersed paper insulated power cable and partiallyreplaces the PVC insulated power cable.
2.Standard:
BS EN IEC , UL, TUV, KEMA, CE, BV, PSB, SABS, LLOYD’S, GL, NK, KR, ABS etc..
3.Specification
| Type | Name | Main Application | |
| Cu core | Al core | ||
| YJV YJY |
YJLV YJLV |
XLPE insulated, PVC or PE Sheathed Power Cable | For laying indoor, tunnel, channel and underground. Unable to bear external mechanical force, but bear the traction force during laid |
| YJV22 YJV22 |
YJLV22 YJV22 |
XLPE Insulated, Steel Tape Armored, PVC or PE Sheathed Power Cable | For laying indoor, tunnel, channel and underground. Able to bear external mechanical force, but unable to bear large pulling force |
| YJV32 YJV32 |
YJLV32 YJLV32 |
XLPE Insulated, Fine Steel Wire Armored, PVC or PE Sheathed Power Cable | For laying in shaft with large difference of level. Able to bear external mechanical force and moderate pulling force |
| YJV42 YJV42 | YJLV42 YJLV42 | XLPE Insulated, Thick Steel Wire Armored, PVC or PE Sheathed Power Cable | Able to bear positive pressure and pulling force |
Rated Voltage, Core and Range of Sectional Area
| Rated voltage (kv) Sectional area (mm2) No. of core |
1st class | 0.6/1 | 1.8/3 | 3.6/6 | 6/10 | 8.7/15 | 12/20 | 18/30 | 21/35 |
| 2nd class | 1/1 | 3/3 | 6/6 | 8.7/10 | 12/15 | 18/20 | – | 26/35 | |
| 1 Core | 1.5-800 | 25-800 | 25-1200 | 25-1200 | 35-1200 | 50-1200 | 50-1200 | 50-1200 | |
| 2 Core | 1.5-185 | 25-185 | |||||||
| 3 Core | 1.5-400 | 25-400 | 25-400 | 25-400 | 35-400 | 50-400 | 50-400 | 50-400 | |
| 4 Core | 2.5-400 | 25-400 | |||||||
| 5 Core | 2.5-400 | 25-400 |
Main Technical Quota
Conductor resistance of finished cable at 20ºC per kilometer is not more than the following values.
| Nominal section area (mm2) | 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800 |
| Copper core | 12.1 7.41 4.61 3.08 1.83 1.15 0.727 0.524 0.387 0.268 0.193 0.153 0.124 0.0991 0.0754 0.0601 0.0470 0.0366 0.0283 0.0221 |
| Aluminum core | 18.1 12.1 7.41 4.61 3.08 1.91 1.20 0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.778 0.0605 0.0469 0.0367 |
Voltage Test and Partial Discharge Test
| Rate voltage Uo (kv) Item |
0.6/1 | 1.8/3 | 3.6/6 | 6/6 6/10 | 8.7/10 8.7/15 | 12/20 | 18/20 18/30 | 21/35 | 26/35 | |
| Voltage | Test voltage | 3.5 | 6.5 | 12.5 | 21 | 30.5 | 42 | 63 | 73.5 | 91 |
| Test time | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| Partial discharge test | Test voltage | – | – | 6.2 | 10.4 | 15.1 | 20.8 | 31.1 | 36.3 | 45 |
| Discharge capacity | – | – | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
Packing
Packing in wooden drums,steel wooden drums or as customer’s requirement.
Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand “RNEDA” be given China famous brand.
Company Info.
Hebei Huatong Wires & Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians.
Huatong’s products which consist of 15 series of cables and tens of thousands of specifications are widely used in different key national projects and industries .Our products are well liked by domestic and international customers that they have been exported to various countries and areas including the US, Netherlands, Italy, Russia, UK, Australia, Ethiopia, Ghana, Congo, Middle East , and Southeast Asia.
FAQ
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week.
Contact us
Mr. Alan | Project Manager
Hebei Huatong Wires & Cables Group Co., Ltd.
Add:Huatong Avenue,Fengnan High and New-Tech Industrial Development Zone,Tangshan,,China.
Office Tel: 0086-371-86080580 | Cell Phone: 0086-13526822390
We are China Nyy, Nayy, N2xy, Na2xy, N2xry, Na2xry Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: Hebei Huatong Wires & Cables Group Co., Ltd., N2xry, N2xry Cable, N2xy, Na2xry Power Cable, Na2xy, Nayy, Nyy CableSimilar Or Related
-

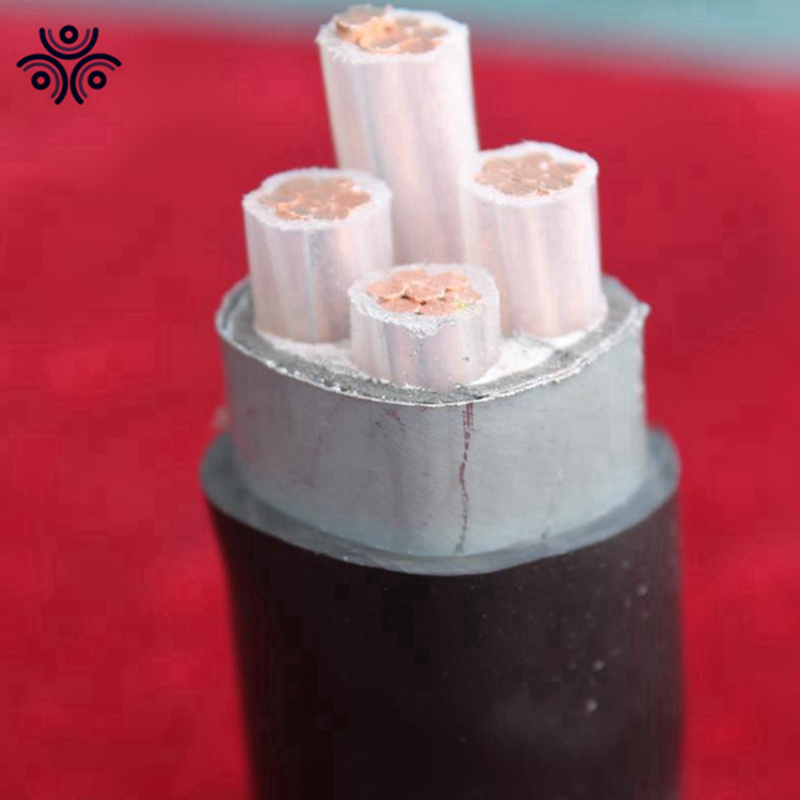

N2xy Low Voltage XLPE Insulation Electrical Power Cable
-
