Nshxafo 0.6/1kv 1.8/3kv 3.6/6kv Tinned Copper Epr LSZH High Flexible Single Core Rubber Power Cable

Nshxafo 0.6/1kv 1.8/3kv 3.6/6kv Tinned Copper Epr LSZH High Flexible Single Core Rubber Power Cable image

Get Latest Price Request a quote

Product Details

Model NO.

NSHXAFO

Current

DC & AC

Insulation Material

Rubber

Sheath Material

Rubber

Material Shape

Round Wire

Wire Core Material

Bare Copper Wire

Certification

ISO, CE, VDE

Model

Ycw

Brand

Huadong

Product Name

Nshxafo Cable

Core

Single Core

Standard

VDE

Rated Voltage

0.6/1,1.8/3,3.6/6 Kv

MOQ

100m

Transport Package

by Wooden Drum

Specification

by meters

Trademark

huadong

Origin

China

HS Code

8544492100

Production Capacity

15 Million Km

Product Description

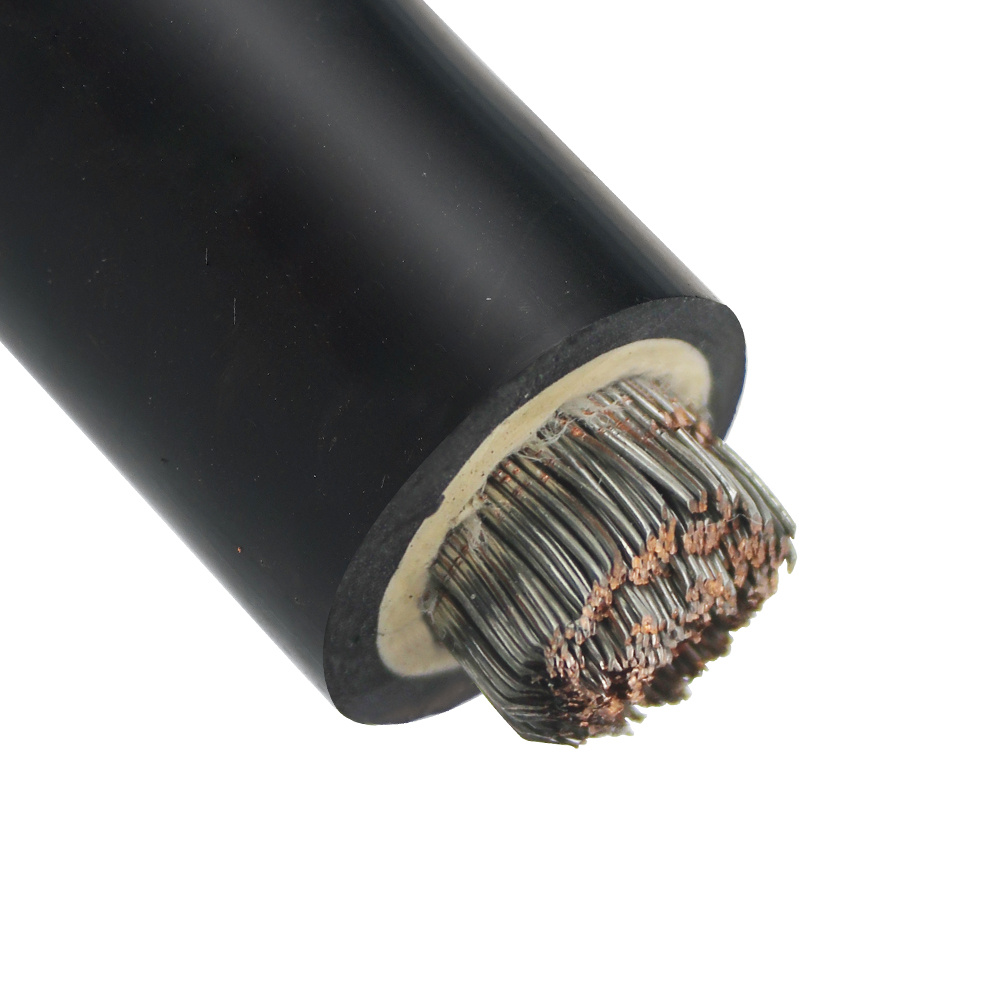

NSHXAFÖ 0.6/1kV Rubber Cable

Application:
Highly flexible power cables recommended to be used, onboard of trains, underground coaches and trams. The cables insulation and sheathing materials are low smoke zero halogen and are suitable for installations where fire, smoke emission and toxic fumes create a potential hazard. This cable is also flame retardant and oil resistan

Characteristics

Voltage Rating Uo/U0.6/1,1.8/3,3.6/6 kV

Temperature Rating

Operating temperature: -25°C to +90C

Fixed Installation: -40°C to +90C

Construction:

Conductor Class 5 flexible stranded tinned copper conductor

Insulation EPR (Ethylene Propylene Rubber) Type 3GI3

Sheath LSZH (Low Smoke Zero Halogen)

Standards:

VDE 0250 P606, IEC 60228, HD 383, DIN VDE 0207 P20,

Low Smoke Zero Halogen to: IEC 60754-1/2, IEC 61034-2

Flame Retardant: IEC 60332-1-2UV Resistant, Ozone resistant EN 50396

Water Resistant to AD5Oil-resistant acc. to IEC 60811-404

Dimensions and Weight

Conductor cross-section (mm2)	Outer diameter [mm]	Copper index (kg/km)	Weight (kg/km)
1.5	7	14.4	60
2.5	7.5	24	70
4	9	38.4	90
6	9.5	57.6	120
10	11	96	180
16	13	153.6	250
25	15	240	390
35	16.5	336	470
50	18	480	625
70	20.5	672	880
95	24	912	1190
120	26	1152	1430
150	28	1440	1750
185	31	1776	2160
240	34.5	2304	2718
300	38	2880	3470
