NHXMH-J/O 3×1 3×1.5 3×2.5 mm2 Low Smkoe Halgon Free Flame Retardant Power Cable
Application
These cables are intended for fixed installation in dry and moist rooms as well as in masonry and concrete, in and under plaster; not for underground installation. For installations where fire, smoke emission and toxic fumes create a potential risk to life and equipment.
Cable Construction
Conductor 1.5mm2 to 10mm2 : Class 1 solid Copper
16mm2 to 25mm2 : Class 2 stranded Copper
Insulation XLPE (Cross-Linked Polyethylene) Type 2XI1
Filler Halogen-free compound
Sheath Halogen-free thermoplastic polymer compound Type HM2
Voltage Rating (Uo/U)
| Item description | Filling compound | AWG (approx.) | Outer Ø mm (approx.) | Cu factor per km |
| NHXMH-O grey 1 x 1.5 re mm | 16 | 5.0 – 8.4 | 15 | 49 |
| NHXMH-O grey 2 x 1.5 re mm | 16 | 7.6 – 9.2 | 29 | 110 |
| NHXMH-O grey 1 x 2.5 re mm | 14 | 5.4 – 8.8 | 24 | 60 |
| NHXMH-O grey 2 x 2.5 re mm | 14 | 8.4 – 10.1 | 48 | 136 |
| NHXMH-O grey 1 x 4 re mm | 12 | 6.0 – 9.5 | 39 | 80 |
| NHXMH-O grey 2 x 4 re mm | 12 | 9.6 – 11.6 | 77 | 202 |
| NHXMH-O grey 1 x 6 re mm | 10 | 6.4 – 10.0 | 58 | 111 |
| NHXMH-O grey 1 x 10 re mm | 8 | 7.4 – 11.3 | 96 | 160 |
| NHXMH-O grey 1 x 16 rm mm | 6 | 8.5 – 12.4 | 154 | 232 |
| NHXMH-J grey 3 G 1.5 re mm | 16 | 8.0 – 9.6 | 43 | 130 |
| NHXMH-J grey 4 G 1.5 re mm | 16 | 8.5 – 10.3 | 58 | 151 |
| NHXMH-J grey 5 G 1.5 re mm | 16 | 9.1 – 11.0 | 72 | 177 |
| NHXMH-J grey 7 G 1.5 re mm | 16 | 9.9 – 11.9 | 101 | 209 |
| NHXMH-J grey 3 G 2.5 re mm | 14 | 8.7 – 10.6 | 72 | 163 |
| NHXMH-J grey 4 G 2.5 re mm | 14 | 9.5 – 11.5 | 96 | 200 |
| NHXMH-J grey 5 G 2.5 re mm | 14 | 10.4 – 12.3 | 120 | 238 |
| NHXMH-J grey 7 G 2.5 re mm | 14 | 11.4 – 13.8 | 168 | 300 |
| NHXMH-J grey 1 G 4 re mm | 12 | 6.0 – 9.5 | 39 | 80 |
| NHXMH-J grey 3 G 4 re mm | 12 | 10.1 – 12.2 | 115 | 235 |
| NHXMH-J grey 4 G 4 re mm | 12 | 11.3 – 13.7 | 154 | 300 |
| NHXMH-J grey 5 G 4 re mm | 12 | 12.5 – 15.1 | 192 | 345 |
| NHXMH-J grey 1 G 6 re mm | 10 | 6.4 – 10.0 | 58 | 111 |
| NHXMH-J grey 3 G 6 re mm | 10 | 11.5 – 13.9 | 173 | 323 |
| NHXMH-J grey 4 G 6 re mm | 10 | 12.7 – 15.3 | 230 | 400 |
| NHXMH-J grey 5 G 6 re mm | 10 | 13.7 – 16.6 | 288 | 475 |
| NHXMH-J grey 1 G 10 re mm | 8 | 7.4 – 11.3 | 96 | 160 |
| NHXMH-J grey 3 G 10 re mm | 8 | 13.8 – 16.7 | 288 | 485 |
| NHXMH-J grey 4 G 10 re mm | 8 | 15.1 – 18.2 | 384 | 603 |
| NHXMH-J grey 5 G 10 re mm | 8 | 16.3 – 19.7 | 480 | 720 |
| NHXMH-J grey 1 G 16 rm mm | 6 | 8.5 – 12.4 | 154 | 232 |
| NHXMH-J grey 3 G 16 rm mm | 6 | 16.5 – 20.0 | 461 | 850 |
| NHXMH-J grey 4 G 16 rm mm | 6 | 18.0 – 21.8 | 615 | 940 |
| NHXMH-J grey 5 G 16 rm mm | 6 | 19.7 – 23.8 | 768 | 1142 |
| NHXMH-J grey 3 G 25 rm mm | 4 | 20.4 – 24.6 | 720 | 1152 |
| NHXMH-J grey 4 G 25 rm mm | 4 | 22.6 – 27.3 | 960 | 1432 |
| NHXMH-J grey 5 G 25 rm mm | 4 | 24.7 – 29.8 | 1200 | 1800 |
| NHXMH-J grey 3 G 35 rm mm | 2 | 22.7 – 27.4 | 1008 | 1503 |
| NHXMH-J grey 4 G 35 rm mm | 2 | 24.9 – 30.0 | 1344 | 1930 |
| NHXMH-J grey 5 G 35 rm mm | 2 | 27.5 – 33.2 | 1680 | 2490 |
Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters, With Advanced 20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers.We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane Cables and Other Special Use Cables
1.HOW CAN I GET A QUOTATION?
Pls send your inquiry to us with cable details,our sales manager will send you quotation within 12 hours
2.WHETHER THESE PRODUCTS QUALITY ASSURED?
Most of cables are certificated. Also,we have strict QC, all products are 100%testedbefore delivery. Quality is assured.
3.CAN YOU SEND A SAMPLE FOR US TO TEST?
If we have inventory and total amount is small, it’s free.
4.WAHT’S YOUR PAYMENT TERMS?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
We are China Nhxmh-J/O 3X1 3X1.5 3X2.5 mm2 3G1.5 3G2.5 Low Smkoe Halgon Free Flame Retardant Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: Electric Cable, Henan Huadong Cable Co., Ltd., Power CableSimilar Or Related
-

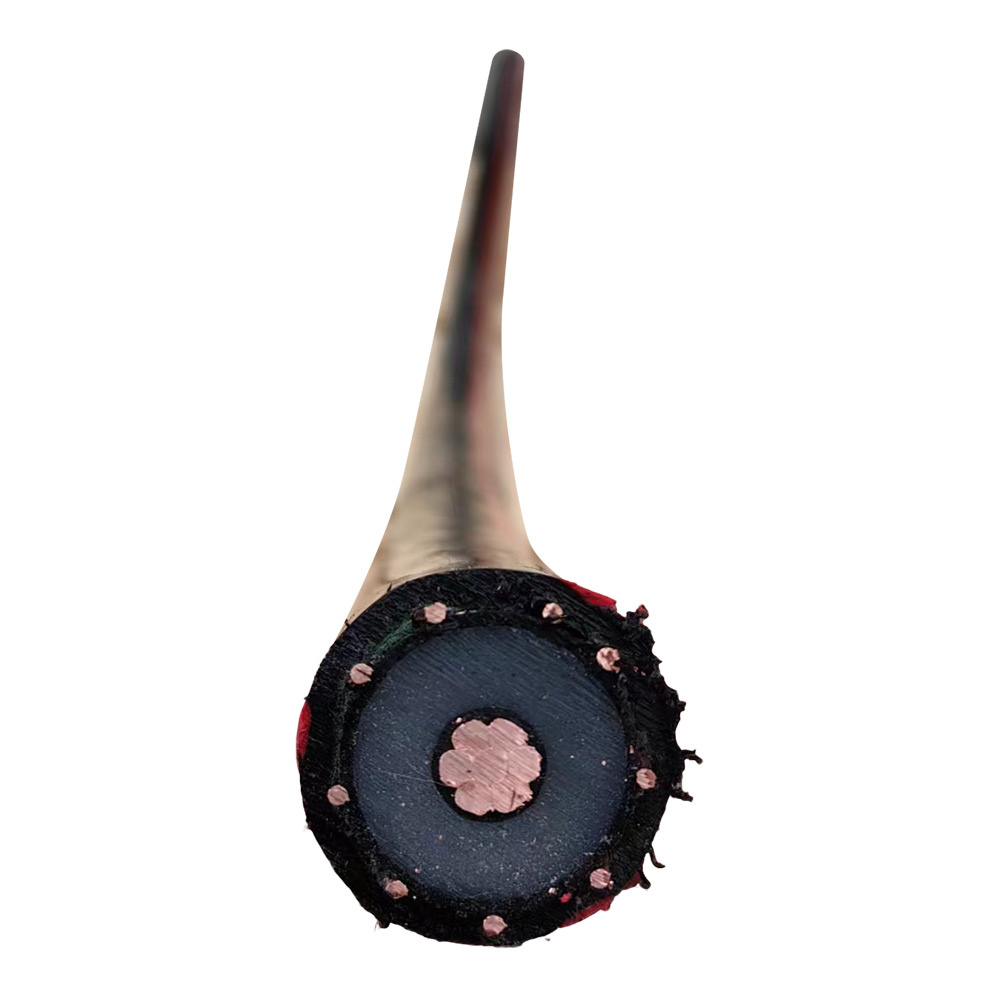

15kv 25kv 35kv 1/0AWG 2/0AWG 3/0AWG 4/0AWG Power Medium Voltage Cable
-

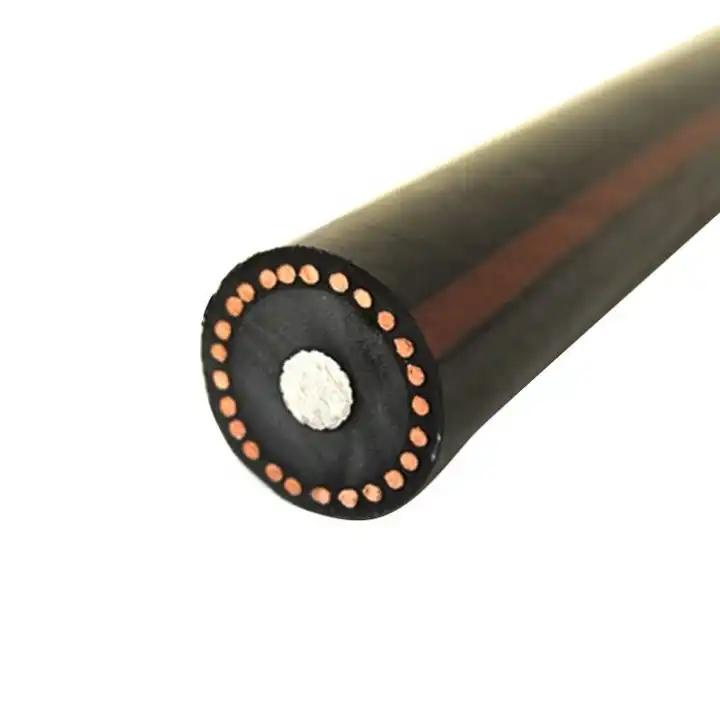

Industrial Mv-105 Power Medium Voltage Cable
-
