NTMCWOEU Flexible Medium Voltage Single Core Rubber Cable
Application:These cables are used for connection in switch-gear and for connection of mobile transformer substations to the overhead line.
Dimensions and Weight
6/10kV
| Number of Cores×Nominal Cross Section | Insulation Thickness | Thickness of Outer Sheath | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| No. ×mm^2 | mm | mm | mm | kg/km |
| 1×16/16 | 3.4 | 2.2 | 22.0 | 760 |
| 1×25/16 | 3.4 | 2.2 | 23.5 | 910 |
| 1×35/16 | 3.4 | 2.2 | 24.5 | 1040 |
| 1×50/16 | 3.4 | 2.2 | 27.0 | 1260 |
| 1×70/16 | 3.4 | 2.5 | 28.5 | 1530 |
| 1×95/16 | 3.4 | 2.5 | 30.5 | 1770 |
| 1×120/16 | 3.4 | 2.5 | 33.5 | 2180 |
| 1×150/25 | 3.4 | 3.0 | 35.0 | 2550 |
| 1×185/25 | 3.4 | 3.0 | 37.0 | 2900 |
| 1×240/25 | 3.4 | 3.5 | 41.0 | 3590 |
| 1×300/25 | 3.4 | 3.5 | 43.0 | 4280 |
| 1×400/35 | 3.4 | 4.0 | 46.0 | 5120 |
| 1×500/35 | 3.4 | 4.0 | 49.0 | 5950 |
| 1×630/35 | 3.4 | 4.0 | 53.5 | 7860 |
12/20kV
| Number of Cores×Nominal Cross Section | Insulation Thickness | Thickness of Outer Sheath | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| No. ×mm^2 | mm | mm | mm | kg/km |
| 1×25/16 | 5.5 | 2.5 | 28.0 | 1180 |
| 1×35/16 | 5.5 | 2.5 | 29.5 | 1320 |
| 1×50/16 | 5.5 | 2.5 | 31.5 | 1560 |
| 1×70/16 | 5.5 | 3.0 | 34.0 | 1920 |
| 1×95/16 | 5.5 | 3.0 | 36.0 | 2190 |
| 1×120/16 | 5.5 | 3.0 | 38.0 | 2460 |
| 1×150/25 | 5.5 | 3.5 | 40.0 | 2990 |
| 1×185/25 | 5.5 | 3.5 | 42.0 | 3350 |
| 1×240/25 | 5.5 | 3.5 | 45.0 | 3990 |
| 1×300/25 | 5.5 | 3.5 | 48.0 | 4760 |
| 1×400/35 | 5.5 | 4.0 | 52.0 | 6100 |
| 1×500/35 | 5.5 | 4.0 | 56.0 | 7010 |
| 1×630/35 | 5.5 | 4.0 | 60.0 | 8180 |
14/25kV
| Number of Cores×Nominal Cross Section | Insulation Thickness | Thickness of Outer Sheath | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| No. ×mm^2 | mm | mm | mm | kg/km |
| 1×25/16 | 6.8 | 3.0 | 30.5 | 1300 |
| 1×300/25 | 6.8 | 4.0 | 49.0 | 4900 |
18/30kV
| Number of Cores×Nominal Cross Section | Insulation Thickness | Thickness of Outer Sheath | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| No. ×mm^2 | mm | mm | mm | kg/km |
| 1×50/16 |
8.0 |
3.0 | 35.0 | 1870 |
20/35 kV
| Number of Cores×Nominal Cross Section | Insulation Thickness | Thickness of Outer Sheath | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| No. ×mm^2 | mm | mm | mm | kg/km |
| 1×95/16 | 9.5 | 3.5 | 44.0 | 2900 |
| 1×150/25 | 9.5 | 3.5 | 46.3 | 3600 |
| 1×240/25 | 9.5 | 4.0 | 51.7 | 5000 |
1.You are manufacturer or trader ?
We are a professional cable&wire manufacturer with more than 20 years experience.Our factory located in jiaozuo city,henan province,china.
2.How can I get the quotation of the products ?
Pls send inquiry to us,we will reply you within 12 hours.
3.What does your company do regarding quality control?
1) All raw materials we selected are the highest quality.
2) Professional and skillful workers care every details in handling the producing.
3) Quality control department is specially responsible for quality checking in each process.
4.Do you provide OEM project service?
Yes,OEM & ODM order is warmly welcomed.
Our technical engineers can give you the professional suggestions.
5.Can I get the sample?
Yes,pls send inquiry to us,then our sales manager will arrange the samples for you.
We are China (N) Tmcgewou Ntmcgewou 12/20kv 14/25kv 18/30kv Single Core Medium Voltage (MV) Flexible Rubber Mining Equipment Power Cables manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: Flexible Rubber Cable, Henan Huadong Cable Co., Ltd., Rubber CableSimilar Or Related
-

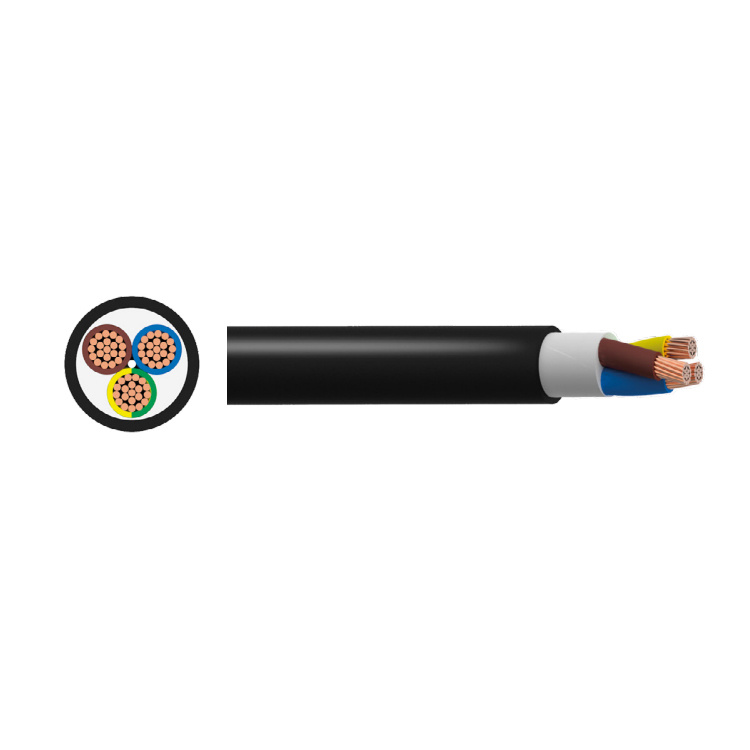

(N) Shou Nshou O/J 0.6/1kv Flexible Rubber Sheathed Cable
-

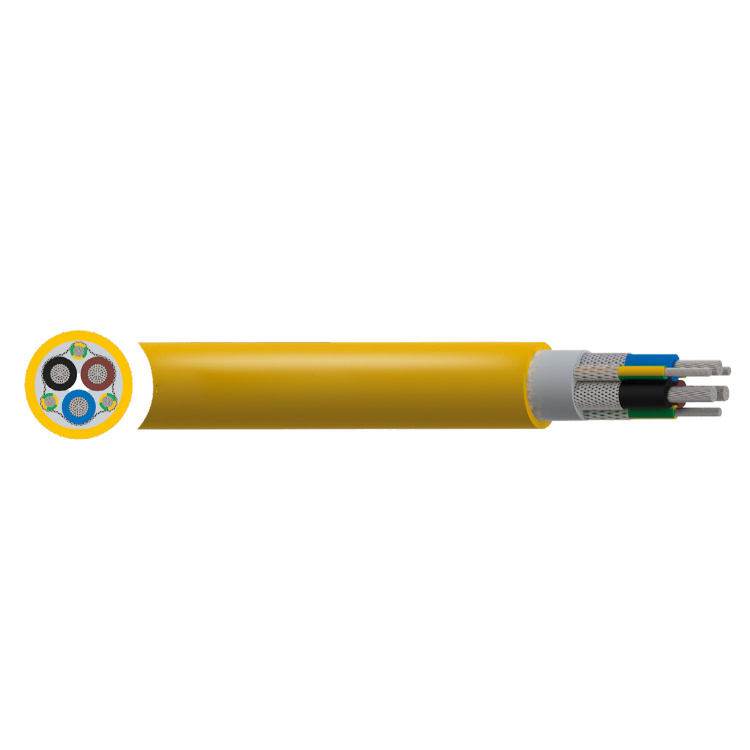

Nsschou-J 0.6/1kv Heavy Duty Tough Rubber Flexible Tcwb (Tinned Copper Wire Braid) Screened Cable
-

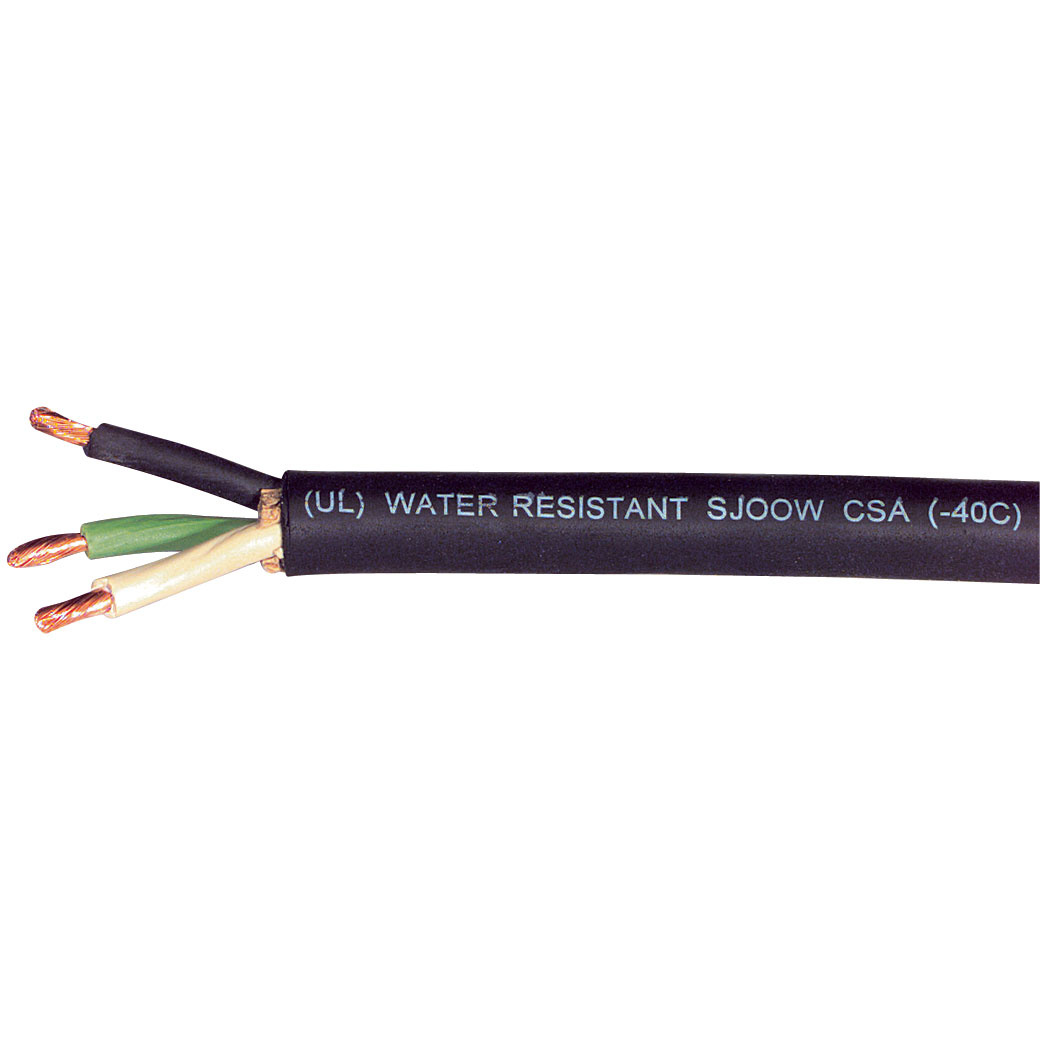

UL 62 Certified 14/2 12/3 10/4 So Soo Soow Sow Sj Sjo Sjoo Sjow Sjoow Sjeoow Flexible Rubber Portable Cord Cable
-

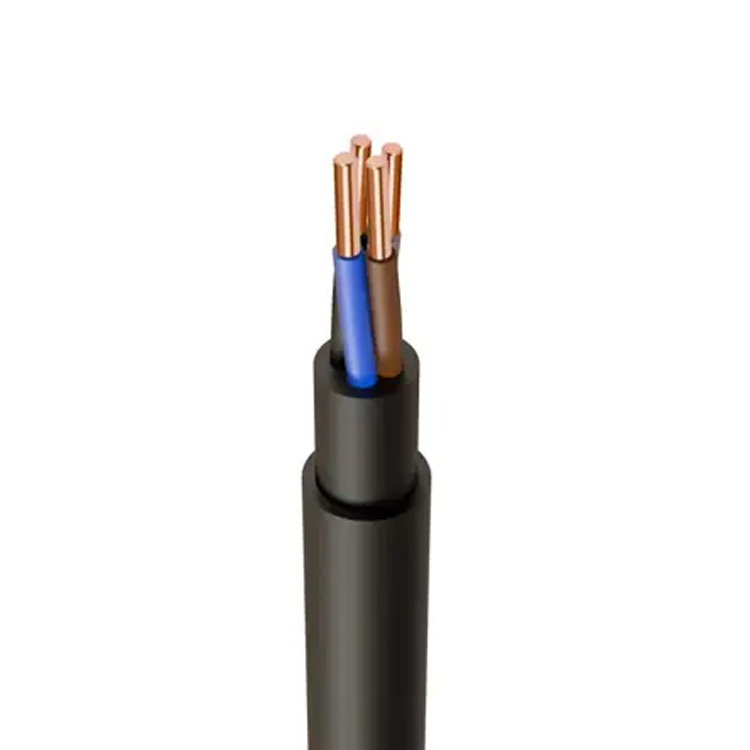

New Material Fg7r/Fg7or 0.6/1kv Hepr-PVC Flexible Cu/Hepr/PVC Rubber Power Cable
-

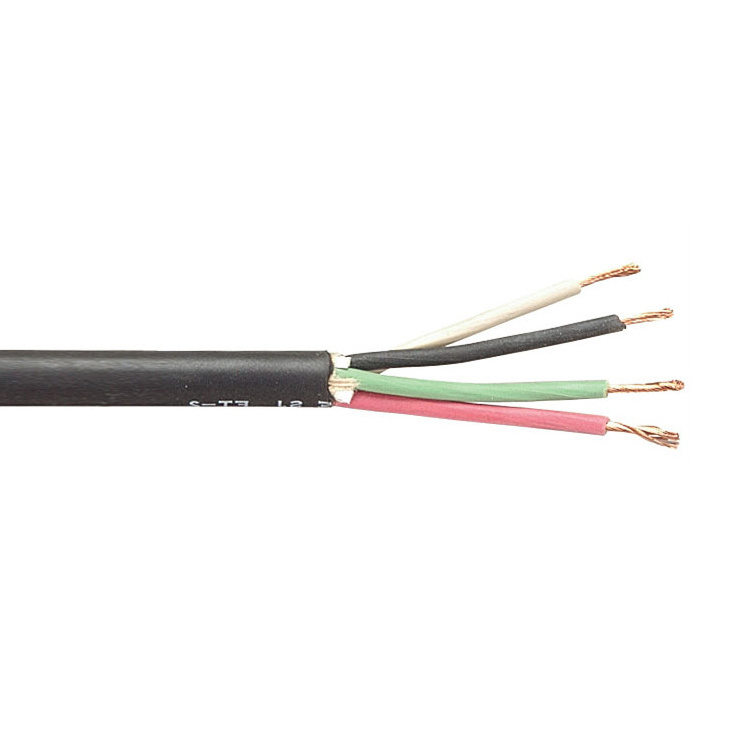

UL62 Listed 300V 18/3 18/4 Sv Svo Svoo Service Portable Cord Power Cables
