Mc Armored 2/2 12/3 14/2 14/3 Flexible Metal Clad Cable

Mc Armored 2/2 12/3 14/2 14/3 Flexible Metal Clad Cable image

Get Latest Price Request a quote

Product Details

Current

AC Cable

Insulation Material

XLPE

Sheath Material

PVC

Material Shape

Round Wire

Wire Core Material

Copper or AA-8330 Aluminum Alloy Conductor

Certification

ISO, CCC, CE

Model

Mc Cable

Brand

Ren Da

Product Name

Mc Cable

Rate Voltage

600V

Conductor

8000 Series Aluminum Alloy Conductors

Insulated

Cross-Linked Polyethylene Xhhw-2 or Thhn/Thwn-2

Armour

Aluminum Interlocked Armor

Standards

UL 44, UL 1569 for Type Mc Icea S – 95-658

Temperature Range

90 C in Wet and Dry Locations

Cores

3+1 or 4+1

Transport Package

Standard Export Drum

Specification

6awg 4awg 2awg 1awg 1/0awg 2/0awg 3/0awg 900kcmil

Trademark

REN DA

Origin

Hebei Province, China

HS Code

8544492100

Production Capacity

500km/Month

Product Description

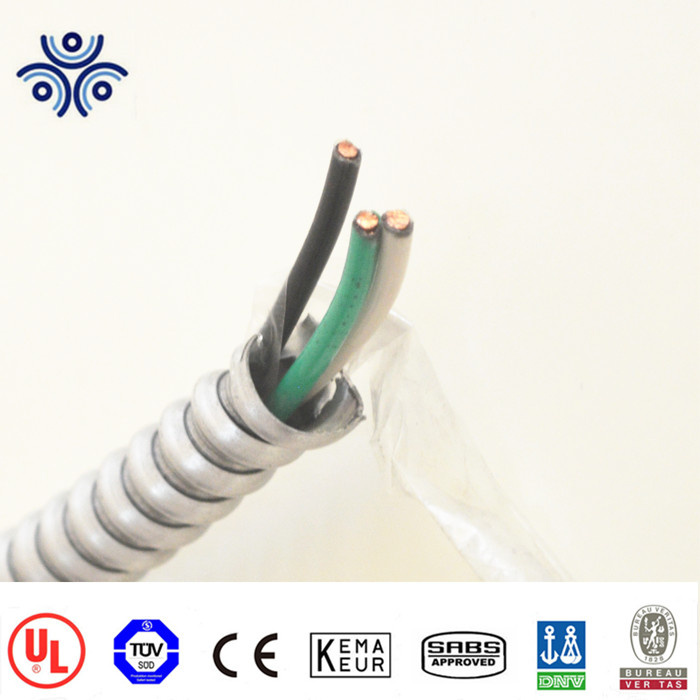

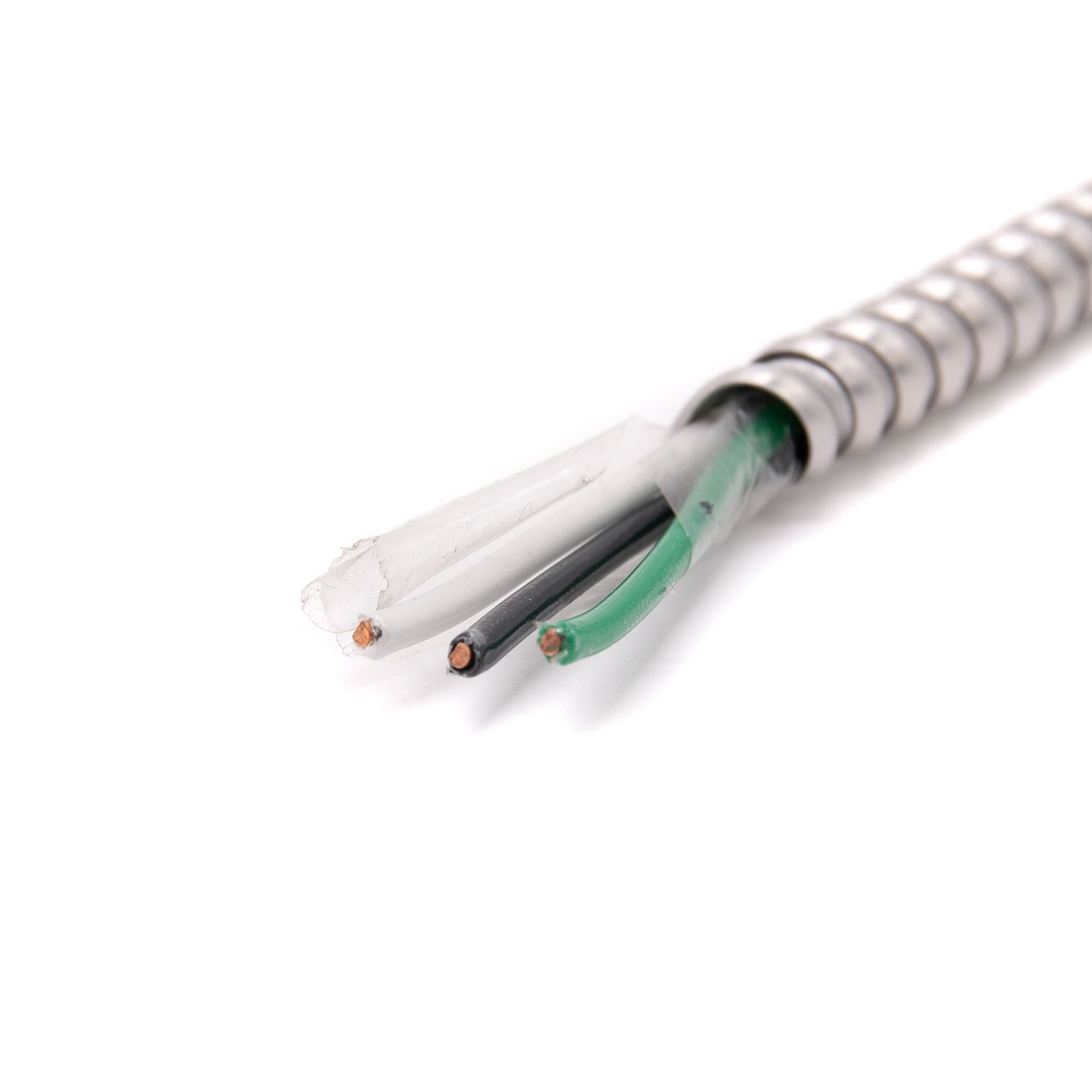

Type 12-Gauge 2 Conductors MC Solid Metal Clad Cable with Aluminum Armor and Green Insulated Ground Wire

HUA TONG Type MC cable can be used for feeder and branch circuit line as specified in NEC.The insulation wire core of type MC cable is XHHW-2, it can be used in dry and wet locations with the highest working temperature not exceed 90. The rated voltage of type MC cable is 600V. The cable consists three or four xlpe insulated phase cores plus one bare ground conductor. Interlocked-aluminum armour tape is applied overall the cable. PVC jacked is optional. MC cable with PVC jacket provides extra durability.long-term reliability and installation security.

Standard:

ASTM-B,B-801 and B-836

UL standard 44 for XHHW-2

UL Standard 1569

RoHS environmental conductive requirement

Product charactors:

Conductor: AA-8030 aluminum alloy conductors

Insulation: Cross-linked polyethylene(XLPE) insulation

Armor:Interlock aluminum tape armor

Temperature Range: Temperature of 90 C in wet and dry locations

Environmental: Free of harmful heavy metals in compliance with RoHS

Voltage Rating:600Volt

Specifications:

The AA-8000 aluminum alloy conductor is applied in Type MC cable. Its insulated core is complied to the requirement of Type XHHW-2 in UL44. Insulation material is cross-linked polyethylene(XLPE) with characteristics property,which can meet the FT2 level combustion test requirement.

MC cable, USA, UL & NEC standard, armored cable, metal clad cable, AC cable, BX cable, TECK cable, interlocked armored cable.

Armor	Interlocked Aluminum Strip
Inner Conductor	Solid/ Stranded Copper
Conductor Insulation	THHN/ THWN OR XHHW-2
Assembly Covering	Polypropylene Tape
Temperature Rating	≤ 90 (dry); ≤ 75 (wet)
Grounding	Insulated Green Grounding Conductor
Voltage Rating	600V

Technical sheet:

We are China Mc Armored 2/2 12/3 14/2 14/3 Flexible Metal Clad Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
