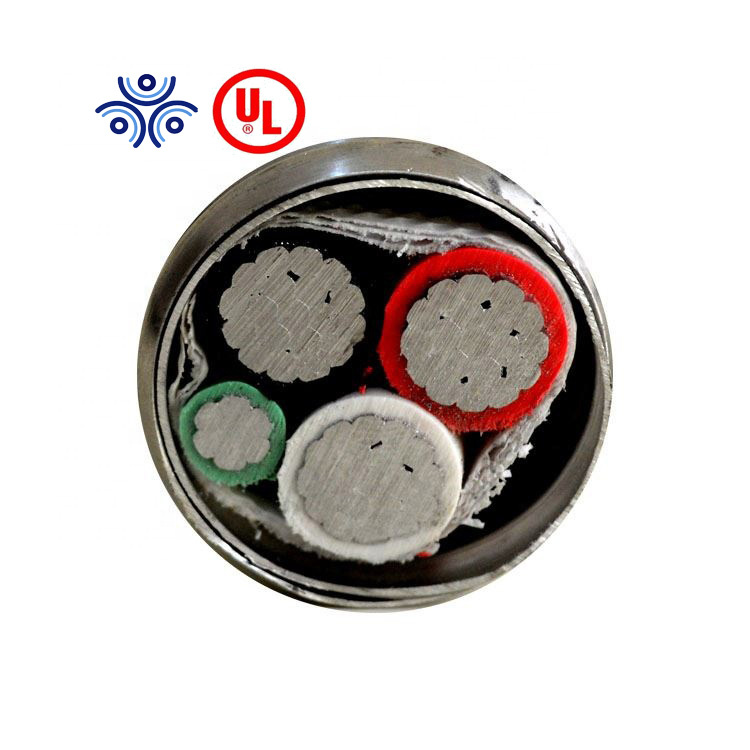

Mc 12/2 AC Metal Clade Armoured Ht Cables House Building Wire

Mc 12/2 AC Metal Clade Armoured Ht Cables House Building Wire image

Get Latest Price Request a quote

Product Details

Model NO.

Current

DC & AC

Insulation Material

PVC

Sheath Material

Aluminum Alloy Tape

Material Shape

Round Wire

Wire Core Material

Red Copper Wire

Certification

ISO, CCC, CE, RoHS

Model

Type Mc

Brand

Rneda

Number of Core

1.2.3.4

Standard

UL1569

Conductor Type

Thhn

Characteristic

Risistant Oils, Acids, Alkalin

Jack

Aluminum Alloy Interlocked Armor

Transport Package

Steel-Wooden Drum, Steel Drum

Specification

UL1569

Trademark

RNEDA

Origin

China

HS Code

8544492100

Production Capacity

1000m/Month

Packaging & Delivery

Package Size

114.00cm * 114.00cm * 120.00cm

Package Gross Weight

1500.000kg

Product Description

General description:

This category covers Type MC metal-clad cable. The cable is rated for use up to 2000 V, and certified in sizes 18 AWG through 2000 kcmil for copper, 12 AWG through 2000 kcmil for aluminum or copper-clad aluminum, and employs thermoset or thermoplastic insulated conductors. It is intended for installation in accordance with Article 330 ofANSI/NFPA 70, “National Electrical Code” (NEC).

Construction:
Conductor:copper
Insulation:XLPE
Wrap:Polyester
Armor:Aluminum tape interlocked or aluminum alloy tape interlocked.

Description of purpose:

MC cable is suitable for use as bellow:

1.Branch,feeder and service power distribution

2.Power,lighting,control and signal circuit.

3.Fished or embedded in plaster

Detailed products description:

1,UL standard:UL1569

2.MC cable(Metal clad)

3.specification:14awg-4/0awg

4.voltage rate:600v

MC cable, USA, UL & NEC standard, armored cable, metal clad cable, AC cable, BX cable, TECK cable, interlocked armored cable

Armor	Interlocked Aluminum Strip
Inner Conductor	Solid/ Stranded Copper
Conductor Insulation	THHN/ THWN OR XHHW-2
Assembly Covering	Polypropylene Tape
Temperature Rating	≤ 90 (dry); ≤ 75 (wet)
Grounding	Insulated Green Grounding Conductor
Voltage Rating	600V

We are China Mc 12/2 AC Metal Clade Armoured Ht Cables House Building Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
