LSVAV/LVAV Aluminium Conductor PVC Insulated PVC Sheath Steel Tape Armoured Power Cable
Application:
Distribution and signal power cable for static application, mostly in ground, but also within and outside facilities, in cable canals, in concrete. Used in electric power plants and other electric plants, in industry, metropolitan networks and for connection of signalling devices in industry, traffic and similar, where there is a possibility of fire (hospital, school, work place, shopping center, etc.). Resistant to mechanical loads, able to sustain heavier mechanical tensile strains, could be laid slantingly or vertically, same as on grounds exposed to land-sliding.
Construction:
Conductors: Al, class 1 or 2, according to EN 60228
Insulation: PVC
Bedding: Extruded elastomere or plastomere compound or plastic tape
Armour: two galvanized steel tapes (aluminium tapes for single-core cables)
Sheath: PVC Sheath
Industry: Building & Construction, Transmission, Distribution & Power Networks
Cable Parameters
|
Nominal cross-sectional area
|
Insulation thickness
|
Sheath thickness
|
Approx.overall
dimaeter of cable |
Approx. weight
of cable(kg/km) |
|
mm2
|
mm
|
mm
|
mm
|
|
|
4×1.5
|
0.7
|
1.8
|
11.7
|
117.3
|
|
4×2.5
|
0.7
|
1.8
|
12.7
|
140.3
|
|
4×4
|
0.7
|
1.8
|
14.2
|
176
|
|
4×6
|
0.7
|
1.8
|
15.6
|
215.9
|
|
4×10
|
0.7
|
1.8
|
18.2
|
289.7
|
|
4×16
|
0.7
|
1.8
|
20.8
|
393.4
|
|
4×25
|
0.9
|
1.8
|
24
|
552.6
|
|
4×35
|
0.9
|
1.8
|
26.5
|
697.9
|
|
4×50
|
1
|
1.8
|
29.7
|
889.6
|
|
4×70
|
1.1
|
2
|
34.8
|
1243.1
|
|
4×95
|
1.1
|
2.1
|
39.4
|
1642.8
|
|
4×120
|
1.2
|
2.3
|
44.1
|
2050.8
|
|
4×150
|
1.4
|
2.4
|
48.7
|
2521.3
|
|
4×185
|
1.6
|
2.6
|
54
|
3150
|
|
4×240
|
1.7
|
2.8
|
61.1
|
4014.8
|
|
4×300
|
1.8
|
3
|
66.7
|
4930.8
|
|
4×400
|
2
|
3.3
|
75.5
|
6401.7
|
1.You are manufacturer or trader ?
We are a professional cable&wire manufacturer with more than 20 years experience.Our factory located in jiaozuo city,henan province,china.
2.How can I get the quotation of the products ?
Pls send inquiry to us,we will reply you within 12 hours.
3.What does your company do regarding quality control?
1) all raw materials we selected are the highest quality.
2) professional and skillful workers care every details in handling the producing.
3) quality control department is specially responsible for quality checking in each process.
4.Do you provide OEM project service?
Yes,OEM & ODM order is warmly welcomed.
Our technical engineers can give you the professional suggestions.
5.Can I get the sample?
Yes,pls send inquiry to us,then our sales manager will arrange the samples for you.
We are China Lsvav/Lvav Aluminium Conductor PVC Insulated PVC Sheath Steel Tape Armoured Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: Henan Huadong Cable Co., Ltd., Power Cable, PVC CableSimilar Or Related
-

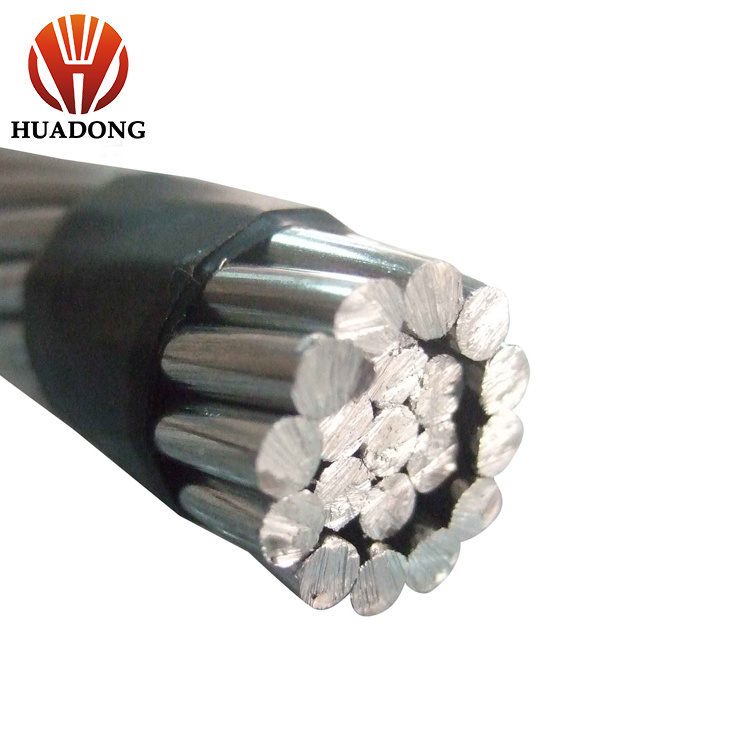

Factory Overhead Aluminum Akron Alton All Alloy Flint AAAC Cable Conductor Price
-

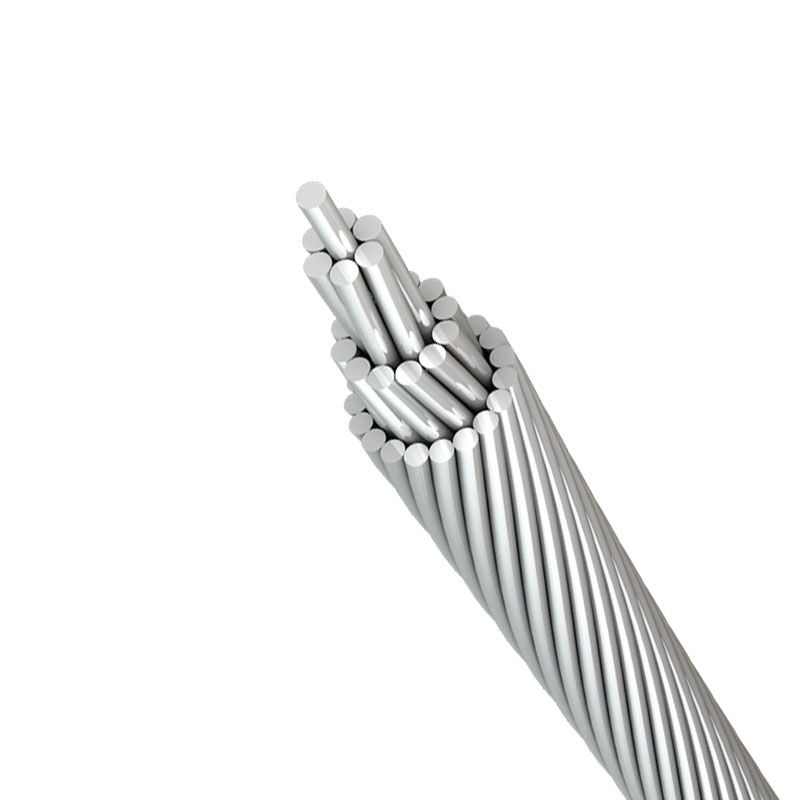

Upas Walnut Hv Cable 900 mm Bare Stranded 185mm2 35kv AAAC Conductor
-

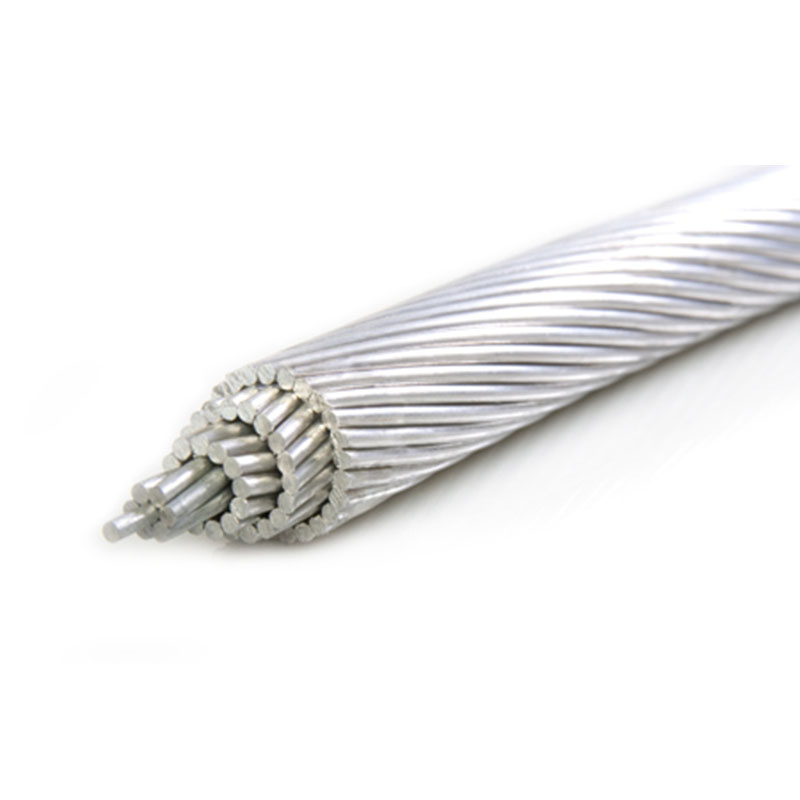

25 30 35 40 50 60 70 75 80 90 100 mm2 Weevil Overhead Cable
-

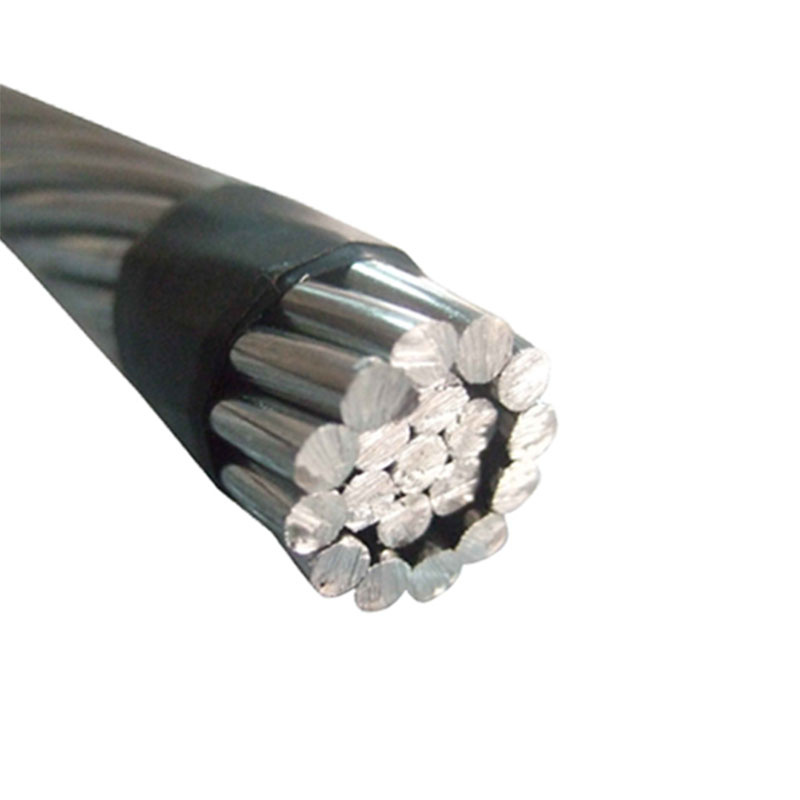

Factory Price ASTM Aluminum Darien Elgin Flint Grrenley AAAC High Voltage Conductor
-

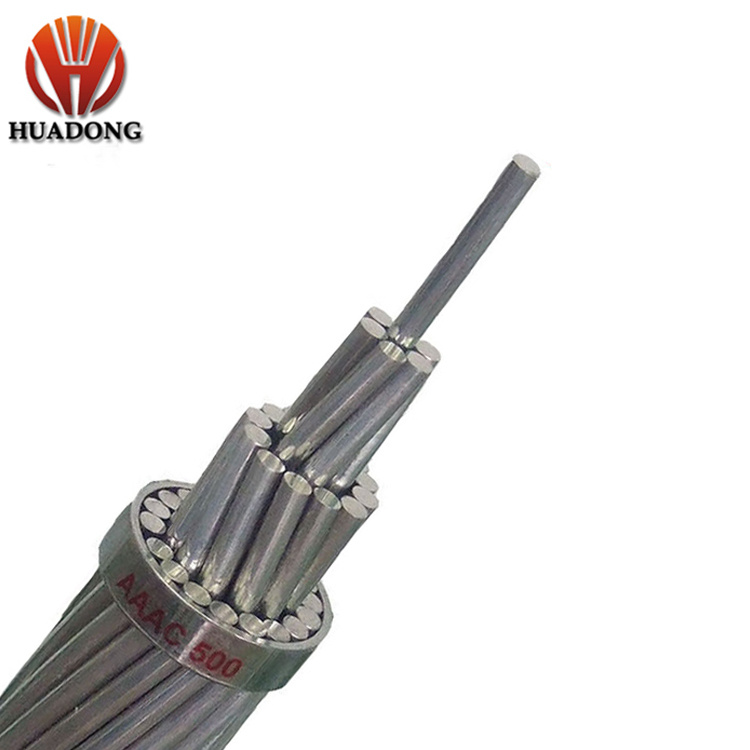

Hazel Pine (61089 IEC) 465mcm Conductor 185mm2 AAAC All Aluminum Alloy Cable
