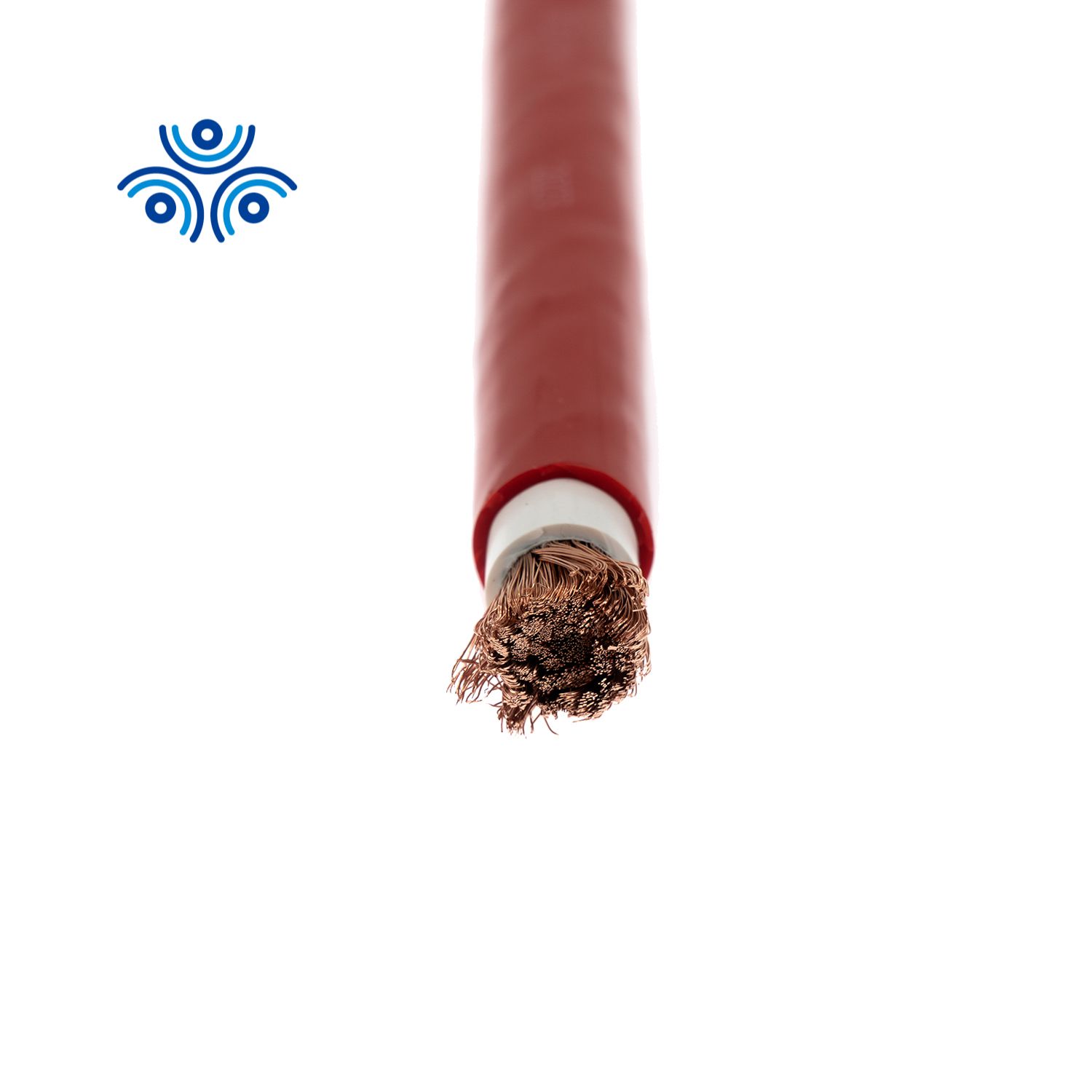

Low Voltage Electrical Cable Multi-Stranded Annealed Copper Welding Cable

Low Voltage Electrical Cable Multi-Stranded Annealed Copper Welding Cable image

Get Latest Price Request a quote

Product Details

Model NO.

Application

Overhead, Heating, Underground, Weld Machine

Conductor Material

Copper

Sheath Material

Rubber

Insulation Material

Rubber

Material Shape

Round Wire

Range of Application

Flame Retardant

Certification

ISO9001, CE, CCC, RoHS, VDE

Brand

Qif

Color

Black, Red

Jacket Layer

1&2

Laying Temperature

Not Be Lower Than-10c

Ambient Temperature

Not Be Lower Than-10c

Customized

Support

Conductor Grade

Flexible Copper

Transport Package

Plastic Film, Wooden Reel, Wooden Drum

Specification

10mm2-185mm2

Trademark

QIF

Origin

China

HS Code

8544609

Production Capacity

50000m/Month

Product Description

Application
Welding Cable is used for connections between the electrode holder and clamp, to the arc welder, bus, welding box or transformer. Recommended for use in industrial applications such as shipyards, mines and construction sites where resistance to extreme physical abuse and high flexibility are required.

Characteristics
Temperature Rating:
Fixed: -40°C to +85°C;
Flexed: -20°C to +85°C
Minimum Bending Radius: Flexed: 6 x overall diameter

Standard
IEC 60245-6: Rubber insulated cables – Rated voltages up to and including 450/750 V – Part 6: Arc welding electrode cables

TYPE

Type	Name	International Type	Working temperature of core ≤(ºC)
60245 IEC 81 YH	Natural rubber sheath for welding machine cable	H01N2-D Common flexible	65ºC
60245 IEC 82 YHF	Horoprene rubber or other synthetic rubber sheath welding machine cable	H01N2-E Extra flexible	65ºC

Nominal Section mm2	Structure of Conductor	Overall Diameter		Maximum DC Resistance at 20ºC Ω/km		Approx. Weight (KG/KM)
Nominal Section mm2	Core No./Dia.(mm)	Min. mm	Max. mm	Tinned Cu	Untinned Cu	YH	YHF
10	322/0.2	7.1	9.2	1.95	1.91	146	153.51
16	513/0.2	8.8	11	1.24	1.21	218.9	230.44
25	798/0.2	10.1	12.7	0.795	0.78	316.6	331.15
35	1121/0.2	11.4	14.2	0.565	0.554	426	439.87
50	1596/0.2	13.2	16.5	0.393	0.386	592.47	610.55
70	2214/0.2	15.3	19.2	0.277	0.272	790	817.52
95	2997/0.2	17.1	21.4	0.21	0.206	1066.17	1102.97
120	1702/0.3	19.2	23.5	0.164	0.161	1348.25	1392.55
150	2135/0.3	21.2	26.4	0.132	0.129	1687.5	1698.72
185	1443/0.4	22.2	28.3	0.108	0.106	1983.8	2020.74

How can I get some samples?

We provide free sample and will courier to you by DHL, FEDEX, UPS, TNT, etc. swiftly according to your requirements.

How do you control the quality?
QC department will control the quality during the full production process.
Inspector will inspect each item according to the order, inspection report will transfer to you before loading.
Any third party inspection will be accepted during the production or before loading, such as SGS, BV, etc.
After-sale dept will follow the order and pay high attention on the feedback from your side after all the products delivered. Any quality problem, we will arrange the technical personnel to solve and bear the corresponding customer losses..

What if the cable we need have some differences on specifications from yours?
Any differences, we can design and produce according to your requests.

What’s the package of the goods?
Usually wooden or steel drum or coil, or according to your requirement

What’s the lead time?
Usually 10-30 working days.

Welcome your inquiry and email soon……

We are China Low Voltage Electrical Cable Multi-Stranded Annealed Copper Welding Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
