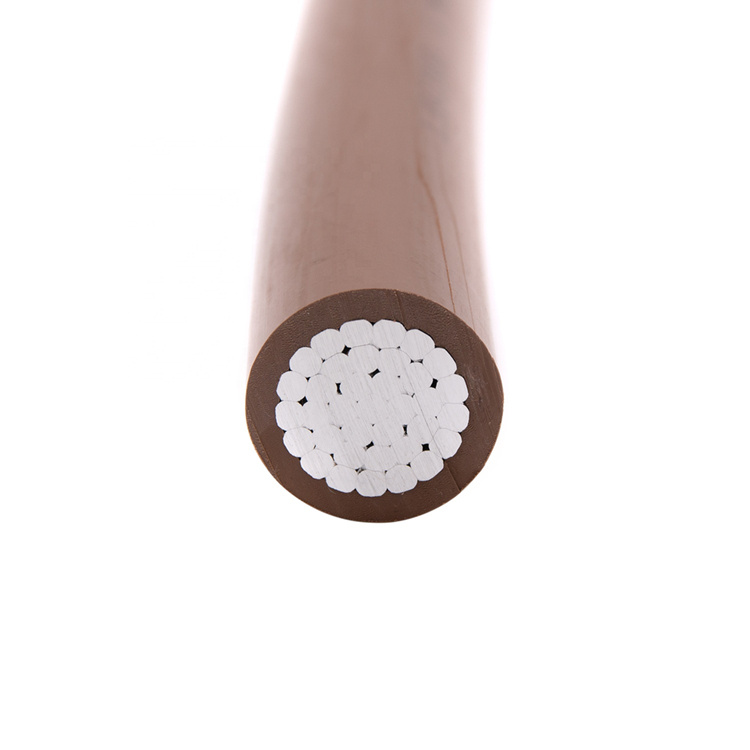

Structure

Voltage: 300/500V, 450/750V, 600/1000v

Conductor: Cu or Tinned copper (solid class1, stranded class2, flexible class5)

Insulation: PVC or XLPE

Shield Type (optional): Copper tape shielded (cts); Copper wire braided shielded (cws); Aluminum foil shielded

Armour Type: steel tape armoured (sta); steel wire armoured (swa)

Sheath: PVC or PE or LSZH

Standards: CCC/UL/CE/CNAS/IEC Certificate

*FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available.
*Customized products are supported

Characteristics

Temperature

XLPE Material:

Max. service temperature: 90 ºC

Min.temperature when installation: 0ºC

Max. short-circuit temperature: 250ºC (max. 5s)

Min. service temperature: -40ºC (fixed and protected installations)

PVC Material

Max. service temperature: 70 ºC

Min.temperature when installation: 0ºC

Max. short-circuit temperature: 160ºC (max. 5s)

Min. service temperature: -40ºC (fixed and protected installations)

Min.Bending Radius

Advantages

High Purity thick raw materials: 99.99% Copper/99.6% Aluminum Safety,low resistance,stable voltage,more power saving

Low eccentricity, uniform thickness: Prevent damage is guaranteed, effectively prevent the current breakdown, to ensure the safety of electricity

Safer use, Flame Retardant and environment friendly: All new and high quality sheath,Wear-resistant and oil-resistant, soft and easy to install

International standard meet different needs.

Our products are produced according to Chinese standards (GB/T, ISO9001) and international standards including IEC, BS, DIN, ICEA or according to customers’ requirements. It has also got CCC(China Compulsory Certification) and ISO certificates. Thus, the quality of each product could be guaranteed.

Specification

How can I get some samples?

We provide free sample and will courier to you by DHL, FEDEX, UPS, TNT, etc. swiftly according to your requirements.

How do you control the quality?
QC department will control the quality during the full production process.
Inspector will inspect each item according to the order, inspection report will transfer to you before loading.
Any third party inspection will be accepted during the production or before loading, such as SGS, BV, etc.
After-sale dept will follow the order and pay high attention on the feedback from your side after all the products delivered. Any quality problem, we will arrange the technical personnel to solve and bear the corresponding customer losses..

What if the cable we need have some differences on specifications from yours?
Any differences, we can design and produce according to your requests.

What’s the package of the goods?
Usually wooden or steel drum or coil, or according to your requirement

What’s the lead time?
Usually 10-30 working days.

Welcome your inquiry and email soon……
