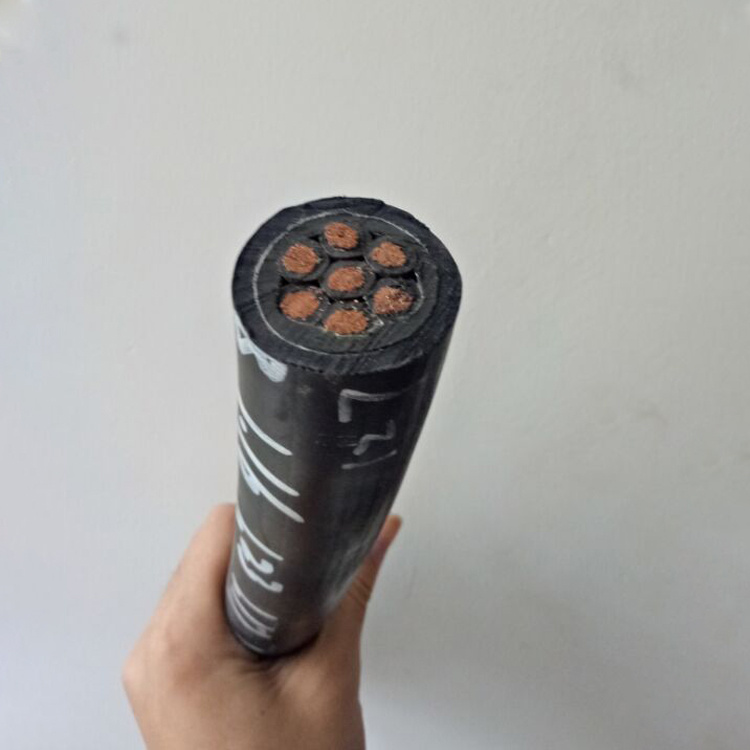

Japan Standard JIS C 3327 600V 2pnct 3pnct 1 2 3 4 5 Multi Cores Low Pressure Epr Insulated Rubber Cable
Japan Standard JIS C 3327 600V 2pnct 3pnct 1 2 3 4 5 Multi Cores Low Pressure Epr Insulated Rubber Cable image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
Japan Standard 600V 2PNCT 3PNCT Flat Round EP Insulated Festoon Lift System Flexible Rubber Cable
PNCT Rubber Cable Feature:1. Conductor: Class 5 flexible plain copper conductor
2. Insulation: EPR(Ethylene Propylene Rubber)
3. Sheath: PCP(Polychioroprene)
4. Cores: 2 3 4 5 Cores or Others
5. Voltage: 600V
6. Temperature Rating: conductor operation temperature -40°C to +80°C
7. Standards:Japan’s Electrical Appliance and Material Safety Act, JIS C 3327,Technical Standards for
Electrical Equipmen
PNCT Rubber Cable Application
Pnct cables are used for moving equipment like unloader ,stacker & reclaimer,gantry crane, container crane,overhead crane
Gantry crane, etc. Its characteristics include high tension ,impact resistance abrasion resistance ,bending resistance
Flame retardance ,weather resistance ect.
Product Parameters:
|
Number of
Cores |
Composition
|
Outer
Dia |
Thickness
of Insulation |
Thickness
of Sheath |
Sheath
Overall Dia |
Conductor
Resis (20 )(Max.) |
Insulation
Resist (20 )(Min.) |
Weight
|
|
core sq mm
|
Max./mm
|
mm
|
mm
|
mm
|
mm
|
Ω/km
|
Ω/km
|
kg/km
|
|
3 X 6
|
0.26
|
3.6
|
1.1
|
2.2
|
19
|
3.39
|
400
|
600
|
|
3 X 10
|
0.26
|
4.8
|
1.1
|
2.4
|
22
|
1.95
|
300
|
850
|
|
3 X 16
|
0.26
|
6
|
1.2
|
2.6
|
25
|
1.24
|
300
|
1,170
|
|
3 X 25
|
0.26
|
7.4
|
1.2
|
2.8
|
28
|
0.795
|
300
|
1,600
|
|
3 X 35
|
0.26
|
8.7
|
1.2
|
3
|
31
|
0.565
|
200
|
2,010
|
|
3 X 50
|
0.26
|
10.4
|
1.5
|
3.3
|
37
|
0.393
|
200
|
2,800
|
|
3 X 70
|
0.26
|
12.5
|
2
|
3.7
|
44
|
0.277
|
200
|
3,990
|
|
3 X 95
|
0.26
|
14.5
|
2
|
4
|
49
|
0.21
|
200
|
5,080
|
|
3 X 120
|
0.26
|
16.2
|
2
|
4.2
|
53
|
0.164
|
200
|
6,130
|
|
3 X 150
|
0.26
|
18.2
|
2
|
4.5
|
58
|
0.132
|
200
|
7,450
|
|
3 X 185
|
0.26
|
20.2
|
2.5
|
4.9
|
65
|
0.108
|
200
|
9,290
|
|
3 X 240
|
0.26
|
23.3
|
2.5
|
5.3
|
72
|
0.0817
|
200
|
11,810
|
|
3 X 300
|
0.26
|
26
|
2.5
|
5.7
|
78
|
0.0654
|
200
|
14,310
|
|
4 X 6
|
0.31
|
3.6
|
1.1
|
2.3
|
21
|
3.39
|
400
|
730
|
|
4 X 10
|
0.31
|
4.8
|
1.1
|
2.5
|
24
|
1.95
|
300
|
1,050
|
|
4 X 16
|
0.31
|
6
|
1.2
|
2.7
|
27
|
1.24
|
300
|
1,450
|
|
4 X 25
|
0.31
|
7.4
|
1.2
|
3
|
31
|
0.795
|
300
|
2,010
|
|
4 X 35
|
0.31
|
8.7
|
1.2
|
3.2
|
35
|
0.565
|
200
|
2,570
|
|
4 X 50
|
0.31
|
10.4
|
1.5
|
3.5
|
41
|
0.393
|
200
|
3,540
|
|
4 X 70
|
0.31
|
12.5
|
2
|
4
|
49
|
0.277
|
200
|
5,030
|
|
4 X 95
|
0.31
|
14.5
|
2
|
4.3
|
54
|
0.21
|
200
|
6,420
|
|
4 X 120
|
0.31
|
16.2
|
2
|
4.6
|
59
|
0.164
|
200
|
7,780
|
|
4 X 150
|
0.31
|
18.2
|
2
|
4.9
|
64
|
0.132
|
200
|
9,460
|
|
4 X 185
|
0.31
|
20.2
|
2.5
|
5.4
|
72
|
0.108
|
200
|
11,830
|
|
4 X 240
|
0.31
|
23.3
|
2.5
|
5.8
|
80
|
0.0817
|
200
|
15,060
|
|
4 X 300
|
0.31
|
26
|
2.5
|
6.3
|
88
|
0.0654
|
200
|
18,290
|
Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International
Trade,Founded i 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters, With Advanced
20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers
We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC
Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane And Other Special Use Cables.
We are China Japan Standard JIS C 3327 600V 2pnct 3pnct 1 2 3 4 5 Multi Cores Low Pressure Epr Insulated Rubber Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
