Insulated Aerial Bundled Cables as IEC 60502

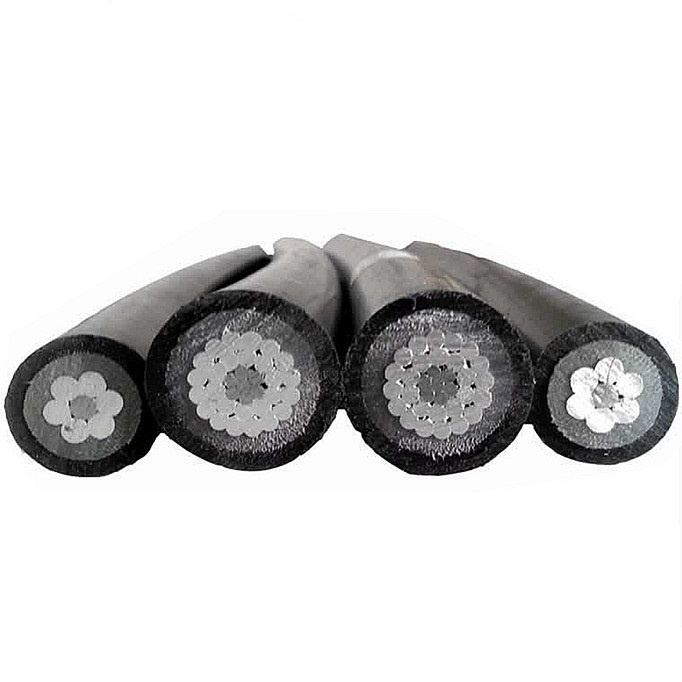

Insulated Aerial Bundled Cables as IEC 60502 image

Get Latest Price Request a quote

Product Details

Model NO.

ABC

Application

Overhead

Conductor Material

Aluminum

Sheath Material

Insulation Material

Material Shape

Round Wire

Range of Application

Power Transmission

Certification

ISO9001, CE, CCC, RoHS, VDE

Brand

QIFAN

Color of Insulation

Black

Armour

Screen

Leadtime

15days

Transport Package

Drums or Customized

Specification

as per requirements

Trademark

Qifan

Origin

China

HS Code

8544492100

Production Capacity

1000000000 Meters Per Year

Product Description

PE AND XLPE INSULATED AERIAL BUNDLE CABLES

The concept of insulated aerial cables was developed in the early 1960’sin Europe to provide a reliable, safe and economical alternative system of electrification.

The development was accelerated due to progress achieved in the field of synthetic insulating materials such as polyvinyl (PVC) and polyethylene (PE)Crosslinked polyethylene (XLPE) was later added to the list.

National standards from a few European countries have been issued specifically for insulated aerial cable employing designs from experiences and research. Although these are mainly for low voltage installation standards for high voltage cables have been derived from specifications such as lEC 60502 which incorporates several extruded dielectrics for cables up to 30 kV.

Aluminium and its alloys are used universally as conductors or neutral supports due to their inherent light weight, steel wires traditionally used in ACSR constructions are used as the supporting catenary especially for heavier medium to high voltage cables.

This cables permit longer spans, lower mounting, minimum support, and simplified installation, particularly among trees or in congested areas. lt also offers maximum personnel safety and protection against outage. Resistance to abrasion, flexing, and effects of heat, moisture, sunlight and cold assure high dependability through long years of services.

Cables without street lighting

Phase conductor

Norminal Cross-sectional Area	mm2	16 *	16 *	25	35	50	70	95	120	150	185
Number of Cores		1	3	3	3	3	3	3	3	3	3
Minimum number of wires		6	6	6	6	6	12	15	15	30	30
Norminal insulation thickness	mm	1.0	1.0	1.2	1.2	1.4	1.4	1.6	1.6	1.8	2.0
Diameter of insulated core	mm	6.8	6.8	8.5	9.5	11.2	13.0	15.1	16.6	18.4	20.6
Max. dc resistance at 20°C	Ohm/km	1.91	1.91	1.20	0.868	0.641	0.443	0.320	0.253	0.206	0.164
Current rating at still wind, ambient temperature = 30°C, conductor temperature = 75°C	%	61	61	84	104	129	167	209	246	283	332

Messenger conductor

Norminal Cross-sectional Area	mm2	25	25	25	25	35	50	70	70	95	120
Minimum number of wires		6	6	6	6	6	6	12	12	15	15
Norminal insulation thickness	mm	1.2	1.2	1.2	1.2	1.2	1.4	1.4	1.4	1.6	1.6
Diameter of insulated core	mm	8.5	8.5	8.5	8.5	9.5	11.2	13.1	13.1	15.1	16.6
Max. dc resistance at 20°C	SLQ/OQ	1.312	1.312	1.312	1.312	0.943	0.693	0.469	0.469	0.349	0.273
Calculated breaking load	O2	6.4	6.4	6.4	6.4	8.9	12.1	18.0	18.0	24.2	30.8

Completed cable

Approx. overall diameter	mm	15.3	19.0	23.2	25.6	30.0	34.9	40.6	44.1	49.2	54.9
Approx. weight of cable	Kg/km	160	290	400	500	680	920	1,270	1,510	1,870	2,340

We are China Insulated Aerial Bundled Cables as IEC 60502 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
