Huadong Cable Group 18/30(36)KV CU/XLPE/CTS/PVC/SWA/PVC YJV32 3*70MM2 3X70MM2 Power Cable
for energy networks where mechanical stresses are expected. Suitable for underground installation or in ducts
1. copper conductor
|
HIGH ELECTRICAL CONDUCTIVITY COPPER OR ALUMINIUM CONDUCTOR
Copper or aluminium stranded(Class 2) conductors according to lEC 60228
|
|
|
HIGH RESISTANCE PVC/XLPE INSULATION
Available with Cross-linked Polyethylene(XLPE)or Polyvinyl Chloride(PVC) insulation
|
|
|
UV RESISTANCE & FLAME RETARDANT PVC JACKET
Provided with flame retardant PVC jacket to pass flame propagation test to lEC60332-1
|
|
|
CUSTOMIZED DESIGNS
Available in Armoured/Non-armoured and Shielded/Non-shielded constructions
|
|
No. of Cores
|
Conduct Cross Section Area
|
Cable Cross Section Area
|
Actual Armour Cross Section Area
|
Overall Diameter
|
Nominal Weight
|
Resistance of Conductor at 20ºC
|
|
/
|
mm²
|
mm²
|
mm²
|
mm
|
kg/km
|
Ω/Km
|
|
3
|
10
|
298.5
|
39
|
19.5
|
866
|
1.83
|
|
3
|
16
|
366.25
|
45
|
21.6
|
1152
|
1.15
|
|
3
|
25
|
510.45
|
62
|
25.5
|
1800
|
0.727
|
|
3
|
35
|
615.44
|
68
|
28
|
2230
|
0.524
|
|
3
|
50
|
637.62
|
78
|
28.5
|
2490
|
0.387
|
|
3
|
70
|
813.92
|
90
|
32.2
|
3290
|
0.268
|
|
3
|
95
|
1074.67
|
128
|
37
|
4440
|
0.193
|
|
3
|
120
|
1281.25
|
141
|
40.4
|
5470
|
0.153
|
|
3
|
150
|
1625.15
|
201
|
45.5
|
6930
|
0.124
|
|
3
|
185
|
1946.83
|
220
|
49.8
|
8350
|
0.0991
|
|
3
|
240
|
2383.27
|
250
|
55.1
|
10400
|
0.0754
|
|
3
|
300
|
2844.87
|
269
|
60.2
|
12600
|
0.0601
|
|
3
|
400
|
3481.91
|
304
|
66.6
|
14600
|
0.047
|
Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International
Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters, With Advanced
20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers
We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC
Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane And Other Special Use Cables.
We are China Huadong Cable Group 18/30 (36) Kv Cu/XLPE/Cts/PVC/Swa/PVC Yjv32 3*70mm2 3X70mm2 Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: Electrical Cable, Henan Huadong Cable Co., Ltd., Power CableSimilar Or Related
-
Un-Insulated Overhead Aerial Bundled Cable AAC Cable All - Aluminium - Conductor Cable Wire
-

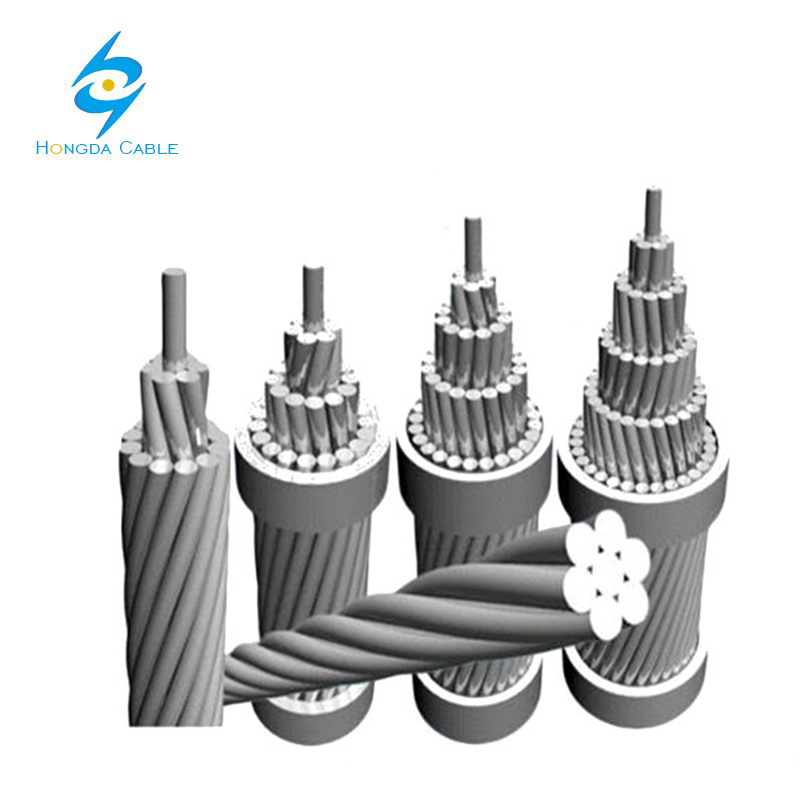

ACSR AAAC AAC Aluminum Conductor Overhead Cable 22mm 50mm2 120mm 200 mm2 240mm Overhead Lines Electrical Wire
-
