Product Details
Product Description
Flat/Round Submersible Water Pump Cable
Application of Submersible Water Pump Cable
This Submersible Water Pump cable is suitable for various types of the lead wire of submersible motor (lead from
underwater to above-water). This product can be equipped with a waterproof joint (it can be supplied completely
as request). The features of lead wire are convenient in use, good waterproof property. Even if it exists in external
damage, it can also guarantee the motor is not suffered from damage caused by water. This is a new type of
waterproof cable
Submersible Water Pump Rubber Cable Feature:
2. Insulation: EPR(Ethylene Propylene Rubber)
3. Sheath: PCP(Polychioroprene)
4. Cores: 1 2 3 4 5 Cores or Others
5. Voltage:450/750V, 0.6/1KV, 3.6/6KV, 6/10KV, 8.7/15KV,12/20KV
6. Temperature Rating: conductor operation temperature -40°C to +60°C(90°C max)
7. Minimum Bending Radius: Up to 25mm2,6xoverall diameter;
8. Above to 25mm2: 8x overall diameter
Product Parameters:
|
JHS Round Submersible Water Pump Cable Parameter
|
|||||
|
Conductor
|
Nominal Core Dia
|
Approx. Overall Dimensions of doubble Sheathed Cable
|
Current Rating at 40 Degree
|
||
|
Nominal Area
|
Nos. & Dia. of Wire
|
3 Core
|
4 Core
|
||
|
Sq. mm.
|
Nos./mm
|
mm
|
mm
|
mm
|
Amps
|
|
1.5
|
22/0.30
|
3.25
|
10
|
10.8
|
14
|
|
2.5
|
36/0.30
|
3.84
|
11
|
12.5
|
18
|
|
4
|
56/0.30
|
4.5
|
13
|
14.1
|
26
|
|
6
|
84/0.30
|
5.3
|
14.6
|
16
|
31
|
|
10
|
140/0.30
|
6.5
|
18
|
20.35
|
42
|
|
16
|
224/0.30
|
8
|
21.2
|
23.4
|
57
|
|
25
|
350/0.30
|
10.1
|
26
|
28.8
|
72
|
|
35
|
490/0.30
|
11.3
|
28.3
|
31.5
|
90
|
|
50
|
703/0.30
|
13.6
|
33.5
|
37.3
|
115
|
|
70
|
988/0.30
|
15.3
|
37.8
|
42.2
|
143
|
|
95
|
1349/0.30
|
18
|
43.5
|
48.8
|
165
|
|
Flat Submersible Water Pump Cables Parameter
|
|||||
|
Conductor Size
|
No of Conductor
|
Nos of Dia. Of Wire
|
Ground Conductor Size
|
Core Dia
|
Nominal Sheath Thickness
|
|
Awg
|
Awg
|
mm
|
mm
|
||
|
14
|
3
|
41×0.254
|
14
|
3.85
|
1.15
|
|
12
|
3
|
65×0.254
|
12
|
4.5
|
1.15
|
|
10
|
3
|
105×0.254
|
10
|
5.3
|
1.15
|
|
8
|
3
|
168×0.254
|
10
|
6.5
|
1.4
|
|
6
|
3
|
226×0.254
|
8
|
8
|
2
|
|
4
|
3
|
420×0.254
|
8
|
10.1
|
2
|
|
2
|
3
|
665×0.254
|
6
|
11.3
|
2.2
|
|
1
|
3
|
817×0.254
|
6
|
13.6
|
2.2
|
|
1/0
|
3
|
1045×0.254
|
6
|
15.6
|
2.2
|
|
2/0
|
3
|
1330×0.254
|
6
|
18
|
2.2
|
Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International
Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters, With Advanced
20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers
We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC
Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane And Other Special Use Cables.
1.You are manufacturer or trader ?
Huadong cable is a professional cable&wire manufacturer with more than 20 years experience.Our factory located in jiaozuo city,henan province,china.
2.How can I get the quotation of the products ?
Pls send inquiry to us,we will reply you within 12 hours.
3.What does your company do regarding quality control?
1) all raw materials we selected are the highest quality.
2) professional and skillful workers care every details in handling the producing.
3) quality control department is specially responsible for quality checking in each process.
4.Do you provide OEM project service?
Yes,OEM & ODM order is warmly welcomed.
Our technical engineers can give you the professional suggestions.
5.Can I get the sample?
Yes,pls send inquiry to us,then our sales manager will arrange the samples for you
We are China Henan Huadong Factory Price Waterproof 450/750V Flat 3 4 5 Core 25mm Electric Submersible Water Pump Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: Henan Huadong Cable Co., Ltd., Submersible Pump Cable, Water Pump CableSimilar Or Related
-

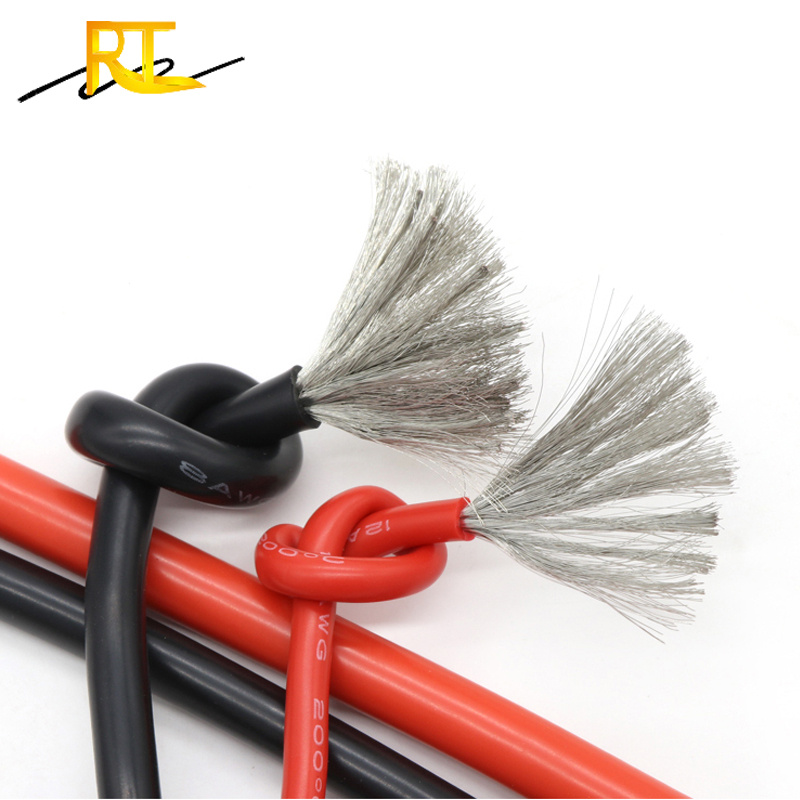

High Temperature 8AWG 10 AWG 12AWG 6AWG 20AWG 26AWG 22 AWG 50mm Heat Resistant Silicone Rubber Cable Wire
-
