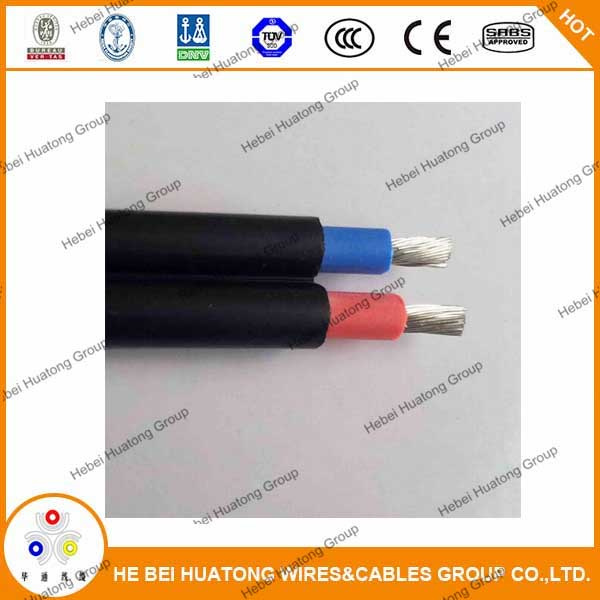

H1z2z2-K Solar PV 6mm2 Cable

H1z2z2-K Solar PV 6mm2 Cable image

Get Latest Price Request a quote

Product Details

Model NO.

H1Z2Z2-K

Sheath Material

Xlpo

Insulating Material

Xlpo

Conductor Type

Stranded

Brand

QIFAN

Certification

TUV

Wire Core Material

Tinned Wire

Standard

En50618

Color

Black or Red

Voltage

DC 1.5kv, AC1.0/1.0kv

Performance

Strong UV Resistance

Test Voltage

AC 6.5kv for 5min, Not Break Down

Ambient Temperature

-40 to +90

Transport Package

1000meter/Drum, or in Coil or as Your Requirement

Specification

4~240mm2

Trademark

Qifan

Origin

China

Production Capacity

20000km/Month

Product Description

H1Z2Z2-K Solar PV 6mm2 Cable

Applications:

This cable is used for interconnecting power supplies within renewable energy photovoltaic systems, such as solar panel arrays in solar energy farms. These solar panel cables are suitable for fixed installations, both internal and external, and within conduits or systems.

Structure:

Conductor: Tinned soft copper wires, class 5, according to EN60228;
Insulation: Cross-linked polyolefin, low smoke zero halogen(LSZH)
Jacket: Cross-linked polyolefin, low smoke zero halogen(LSZH)

Working temperature:

Max. conductor temperature: 120ºC

Ambient temperature: -40 to +90.

Standards:

EN50618

Voltage:

DC 1.5KV, AC1.0/1.0KV

Performance:

Strong UV resistance

Flame retardant

Low smoke halogen free LSZH

Lift time at least 25 years

Test voltage:

AC 6.5KV for 5min, not break down

Techncial Datas:

Size mm2	Max. Diameter of single wire in conductor (mm)	Insulation Thickness mm	Outer-sheath Thickness mm	Overall Diameter mm	Max. DC resistance at 20C (Ω/km)
1X1.5	0.26	0.7	0.8	4.6	13.7
1X2.5	0.26	0.7	0.8	5.0	8.21
1X4.0	0.31	0.7	0.8	5.6	5.09
1X6.0	0.31	0.7	0.8	6.3	3.39
1X10	0.41	0.7	0.8	7.4	1.95
1X16	0.41	0.7	0.9	8.6	1.24
1X25	0.41	0.9	1.0	11.1	0.795
1X35	0.41	0.9	1.1	13.0	0.565
1X50	0.41	1.0	1.2	15.1	0.393
1X70	0.51	1.1	1.2	17.2	0.277
1X95	0.51	1.1	1.3	18.6	0.210
1X120	0.51	1.2	1.3	20.6	0.164
1X150	0.51	1.4	1.4	23.4	0.132
1X185	0.51	1.6	1.6	25.5	0.108
1X240	0.51	1.7	1.7	28.7	0.0817
