H05BQ-F H07BQ-F 300/500V 450/750V Copper conductor EPR PUR Rubber cable
APPLICATION
For use in agricultural workshops, building sites, for heavy duty applications and supplying industrial and agricultural machines and appliances where cables are subject to medium mechanical stresses (e.G. Heating plates, inspection lamps, electric tools such as drills, circular saws, and domestic electric tools). Use in dry, humid or moist rooms; fixed installations e.g. on rough-cast In temporary buildings and huts for accommodation purposes.
CHARACTERISTICS
Voltage Rating Uo/U 450/750V
Test Voltage 2.5kV
Temperature Rating
Operating: -40ºC to +90ºC
Maximum Short Circuit Temperature: 250ºC (Max. 5 seconds)
Minimum Bending Radius
5 x overall diameter
Construction:
1 ….. fine-stranded tinned or bare copper
2 ….. core insulation of a rubber compound (EL6)
3 ….. outer sheath of polyurethane (PUR), orange
Standards:
DIN VDE 0282-10
DIN EN 60228 class 5 (construction)
HD 308 S2 (core identification)
HD 22.10 S1+A1
TECHNICAL DATA:
|
No. Of cores
|
Nominal cross sectional area
|
Nominal thickness of insulation
|
Nominal thickness of outer sheath
|
Nominal overall diameter
|
Nominal weight
|
|
mm2
|
mm
|
mm
|
mm
|
kg/km
|
|
|
2
|
1
|
0.8
|
0.9
|
7.6
|
64
|
|
2
|
1.5
|
0.8
|
1.0
|
8.4
|
82
|
|
2
|
2.5
|
0.9
|
1.1
|
9.8
|
134
|
|
2
|
4
|
1.0
|
1.2
|
11.4
|
168
|
|
3
|
1
|
0.8
|
1.0
|
8.3
|
79
|
|
3
|
1.5
|
0.8
|
1.0
|
8.9
|
97
|
|
3
|
2.5
|
0.9
|
1.1
|
10.4
|
166
|
|
3
|
4
|
1.0
|
1.3
|
12.3
|
210
|
|
3
|
6
|
1.0
|
1.4
|
13.7
|
281
|
|
3
|
10
|
1.2
|
2.1
|
18.1
|
490
|
|
4
|
1
|
0.8
|
1.0
|
9.0
|
94
|
|
4
|
1.5
|
0.8
|
1.1
|
9.9
|
121
|
|
4
|
2.5
|
0.9
|
1.2
|
11.6
|
210
|
|
4
|
4
|
1.0
|
1.4
|
13.7
|
262
|
|
4
|
6
|
1.0
|
1.5
|
15.2
|
351
|
|
4
|
10
|
1.2
|
2.2
|
19.9
|
607
|
|
5
|
1
|
0.8
|
1.1
|
10.0
|
113
|
|
5
|
1.5
|
0.8
|
1.2
|
11.0
|
146
|
|
5
|
2.5
|
0.9
|
1.3
|
12.9
|
256
|
|
5
|
4
|
1.0
|
1.5
|
15.2
|
318
|
|
5
|
6
|
1.0
|
1.6
|
16.8
|
424
|
|
5
|
10
|
1.2
|
2.3
|
23.9
|
855
|
|
5
|
16
|
1.2
|
2.6
|
27.5
|
1208
|
1.You are manufacturer or trader ?
We are a professional cable&wire manufacturer with more than 20 years experience.Our factory located in jiaozuo city,henan province,china.
2.How can I get the quotation of the products ?
Pls send inquiry to us,we will reply you within 12 hours.
3.What does your company do regarding quality control?
1) All raw materials we selected are the highest quality.
2) Professional and skillful workers care every details in handling the producing.
3) Quality control department is specially responsible for quality checking in each process.
4.Do you provide OEM project service?
Yes,OEM & ODM order is warmly welcomed.
Our technical engineers can give you the professional suggestions.
5.Can I get the sample?
Yes,pls send inquiry to us,then our sales manager will arrange the samples for you.
We are China H07bq-F Flexible Class 5 Copper Conductor Epr Rubber Insulated Thermoplastic Polyurethane Sheath 2 Core 3 Core 4 Core Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: Electric Wire, Henan Huadong Cable Co., Ltd., Power CableSimilar Or Related
-
-

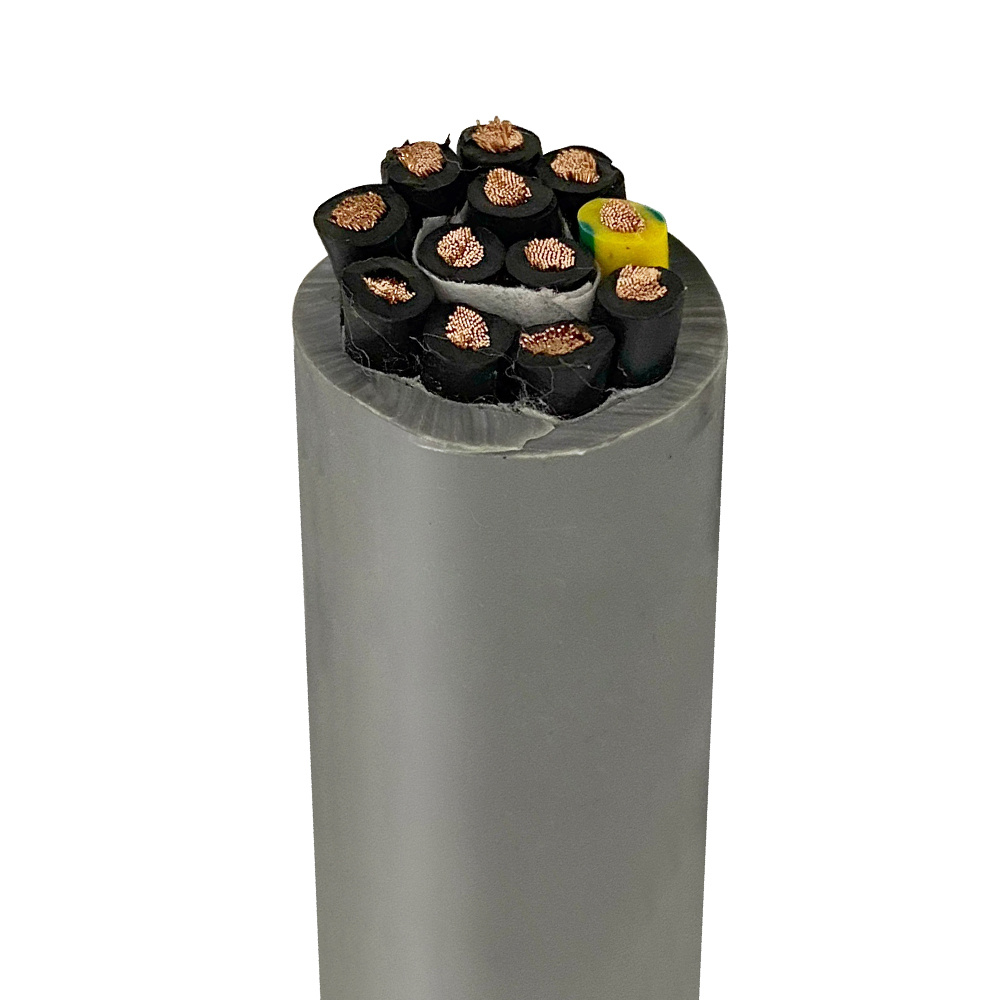

Yjv/Yjlv/Yjy XLPE Copper Control Cable Price 4 Core 4X35mm2 4X70mm2 4X95mm2 4X120mm2 PVC/XLPE Insulated Copper Power Cable
-
