H05sj-K 0.5mm2 to 95mm2 Atc Silicone Rubber Insulated Glass Fibre Braid 300/500 V Rated Cable
H05sj-K 0.5mm2 to 95mm2 Atc Silicone Rubber Insulated Glass Fibre Braid 300/500 V Rated Cable image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
Application
For wiring at high ambient temperature zones like boiler house etc,.
Electric Motor Industry.
Air-conditioning technology.
Furnace construction
Thermal and heating elements.
Product Construction
Conductor : Annealed Tinned Copper Conductor (Opt: APC) as per EN 60228, Class 5
Insulation : Elastomeric Compound Type EI 2 (Silicone Rubber)
Insulation Colour : Black (or) As per customer order
Outer Braid : Glass Fibre as per EN 50525-1
Technical Data
Specification : BS EN 50525-2-41 (0.5 Sq.mm to 95 Sq.mm – Class-5)
Test Voltage : 2000V
Operating Temperature : -55°C to 180°C
Rated Voltage : 300/500V
Max. Temperature of short circuit : 350°C
Min. Insulation Resistance Constant at 27°C : 3670 MΩ.km
| Size | Conductor Construction No. of Stands x Stand dia Nos x mm (Nom.) |
Nominal Insulation Thickness |
Overall Diameter | Max. Conductor Resistance at 20ºC |
Weight (Approx.) | |
| Lower Limit | Upper Limit | |||||
| mm | mm | mm | mm | mm | Ω/km | Kg/Km |
| 0.5 | 16×0.20 | 0.6 | 2.6 | 3.3 | 40.1 | 11 |
| 0.75 | 24×0.20 | 0.6 | 2.8 | 3.5 | 26.7 | 14 |
| 1 | 32X0.20 | 0.6 | 2.9 | 3.7 | 20.0 | 17 |
| 1.5 | 30×0.25 | 0.7 | 3.4 | 4.2 | 13.7 | 24 |
| 2.5 | 50×0.25 | 0.8 | 4.0 | 5.0 | 8.21 | 35 |
| 4 | 56× 0.30 | 0.8 | 4.5 | 5.6 | 5.09 | 54 |
| 6 | 84×0.30 | 0.8 | 5.0 | 6.2 | 3.39 | 74 |
| 10 | 126×0.40 | 1.0 | 6.2 | 7.8 | 1.95 | 118 |
| 16 | 196×0.40 | 1.0 | 7.3 | 9.1 | 1.24 | 172 |
| 25 | 276×0.40 | 1.2 | 9.0 | 11.3 | 0.795 | 267 |
| 35 | 396×0.40 | 1.2 | 10.3 | 12.8 | 0.565 | 355 |
| 50 | 360×0.40 | 1.4 | 11.7 | 14.6 | 0.393 | 495 |
| 70 | 475×0.40 | 1.4 | 13.8 | 17.3 | 0.277 | 670 |
| 95 | 608×0.40 | 1.6 | 15.6 | 19.6 | 0.210 | 890 |
1.You are manufacturer or trader ?
We are a professional cable&wire manufacturer with more than 20 years experience.Our factory located in jiaozuo city,henan province,china.
2.How can I get the quotation of the products ?
Pls send inquiry to us,we will reply you within 12 hours.
3.What does your company do regarding quality control?
1) All raw materials we selected are the highest quality.
2) Professional and skillful workers care every details in handling the producing.
3) Quality control department is specially responsible for quality checking in each process.
4.Do you provide OEM project service?
Yes,OEM & ODM order is warmly welcomed.
Our technical engineers can give you the professional suggestions.
5.Can I get the sample?
Yes,pls send inquiry to us,then our sales manager will arrange the samples for you.
We are China H05sj-K 0.5mm2 to 95mm2 Atc Silicone Rubber Insulated Glass Fibre Braid 300/500 V Rated Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: Henan Huadong Cable Co., Ltd., Silicone Cable, Silicone WireSimilar Or Related
-
China Professional Bare Manufacturer Aluminium ACSR Raven Conductor
-
H03rn-F H05rn-F H07rn-F 3X1.5 3X2.5 3X3.5mm2 Hepr Flexible Flat Rubber Submersible Pump Cable
-
1X0.5mm 1X0.75mm 1X1mm 1X1.5mm 1X2.5mm Silicone Rubber H03s-K Cable
-

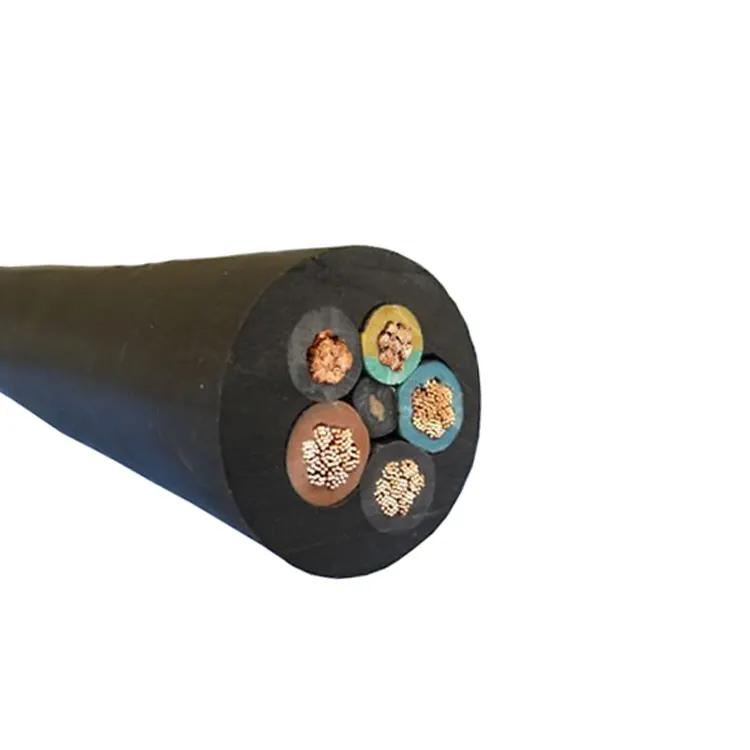

High Performance Rubber Festoon 10mm2 120mm VDE Standard H07rn-F Trailing Duty Cable
-
