Greater Solar Power Cables H1z2z2-K/PV1-F PV DC Wire Solar Cable 4mm 6mm 10mm2 for Solar Panel

Greater Solar Power Cables H1z2z2-K/PV1-F PV DC Wire Solar Cable 4mm 6mm 10mm2 for Solar Panel image

Get Latest Price Request a quote

Product Details

Insulation Material

Xlpo

Sheath Material

Xlpo

Material Shape

Flat Wire

Wire Core Material

Tinned Wire

Certification

En50618

Model

Solar Cable

Brand

Ren Da

Type

Insulated

Color

Red, Blue, White, Black, Green/Yellow and So on

Transport Package

Soft Packing in Coil,100m/Roll,or as Your Requests

Specification

1.5mm2-240mm2

Trademark

Origin

Tangshan, Hebei

HS Code

8544492100

Production Capacity

1000roll/Week

Product Description

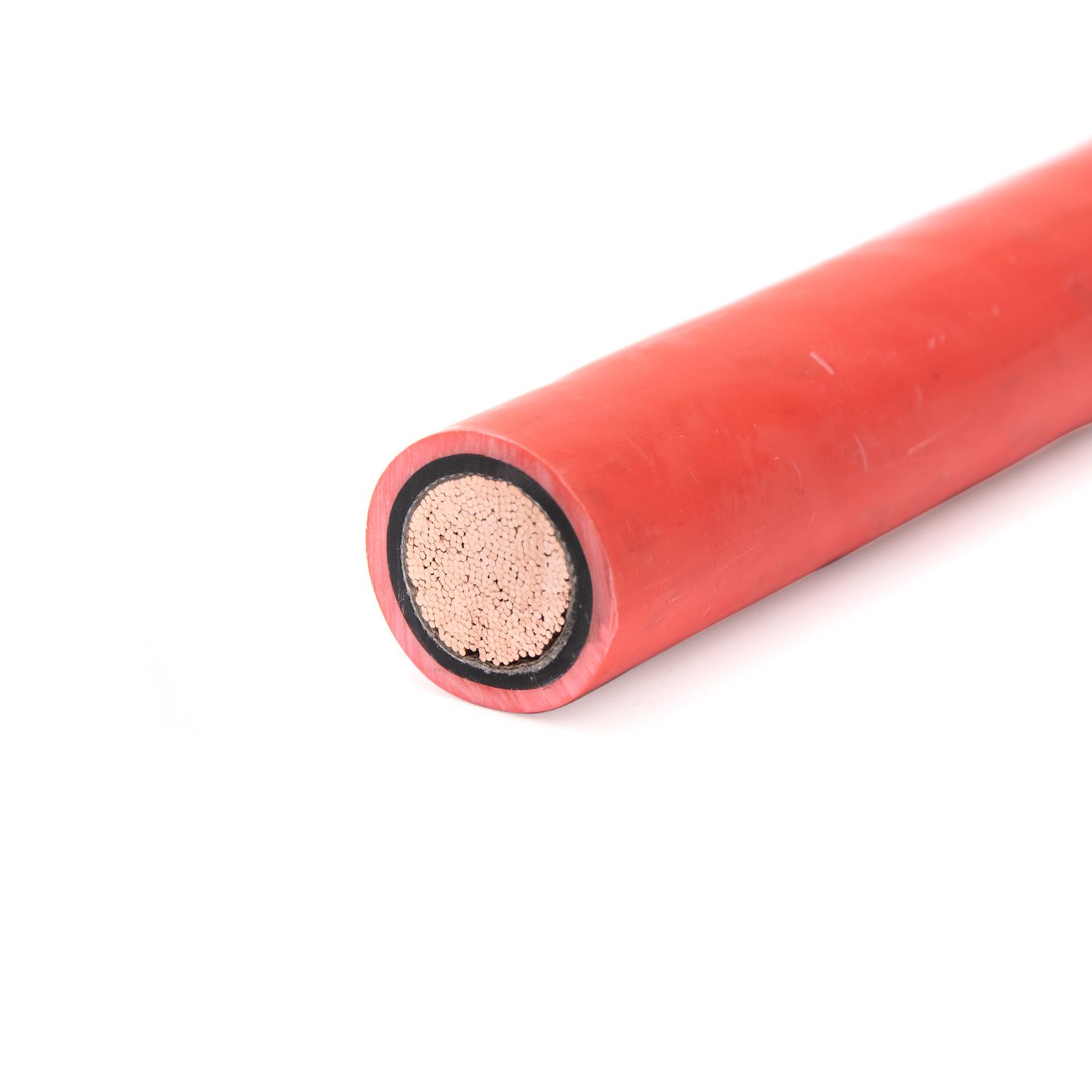

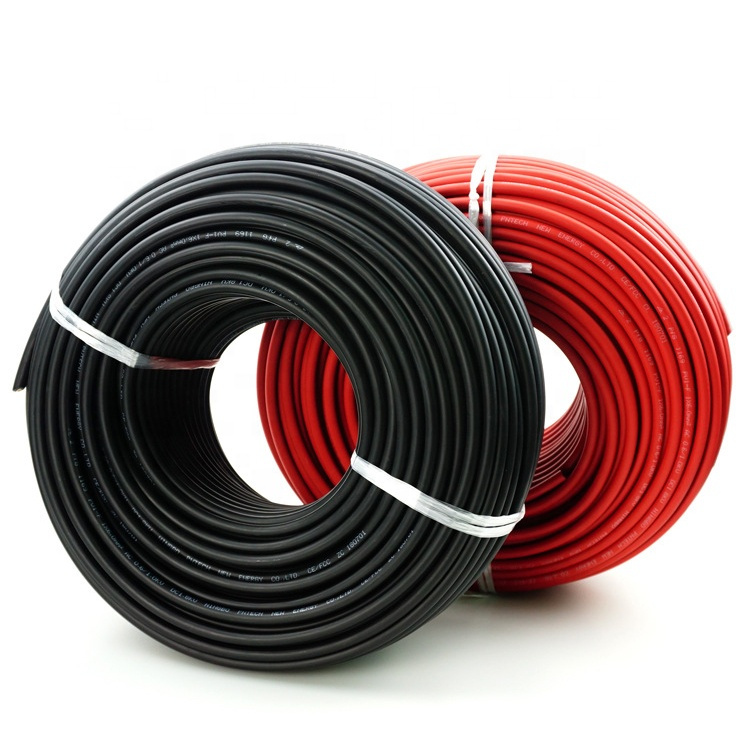

EN Standard Photovoltaic Solar Cable

Applications:
This cable is used for interconnecting power supplies within renewable energy photovoltaic systems, such as solar panel arrays in solar energy farms. These solar panel cables are suitable for fixed installations, both internal and external, and within conduits or systems.

Structure:

Conductor: Tinned soft copper wires, class 5, according to EN60228;
Insulation: Cross-linked polyolefin, low smoke zero halogen(LSZH)
Jacket: Cross-linked polyolefin, low smoke zero halogen(LSZH)

Working temperature:

Max. conductor temperature: 120ºC
Ambient temperature: -40 to +90

Standards:
EN50618

Voltage:
DC 1.5KV, AC1.0/1.0KV

Performance:
Strong UV resistance
Flame retardant
Low smoke halogen free LSZH
Lift time at least 25 years

Test voltage:
AC 6.5KV for 5min, not break down

‘

We are China Greater Solar Power Cables H1z2z2-K/PV1-F PV DC Wire Solar Cable 4mm 6mm 10mm2 for Solar Panel manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
