Good Service Insulated Solid RW90 Building Electric Cable AC 90 Wire AC90

Good Service Insulated Solid RW90 Building Electric Cable AC 90 Wire AC90 image

Get Latest Price Request a quote

Product Details

Model NO.

AC90

Application

Heating

Conductor Material

Copper

Sheath Material

Non

Insulation Material

Material Shape

Round Wire

Range of Application

Building Wire

Brand

Huatong Cables

Transport Package

Plywood Drums

Trademark

Huatong Cables

Origin

China

HS Code

8544492100

Product Description

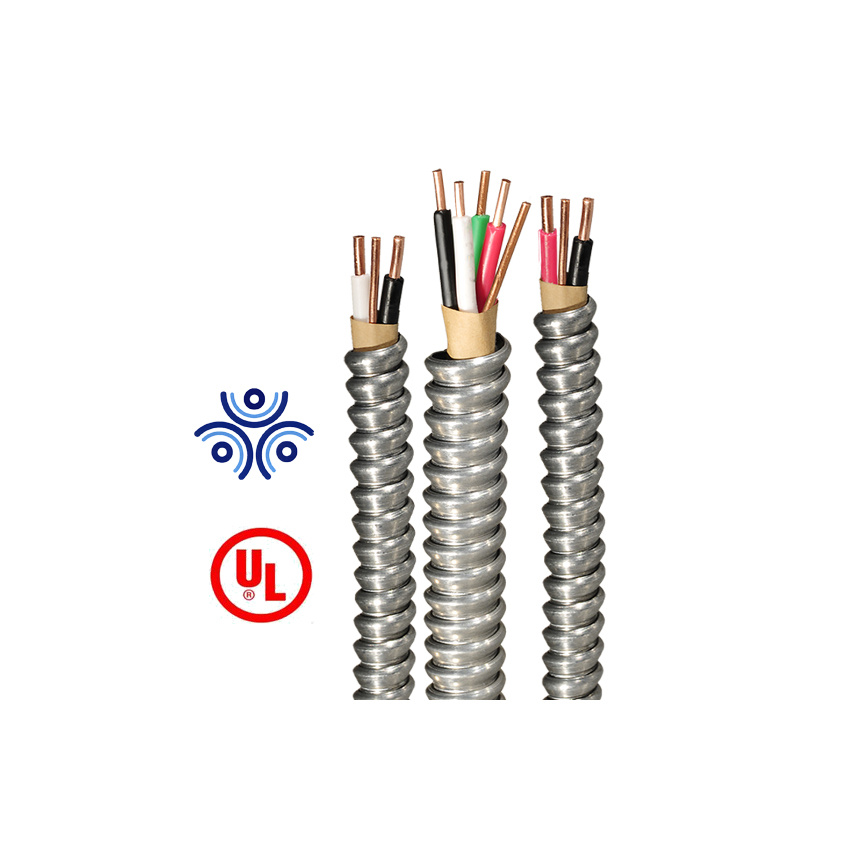

CUL listed 600V Type AC90 wire and Cable

Application:

For open and concealed wiring in dry locations only.

For use in cable troughs and ventilated flexible cableways in dry locations only. Minimum recommended

installation temperature minus 40°C (with suitable handling procedures).

Maximum conductor temperature 90°C. Approved for use with ceiling fixtures.

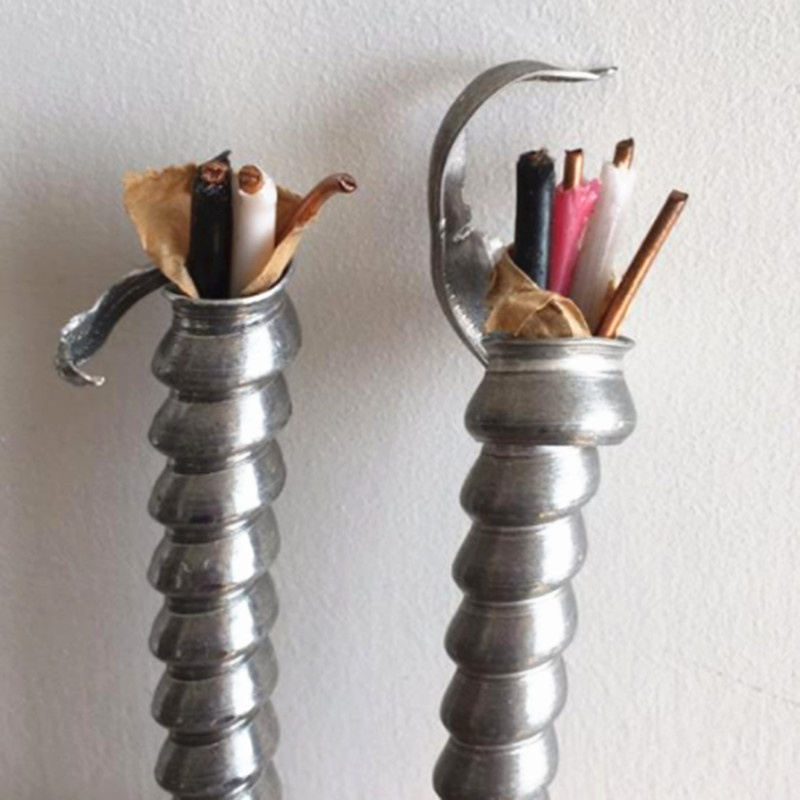

Structure:

1.Circuit conductor: solid or stranded annealed bare copper wires, according to ASTM B3, ASTM B8;

2. Insulation: XLPE, type RW90;

3. Bonding wires: annealed bare copper wires

4. Wrapping tape: PP tape

5. Armour: aluminium tape interlock armour

Identification by colors:
2 cores, by black and white;

3 cores, by black, white and red;

4 cores, by black, red, blue, white

Standard: Canadian Standard C22.2 No. 51, and C22.2 No.38

Working temperature: -40ºC to +90ºC

Voltage: up to 600V

Circuit conductor		Bonding wire		Insulation Thickness	Approx. OD
No.& AWG	Nos of strands	No.& AWG	Nos of strands	mm	mm
14/2	1	14	1	0.76	11.5
14/3	1	14	1	0.76	12.1
12/2	1	14	1	0.76	12.3
12/3	1	14	1	0.76	13.0
10/2	1	12	1	0.76	13.7
10/3	1	12	1	0.76	14.4

Package:

Plywood drums, 75 or 150meters normally.

Largest manufacturer of UL cUL CSA approved cables in China!

We are China Good Service Insulated Solid RW90 Building Electric Cable AC 90 Wire AC90 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
