Flexible 600V 105c Heat Resistant Zero Halogen Epr Ep Insulated Arc Welding Cable
Flexible 600V 105c Heat Resistant Zero Halogen Epr Ep Insulated Arc Welding Cable image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
Secondary voltage resistant welding leads
Leads for motors, generators, batteries
Other industrial applications
Flexible stranded bare copper per ASTM B 172 Class K
Separator
Paper separator between conductor and insulation
Insulation
Ethylene-propylene rubber (EPR). Class 45, 105°C, Table 50.55 of UL1581
Color
Black or other color
Product Parameters:
|
AWG |
Nominal stranding
|
Nominal overall diameter
|
Approx. net weight (lbs/1000ft)
|
Max. conductor resistance at 20ºC(Ω/km)
|
||
|
awg
|
mm
|
inch
|
mm
|
|||
|
6
|
259/30
|
259/0.254
|
0.43
|
10.92
|
152
|
1.33
|
|
4
|
418/30
|
418/0.254
|
0.475
|
12.07
|
215
|
0.84
|
|
2
|
646/30
|
646/0.254
|
0.54
|
13.72
|
296
|
0.53
|
|
1
|
836/30
|
836/0.254
|
0.58
|
14.73
|
360
|
0.42
|
|
1/0
|
1032/30
|
1032/0.254
|
0.615
|
15.62
|
424
|
0.33
|
|
2/0
|
1290/30
|
1290/0.254
|
0.655
|
16.64
|
513
|
0.26
|
|
3/0
|
1672/30
|
1672/0.254
|
0.72
|
18.29
|
644
|
0.21
|
|
4/0
|
2066/30
|
2066/0.254
|
0.78
|
19.81
|
824
|
0.17
|
Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International
Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters, With Advanced
20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers
We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC
Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane And Other Special Use Cables.
1.How can I get the quotation of the products ?
Pls send inquiry to us,we will reply you within 12 hours.
2.What does your company do regarding quality control?
1) all raw materials we selected are the highest quality.
2) professional and skillful workers care every details in handling the producing.
3) quality control department is specially responsible for quality checking in each process.
3.Do you provide OEM project service?
Yes,OEM & ODM order is warmly welcomed.
Our technical engineers can give you the professional suggestions.
4.Can I get the sample?
Yes,pls send inquiry to us,then our sales manager will arrange the samples for you.
We are China Flexible 600V 105c Heat Resistant Zero Halogen Epr Ep Insulated Arc Welding Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: 10mm Welding Cable, 185mm2 Welding Cable, Henan Huadong Cable Co., Ltd.Similar Or Related
-

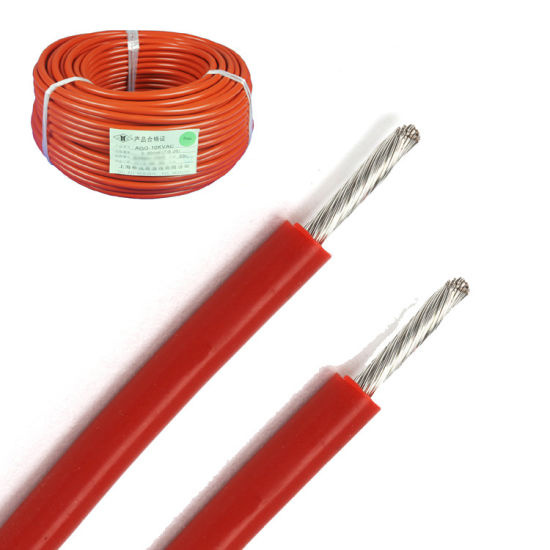

Insulated Rubber 18AWG Flexible 7AWG Silicon 28AWG Thermocouple Soft Silicone Heating Wire
-

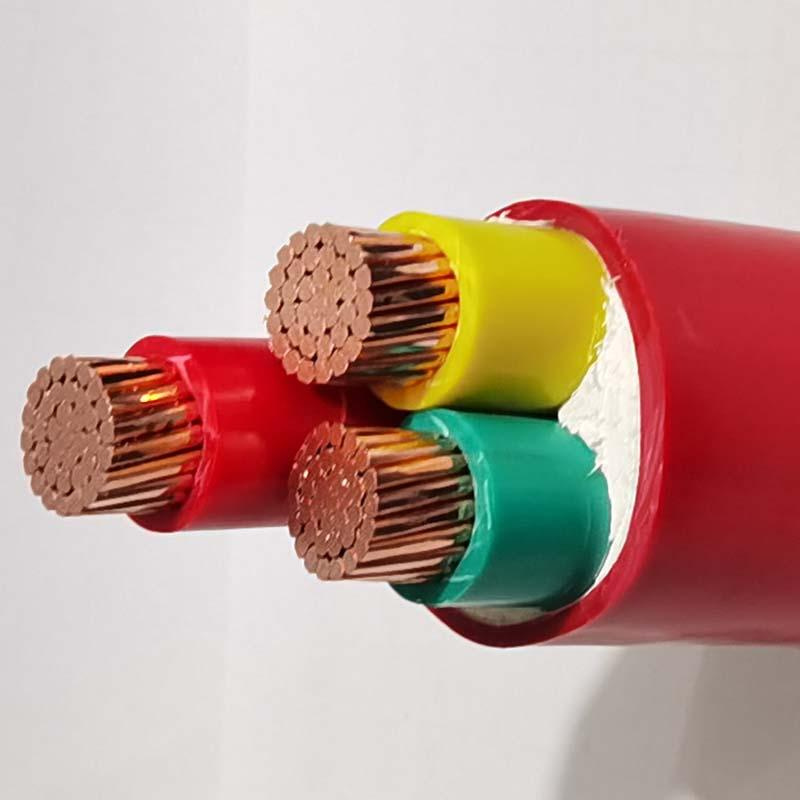

Professional Manufacture Copper Conductor Underground 3c 95mm Power Cable
-

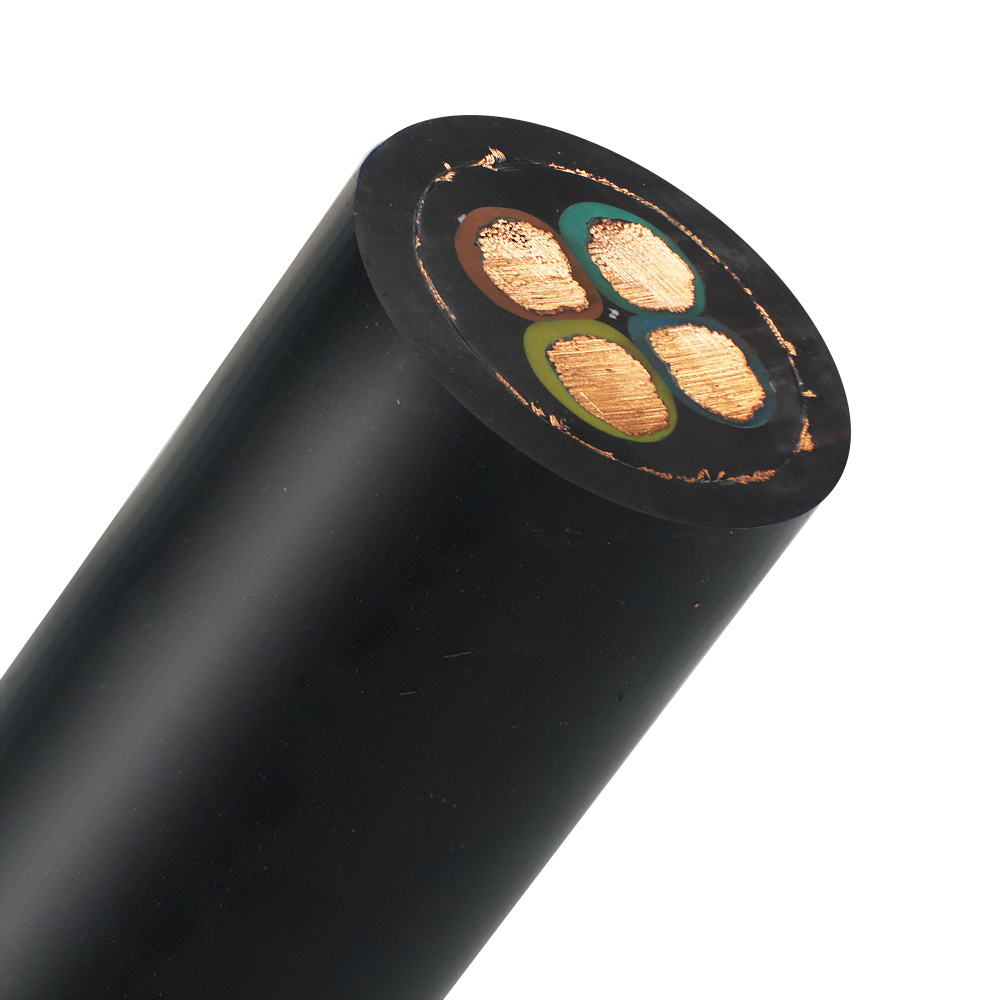

Low Voltage Fire Resistant Rubber VDE Standard H07rn-F Trailing Duty Cable
-

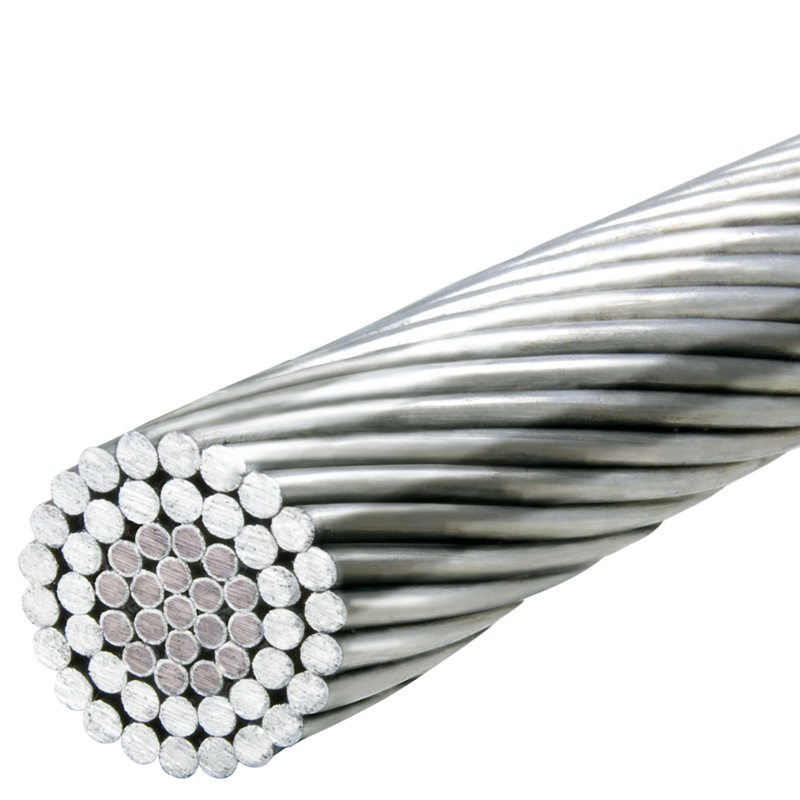

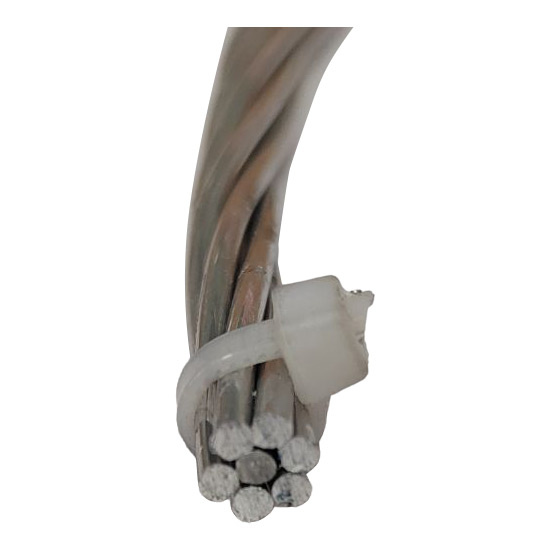

Bare High Voltage Cable 50mm2 70mm Sizes Triple Tern Teal ACSR Aluminum Conductor
-

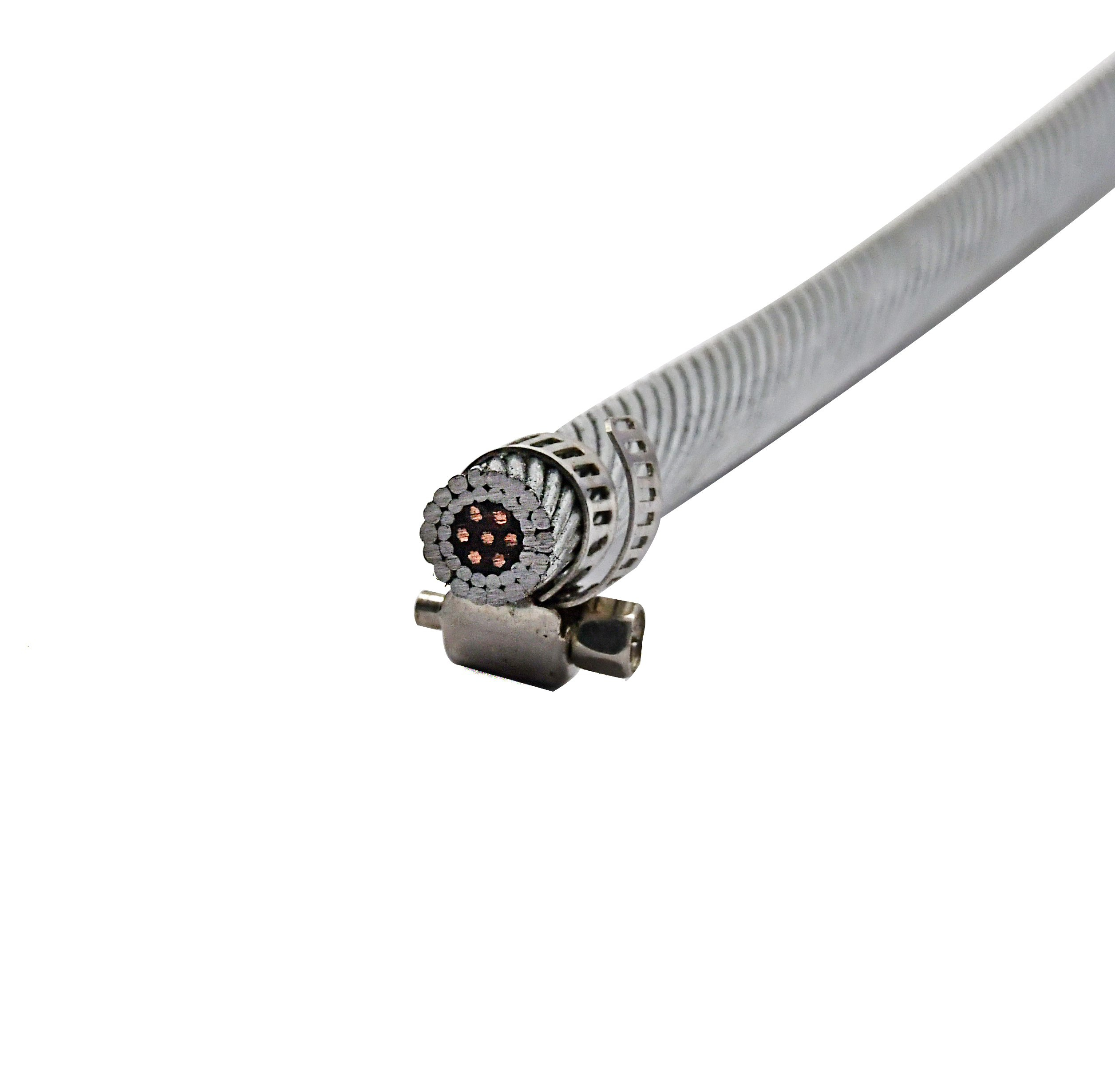

5/16 3/16 3/8 Inches 1n 25 Was 77 Geophysical Logging Cable
