Factory Price TUV/UL 4mm2 DC Copper Single Core Double Insulated PV1-F 4mm Solar Cable
Factory Price TUV/UL 4mm2 DC Copper Single Core Double Insulated PV1-F 4mm Solar Cable image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
H1Z2Z2-K xlpo double insulated 6mm mc4 connector pv solar battery wire cable
Solar Cable Feature:1. Conductor: Class 5 tinned annealed stranded copper
2. Insulation:120°C XLPE/XLPO,black3. Jacket:120°C XLPE , black or red
4. Cores: Single Core or Twin Core
5. Voltage: 600/1000V,1000/1500V DC
6. Temperature Rating: -40ºC~90ºC(Max 120 ºC)Solar Cable Application:
Is Used In Photovoltaic Power Generation And Solar System,Interconnects Solar Modules And ElectricalComponents
In The Photovoltaic System,Suitable For Outdoor Extreme Environments,UV,Ozone,Hydrolysis Resistant.
Parameters for Solar PV Cable
|
Size
|
Cross Section
|
Conductor
Structure |
Outer
Diameter |
Max. DC Resistance
at 20ºC |
Rated Voltage
|
Rated
Current |
|
mm2
|
mm
|
mm
|
Ω/km
|
V
|
A
|
|
|
Single Core Solar Cable
|
||||||
|
1×2.5mm2
|
2.5mm2
|
49xΦ0.25
|
5.1
|
8.06
|
1000/1500
|
30
|
|
1×4.0mm2
|
4.0mm2
|
56xΦ0.285
|
6.1
|
4.97
|
1000/1500
|
50
|
|
1×6.0mm2
|
6.0mm2
|
78xΦ0.3
|
6.4
|
3.52
|
1000/1500
|
70
|
|
1x10mm2
|
10mm2
|
74xΦ0.4
|
7.3
|
2.12
|
1000/1500
|
95
|
|
1x16mm2
|
16mm2
|
224xΦ0.3
|
10.2
|
1.24
|
1000/1500
|
132
|
|
Dual-Core Solar Cable
|
||||||
|
2×2.5mm2
|
2.5mm2
|
49xΦ0.25
|
5.1×10.9
|
8.06
|
1000/1500
|
30
|
|
2×4.0mm2
|
4.0mm2
|
56xΦ0.285
|
6.1×12.3
|
4.97
|
1000/1500
|
50
|
|
2×6.0mm2
|
6.0mm2
|
78xΦ0.3
|
6.4×12.9
|
3.52
|
1000/1500
|
70
|
Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International
Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters,With Advanced
20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers
We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC
Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane And Other Special Use Cables.
1.You are manufacturer or trader ?
We are a professional cable&wire manufacturer with more than 20 years experience.Our factory located in jiaozuo city,henan
province,china.
2.How can I get the quotation of the products ?
Pls send inquiry to us,we will reply you within 12 hours.
3.What does your company do regarding quality control?
1) all raw materials we selected are the highest quality.
2) professional and skillful workers care every details in handling the producing.
3) quality control department is specially responsible for quality checking in each process.
4.Do you provide oem project service?
Yes,oem & odm order is warmly welcomed.
Our technical engineers can give you the professional suggestions.
5.Can I get the sample?
Yes,pls send inquiry to us,then our sales manager will arrange the samples for you.
We are China Factory Price TUV/UL 4mm2 DC Copper Single Core Double Insulated PV1-F 4mm Solar Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: Henan Huadong Cable Co., Ltd., Power Cable, Solar CableSimilar Or Related
-

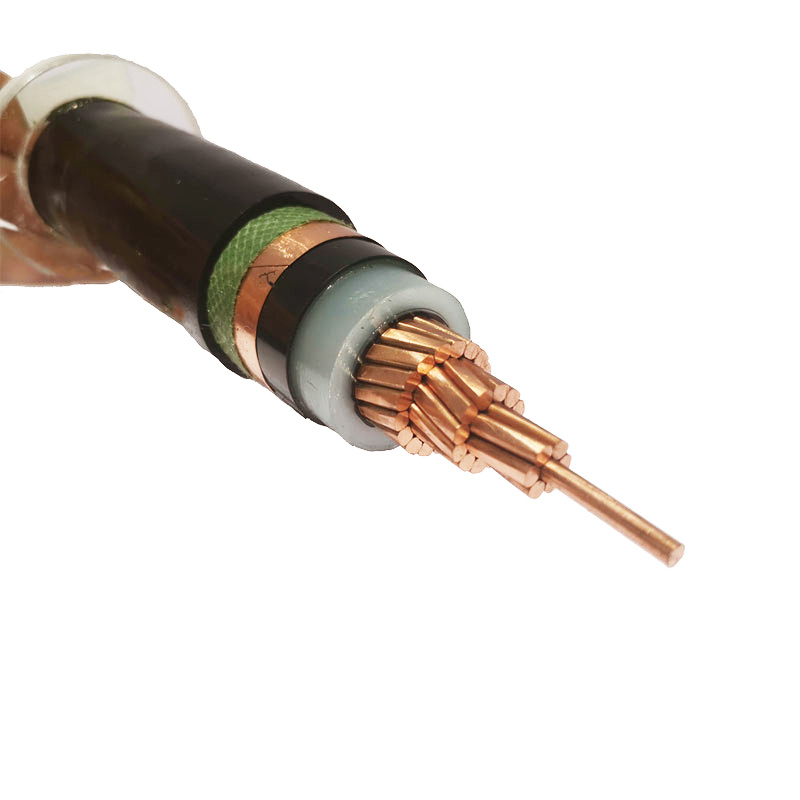

1 3 Copper Conductor High Voltage Single Core XLPE Cable
-

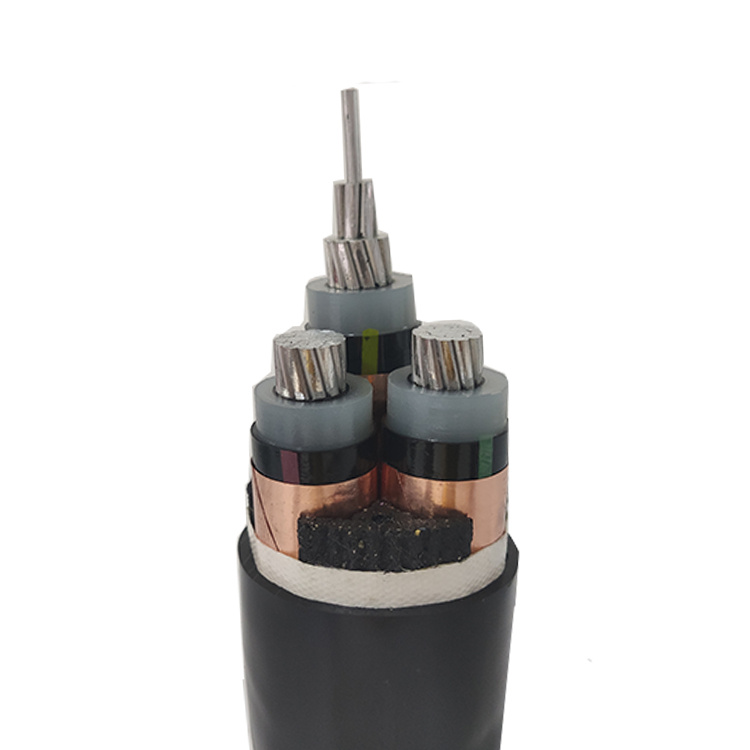

Aluminium Conductor Underground AWG 4/0 8.7/15kv XLPE 15kv Medium Voltage Mv Cable
-
Medium Voltage Power 3 Phase XLPE 230kv Price Underground 10mm Copper Cable
-

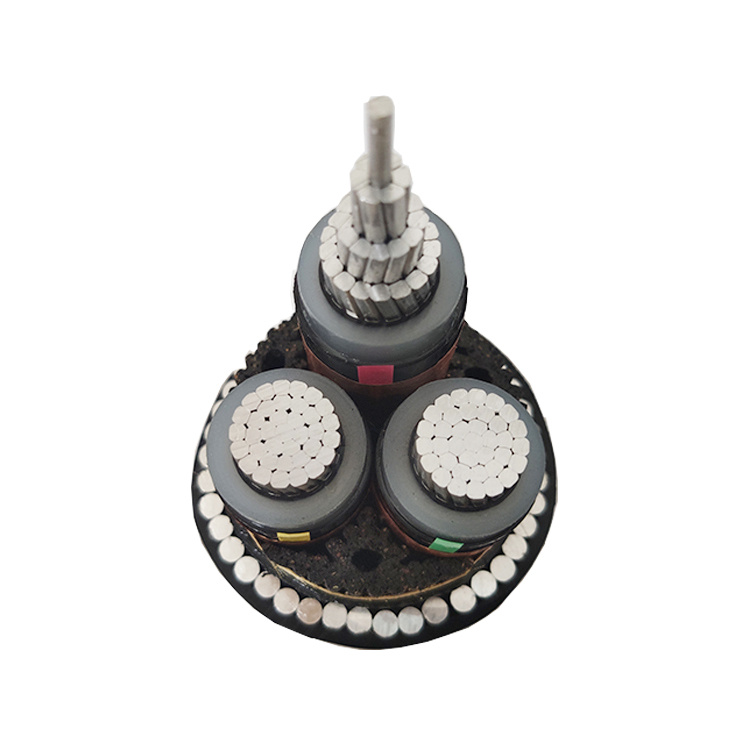

XLPE Medium Voltage 11kv 25mm Conductor 110kv 400mm2 Underground Power Copper Cable
-

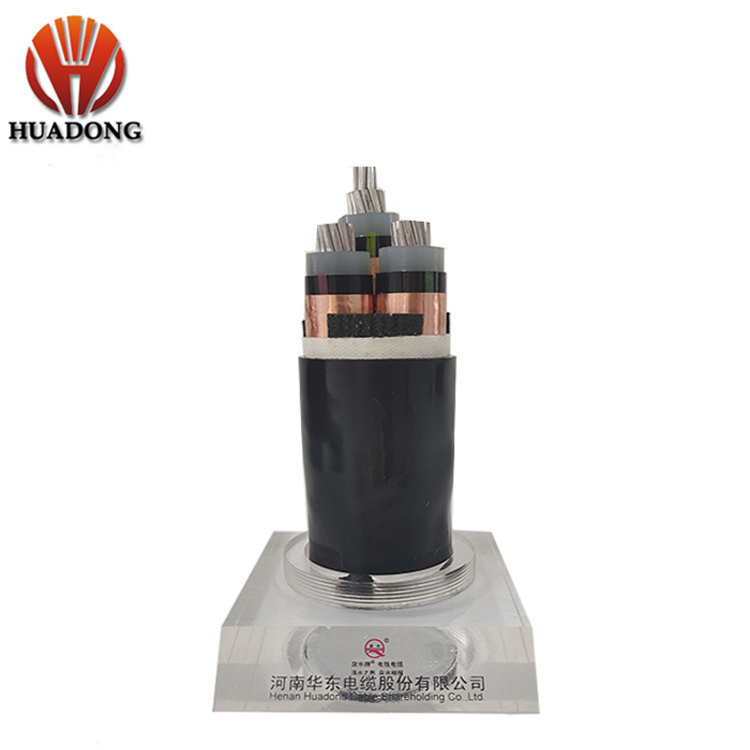

Medium Voltage Aluminium Conductor Cables by Meters Size 10-1000mm
