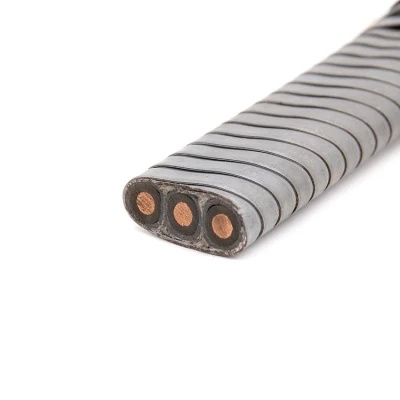

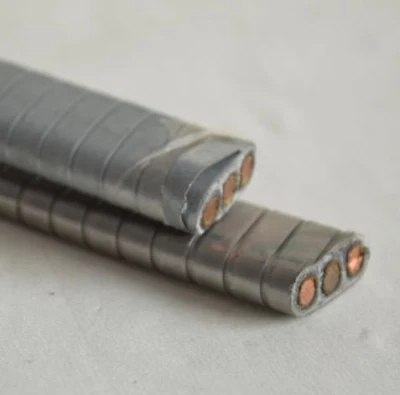

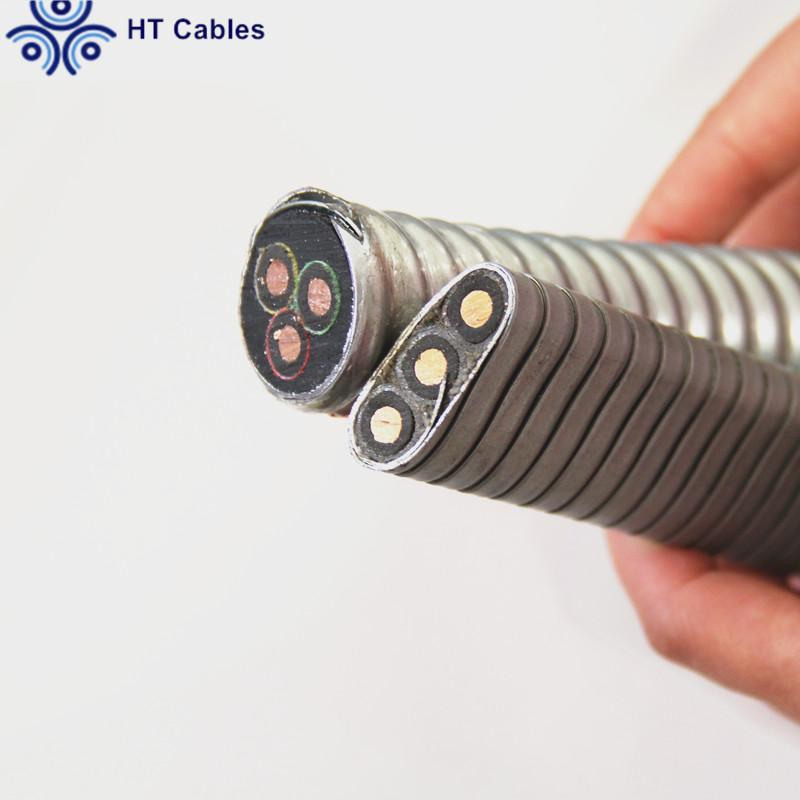

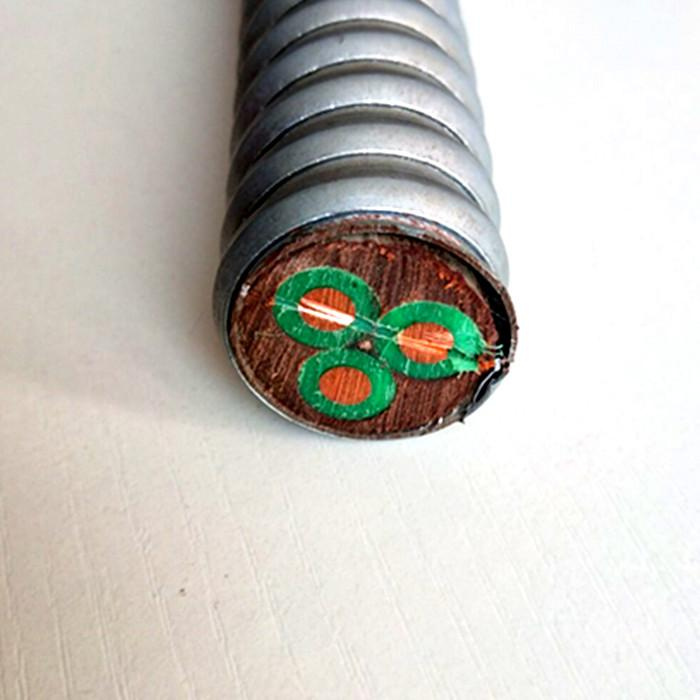

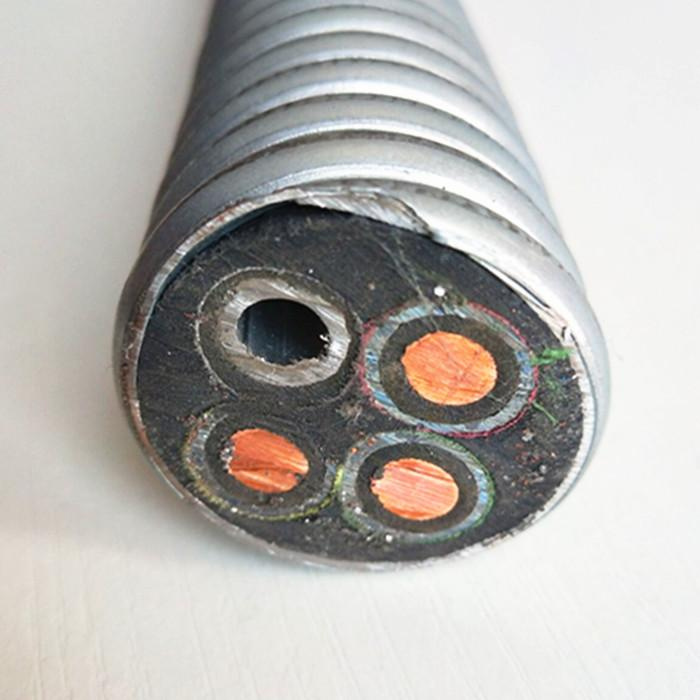

Electric Submersible Oil Pump Power Esp Extensions Cable

Electric Submersible Oil Pump Power Esp Extensions Cable image

Get Latest Price Request a quote

Product Details

Model NO.

ESP

Application

Underground

Conductor Material

Copper

Sheath Material

PVC

Insulation Material

Rubber

Material Shape

Round or Flat

Range of Application

Conduit or Recognized Raceways for Services

Certification

ISO9001, CE, CCC, RoHS, VDE

Brand

Huatong

Voltage

1.8/3kv or 3.6/6kv 5kv

out Sheath

Galvanized Steel Tape, Stainless Steel Tape, etc

Certificate

API

Package Length

as Customiazed

Production Time

About 30 Days

Transport Package

Coils and Drums

Specification

10mm2,13 mm2,1 mm2,16 mm2,20 mm2,33 mm2,42mm2

Trademark

Renda

Origin

China

HS Code

8544492100

Production Capacity

200000m/Month

Product Description

Product Description

ESP/Cable for submersible oil pump

1.Product Standard

This product is manufactured according to GB/T I9001-2000.

2.Application

Cable for submersible oil pump is used as the power cable of the submersible oil pump unit which is fixed laid in oil well of the land or platform on the sea with rated power-frequency voltage 1.8/3kV or 3.6/6kV.

3.Construction:

1.Conductor:

copper

2.Insulated:

PP, EPR, polyimide-F46, fluoroplastics, XLPE, etc.

3.Inner jacket

NBR, compound of the neoprene and PVC, EPR, fluoroplastics, lea, etc.

4.Out sheathed:

galvanized steel tape, stainless steel tape, etc.

4.Type and name

type	name	Max working temperature
QYPDB10	PP insulated and NBR sheathed,galvanized steel tape interlocked armoring , cable for submersing oil pump 90	90
QYPDF10	PP insulated and NBR sheathed,galvanized steel tape interlocked armoring , cable for submersing oil pump 100	100
QYPDF12	PP insulated and NBR sheathed,galvanized steel tape interlocked armoring , cable for submersing oil pump 100	100
QYPEF10	EPR insulated and NBR sheathed,galvanized steel tape interlocked armoring , cable for submersing oil pump 140	140
QYEQ10-120	EPR insulated and lead sheathed,galvanized steel tape interlocked armoring , cable for submersing oil pump 176	176
QYEQ10-150	EPR insulated and lead sheathed,galvanized steel tape interlocked armoring , cable for submersing oil pump 200	200
QYAEQ10	Polyimide-F46 composite file and EPR insulated and lead sheathed,galvanized steel tape interlocked armoring , cable for submersing oil pump 200	200
QYPDY10	PP insulated and NBR sheathed,galvanized steel tape interlocked armoring , round cable for submersing oil pump 100	100
QYEEY10	EPR insulated and sheathed,galvanized steel tape interlocked armoring , round cable for submersing oil pump 200	200
QYEEF10	EPR insulated and sheathed,galvanized steel tape interlocked armoring , cable for submersing oil pump 200	200
QYAEEY10	Polyimide-F46 composite file and EPR insulated and EPR sheathed,galvanized steel tape interlocked armoring , cable for submersing oil pump 200	200
QYAQF10	Polyimide-F46 composite file and EPR insulated and lead sheathed,galvanized steel tape interlocked armoring , cable for submersing oil pump 200	200
QYADF10	Polyimide-F46 composite file and EPR insulated and NBR sheathed,galvanized steel tape interlocked armoring , cable for submersing oil pump 140	140

5. Specifications:

NominalCross-section Areas:10mm2,13 mm2,1 mm2,16 mm2,20 mm2,33 mm2,42mm2 range according different type

All kinds of cables for submersible oil pump can be developed according to the customer’s requirements.

6 .Test voltage of the finished product before leaving the factory

Rated voltage (KV)	Test voltage(KV)
1.8/3	DC 30/5min or AC 10KV/1min,no-breakdown
3.6/6	DC 35/5min or AC 13KV/1min,no-breakdown

7.Sketch diagram ofstructure
