Product Details
Product Description

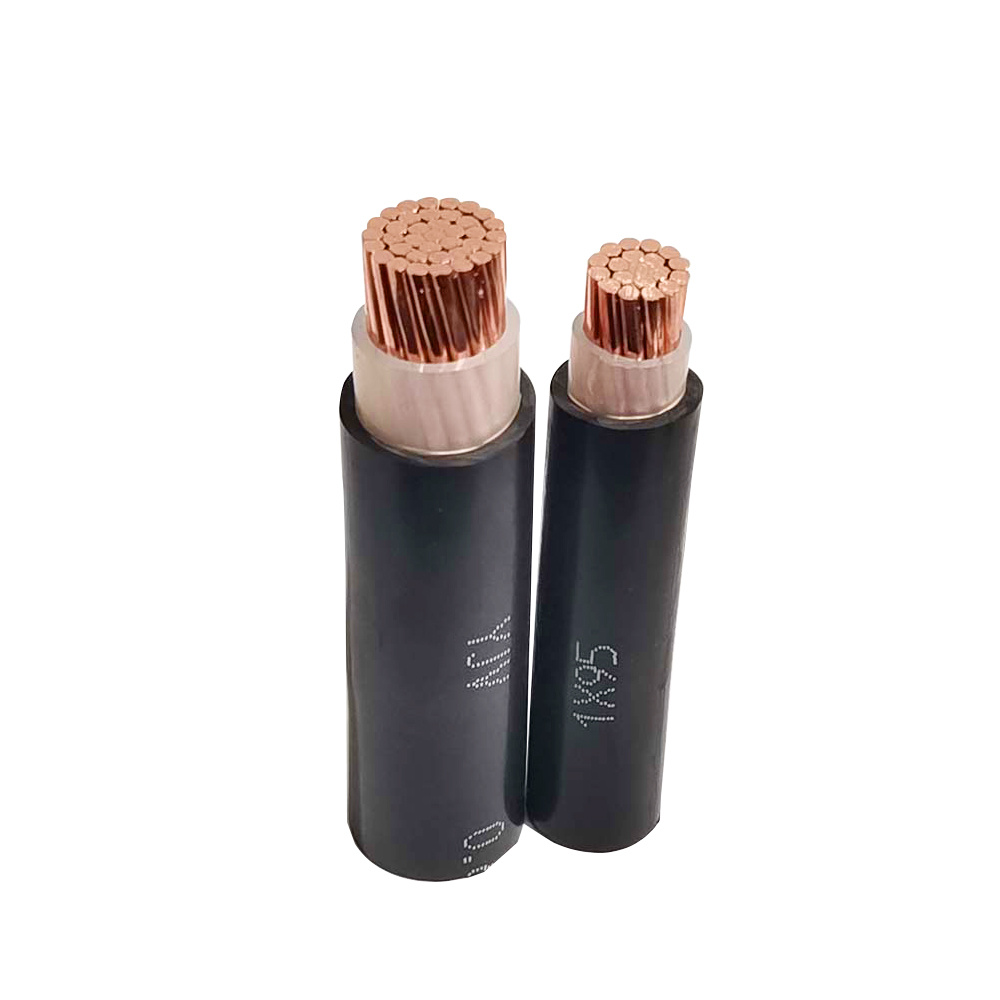

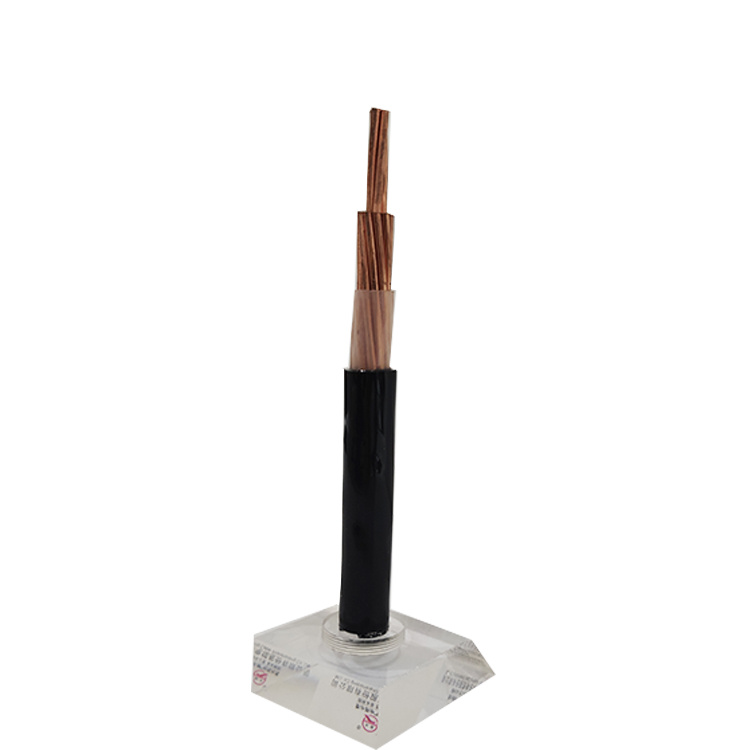

Medium high voltage mv single three 1 3 core undeground copper aluminium power cable
Our Medium Voltage Cable Standards
| MV Cable Standard | MV Standard Description |
| IEC 60502-2 | Cables with extruded insulation with voltage rating between 6kV and 30kV |
| BS6622 | Armoured cable with PVC outer sheathing and voltage rating from 3.3/6kV to 19/33kV |
| BS7835 | Armoured cable with LSZH outer sheathing and voltage rating from 3.3/6kV to 19/33kV |
| BS7870-4.10 | Single core cables for distribution utilities with extruded insulation up to and including 11kV and 33kV |
| HD620 | Cables with extruded insulation and voltage ratings 3.6/6 (7.2)kV to 20.8/36 (42)kV (often seen in conjunction with IEC60502-2) |
| DIN VDE 0276 Part 620 | Distribution cables of nominal voltages 3.6kV to 20.8/36kV |
German MV Cable Nomenclature
| N | MV cable according to DIN VDE 0276 |
| A | Aluminium (Al) conductor |
| [blank] | Copper (Cu) conductor |
| 2X | Cross-linked polyethylene (XLPE) insulation |
| S | Screen of copper wires and copper tape, helically wound |
| SE | Screen of copper wires and copper tape over each individual core, helically wound |
| (F) | Longitudinal water tightness |
| (FL) | Longitudinal and transversal (Radial) water tightness |
| Y | Polyvinyl Chloride (PVC) sheath |
| 2Y | Polyethylene (PE) sheath |
| H | Low Smoke Zero Halogen (LSZH) sheath |
So NA2XSH would be a single core Aluminium conductor cable, with XLPE insulation, metallic screen, and LSZH outer sheathing, whilst an N2XSE(FL)2Y would be a 3 core Copper, XLPE, Copper screened cable with longitudinal and radial waterblocking and a PE (normally MDPE) sheathing.
Portuguese MV Cable Nomenclature
| X | Copper (Cu) Conductor |
| LX | Aluminium (Al) conductor |
| H | Cross-linked Polyethylene (XLPE) |
| I | Screen of copper tape |
| O | Screen of copper wires |
| 1A | Aluminium Tape Armour (for Single Core cables) |
| A | Steel Tape Armour (for Multi-Core cables) |
| 1R | Aluminium Wire Armour (for Single Core cables) |
| R | Steel Wire Armour (for Multi-Core cables |
| E | Polyethylene (PE) |
| V | Polyvinyl Chloride (PVC) |
| (be) | Waterblocking yarns (over Metallic screen) |
| (cbe) | Conductor Waterblocking |
This means a cable named LXHIO1AE would be a single core Aluminium conductor cable with XLPE insulation, Copper wire and tape screen, Aluminium Wire Armour and PE sheathing and an XHIV cable would have a Copper conductor, XLPE insulation, Copper tape screen, and PVC sheath.
Cable Parameters for reference (Single Core)
|
Nom. Cross-Section Area
|
|
Armoured Cables
|
||||||
|
Nom. Insulation Thickness
|
Copper Tape Screen Area
|
Nom. Bedding Thickness
|
Nom. Armour Wire Diameter
|
Nom. Sheath Thickness
|
Approx. Overall Diameter
|
Approx. Weight
|
||
|
CU
|
AL
|
|||||||
|
mm^2
|
mm
|
mm^2
|
mm
|
mm
|
mm
|
mm
|
kg/km
|
kg/km
|
|
50
|
8
|
6.7
|
1.2
|
2
|
2.2
|
41
|
2300
|
1980
|
|
70
|
8
|
7.1
|
1.2
|
2
|
2.2
|
42.6
|
2560
|
2120
|
|
95
|
8
|
7.5
|
1.2
|
2
|
2.3
|
44.4
|
2890
|
2290
|
|
120
|
8
|
7.9
|
1.2
|
2
|
2.3
|
45.8
|
3200
|
2430
|
|
150
|
8
|
8.2
|
1.3
|
2.5
|
2.4
|
48.9
|
3760
|
2830
|
|
185
|
8
|
8.6
|
1.3
|
2.5
|
2.5
|
50.6
|
4180
|
3010
|
|
240
|
8
|
9.2
|
1.3
|
2.5
|
2.5
|
53.1
|
4830
|
3270
|
|
300
|
8
|
9.7
|
1.4
|
2.5
|
2.6
|
55.5
|
5540
|
3630
|
|
400
|
8
|
10.3
|
1.4
|
2.5
|
2.7
|
59.4
|
6680
|
4130
|
|
500
|
8
|
11
|
1.5
|
2.5
|
2.8
|
62.2
|
7790
|
4690
|
|
630
|
8
|
11.8
|
1.5
|
2.5
|
2.9
|
67.4
|
9290
|
5220
|
