Diesel Locomotive Cable 1/0 AWG 2kv

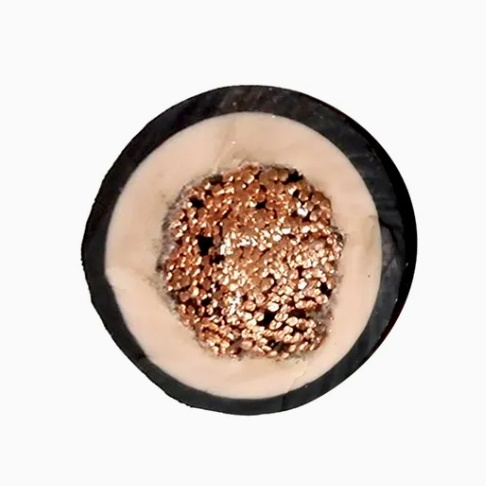

Diesel Locomotive Cable 1/0 AWG 2kv image

Get Latest Price Request a quote

Product Details

Conductor Material

Copper

Sheath Material

PVC

Insulation Material

Epr

Material Shape

Round Wire

Range of Application

UL 2806 Standard

Brand

Hebei Huatong

Production Name

Dlo

Core

Single Core

Transport Package

Standard Packing

Specification

14AWG-1000kcmil

Trademark

RENDA

Origin

Tangshan, Hebei Province

HS Code

8544492100

Production Capacity

500km/Month

Product Description

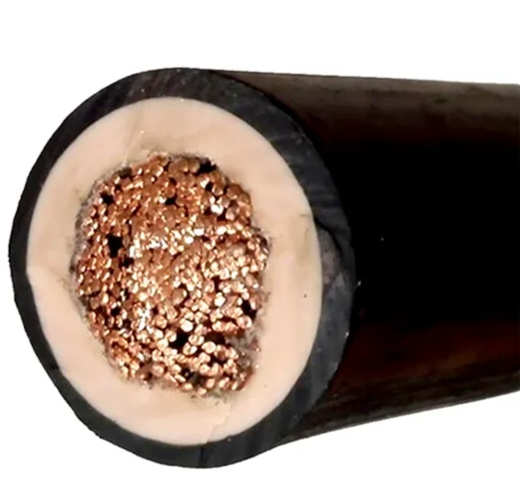

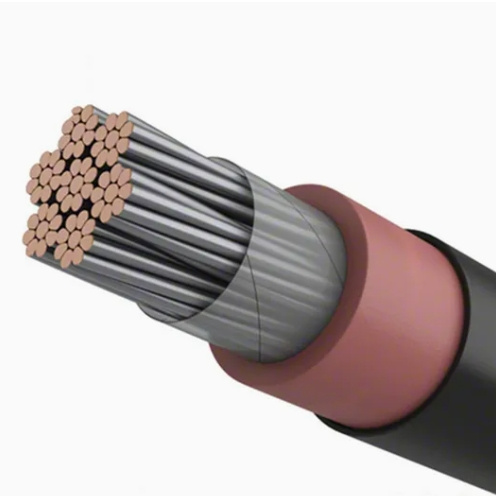

600V DLO 2/0 tinned copper conductor EPR insulation and CPE sheath power cable

Type DLO is especially suited to supply power to traction motors of diesel-electric locomotives. It is also recommended as a portable cable for drilling rigs, on-shore or off-shore, railroad and transit car wiring, electric earth-moving equipment, in shipyard applications, arc welder supply leads, power and control jumper cable, and motor leads. The cable is suitable for use in wet or dry areas, conduits, ducts, troughs or trays, and where superior electrical properties are desired. The maximum continuous conductor temperature for normal operation is 90°C in wet or dry locations. DLO resists oils, acids, alkalines, heat, flame, and has abrasion resistance.

UL2806

Conductor: Stranded Tinned copper
Insulation: EPR insulated
Jacket: CPE sheathed

UL File No.:

E473596

Voltage:

2000V or 600V

Working temperature:

–40°C to + 90°C

Performance:

RoHS Compliant

UL listed as Type RHH-RHW-2 per UL 44

Meets FT-4 / IEEE 1202 and VW-1 Flame Tests

Oil Resistant / Sunlight Resistant / -40 ºC

600V

Size AWG /Kcmil	Conductor	Nominal Insulation		Nominal		Overall	Weight	Max. DC resistance at 20C (Ω/km)
	Diameter	Thickness		Thickness		Diameter
	mm	mil	mm	mil	mm	mm	kg/km
14	1.8	60	1.52	15	0.38	5.8	59	9.250
12	2.3	60	1.52	15	0.38	6.2	74	5.820
10	2.7	60	1.52	15	0.38	6.7	91	3.660
8	3.6	60	1.52	30	0.76	8.3	143	2.350
6	4.6	60	1.52	30	0.76	9.3	201	1.480
4	6.5	60	1.52	30	0.76	11.2	308	0.928
2	7.7	60	1.52	30	0.76	12.5	402	0.590
1	9.3	75	1.91	45	1.14	15.5	593	0.467
1/0	10.5	75	1.91	45	1.14	16.8	731	0.370
2/0	11.6	75	1.91	45	1.14	17.8	842	0.297
3/0	13.2	75	1.91	45	1.14	19.5	1047	0.236
4/0	14.9	75	1.91	45	1.14	21.2	1288	0.187
262.6	16.5	90	2.29	45	1.14	23.5	1568	0.146
313	18.0	90	2.29	45	1.14	25.0	1839	0.122
373.7	19.7	90	2.29	45	1.14	26.7	2151	0.102
444	21.6	90	2.29	45	1.14	28.6	2532	0.086
535.3	23.7	105	2.67	60	1.52	32.2	3098	0.072
646	25.9	105	2.67	60	1.52	34.5	3633	0.060
777.7	28.5	105	2.67	60	1.52	37.1	4314	0.050
930	31.2	105	2.67	60	1.52	39.7	5076	0.042
1111.1	34.1	105	2.67	60	1.52	42.6	5977	0.035

2KV

Size AWG /Kcmil	Conductor	Nominal Insulation		Nominal		Overall	Weight	Max. DC resistance at 20C (Ω/km)
	Diameter	Thickness		Thickness		Diameter
	mm	mil	mm	mil	mm	mm	kg/km
14	1.8	60	1.52	15	0.38	5.8	59	9.250
12	2.3	60	1.52	15	0.38	6.2	74	5.820
10	2.7	60	1.52	15	0.38	6.7	91	3.660
8	3.6	60	1.52	30	0.76	8.3	143	2.350
6	4.6	60	1.52	30	0.76	9.3	201	1.480
4	6.5	60	1.52	30	0.76	11.2	308	0.928
2	7.7	60	1.52	30	0.76	12.5	402	0.590
1	9.3	75	1.91	45	1.14	15.5	593	0.467
1/0	10.5	75	1.91	45	1.14	16.8	731	0.370
2/0	11.6	75	1.91	45	1.14	17.8	842	0.297
3/0	13.2	75	1.91	45	1.14	19.5	1047	0.236
4/0	14.9	75	1.91	45	1.14	21.2	1288	0.187
262.6	16.5	90	2.29	45	1.14	23.5	1568	0.146
313	18.0	90	2.29	45	1.14	25.0	1839	0.122
373.7	19.7	90	2.29	45	1.14	26.7	2151	0.102
444	21.6	90	2.29	45	1.14	28.6	2532	0.086
535.3	23.7	105	2.67	60	1.52	32.2	3098	0.072
646	25.9	105	2.67	60	1.52	34.5	3633	0.060
777.7	28.5	105	2.67	60	1.52	37.1	4314	0.050
930	31.2	105	2.67	60	1.52	39.7	5076	0.042
1111.1	34.1	105	2.67	60	1.52	42.6	5977	0.035

We are China Diesel Locomotive Cable 1/0 AWG 2kv manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
