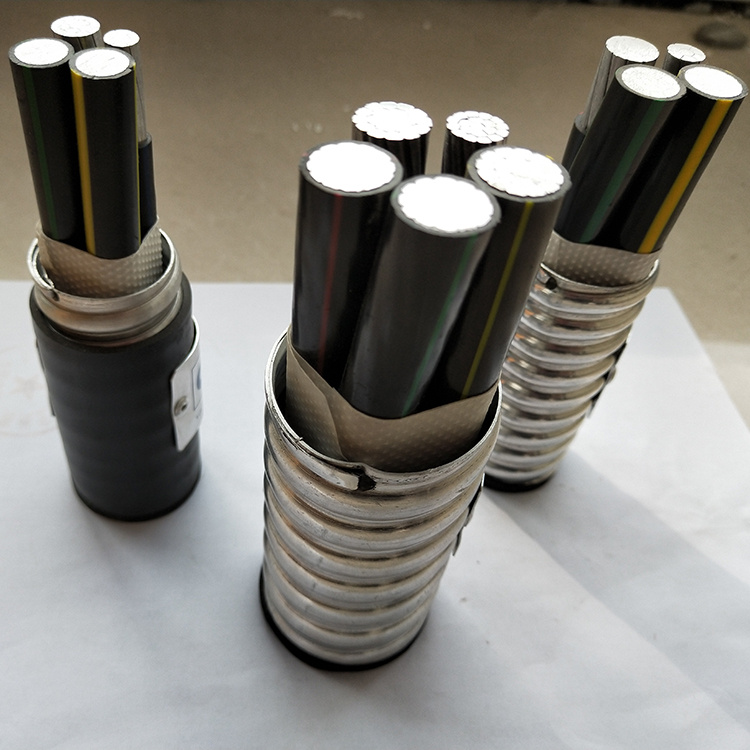

cUL CSA Approval Aluminum Interlock Armoured Electric Building Cable 2/0 4c Acwu 600V 1000V
cUL CSA Approval Aluminum Interlock Armoured Electric Building Cable 2/0 4c Acwu 600V 1000V image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
Hot Sale Canada Electric Building Wire ACWU90 Wire
Largest UL and CUL CSA Cable Manufacturer
Top 10 Cable manufactuer in China.
Largest Rubber cable manufacturer in China.
Leading ESP cable manufacturer.
Professional OEM manufacturer.
With UL,TUV,KEMA,CE,BV,PSB,SABS,MSHA,GL,NKK,KR,DNV,CCS certifications.
With TUV TYPE TESTING REPORT.
With ISO9001,ISO14001,ISO45001 syetem certifications.
ISO 17025 standard and CNAS approval laboratory.
2000+ employees, 2 factory in China .
For open and concealed wiring in dry locations only.For use in cabletroughs and ventilated flexible cable ways in dry locations only. Minimum recommended installation temperature minus 40°C (with suitable handling procedures).Maximum conductor temperature 90°C. Approved for use with ceiling fixtures.Armoured cable for commercial, industrial and apartment use
Structure:
- Conductor: Copper conductor with Copper grounding wire 14AWG to 2AWG
or aluminium alloy 8000series ACM with AL grounding wire 6AWG to 750MCM
- Insulation: cross-linked polyethylene insulation (RW90 XLPE
- Assemble wrap: Conductor assembly paper wrapped
- Armored : bare interlocked aluminum armor.
5. Sheath: PVC Sheath
6. Number of conductor: Two, three or four core round laid
Standard: National : CSA C22.2 N° 2556; CSA C22.2 N° 51
UL File No.: E466697
Voltage:600V
| Phase Conductor | Bonding Conductor | Phase conductor single wire numbers | Nominal thickness of XLPE insulation | Approx. diameter after assembly | Nominal thickness of inner sheath | Approx. Diameter armoured | Nominal thickness of outer sheath | Approx. O.D. of cable | |
| Core | AWG or Kcmil | AWG or Kcmil | Nos. | mm | mm | mm | mm | mm | mm |
| 3 | 14 | 14 | 7 | 0.76 | 7.3 | 1.14 | 14.7 | 1 | 17 |
| 3 | 12 | 14 | 7 | 0.76 | 8.3 | 1.14 | 15.7 | 1 | 18 |
| 3 | 10 | 12 | 7 | 0.76 | 9.7 | 1.14 | 17 | 1 | 19 |
| 3 | 8 | 10 | 7 | 1.14 | 12.3 | 1.52 | 20.4 | 1 | 22 |
| 3 | 6 | 8 | 7 | 1.14 | 14.2 | 1.52 | 22.3 | 1 | 24 |
| 3 | 4 | 8 | 7 | 1.14 | 16.6 | 1.52 | 24.8 | 1 | 27 |
| 3 | 3 | 6 | 7 | 1.14 | 17.9 | 2.03 | 27.1 | 1 | 29 |
| 3 | 2 | 6 | 7 | 1.14 | 19.6 | 2.03 | 28.8 | 1 | 31 |
| 3 | 1 | 6 | 19 | 1.4 | 22.4 | 2.03 | 31.6 | 1 | 34 |
| 3 | 1/0 | 6 | 19 | 1.4 | 24.5 | 2.03 | 33.6 | 1 | 36 |
| 3 | 2/0 | 6 | 19 | 1.4 | 26.7 | 2.03 | 35.8 | 1 | 38 |
| 3 | 3/0 | 4 | 19 | 1.4 | 29.2 | 2.03 | 38.4 | 1.2 | 41 |
| 3 | 4/0 | 4 | 19 | 1.4 | 32.1 | 2.03 | 41.3 | 1.2 | 44 |
| 3 | 250 | 4 | 37 | 1.65 | 35.7 | 2.03 | 44.8 | 1.2 | 47 |
| 3 | 300 | 4 | 37 | 1.65 | 38.4 | 2.79 | 49.1 | 1.2 | 51 |
| 3 | 350 | 3 | 37 | 1.65 | 40.9 | 2.79 | 51.6 | 1.2 | 54 |
| 3 | 400 | 3 | 37 | 1.65 | 43.3 | 2.79 | 54 | 1.2 | 56 |
| 3 | 450 | 3 | 37 | 1.65 | 45.5 | 2.79 | 56.2 | 1.2 | 59 |
| 3 | 500 | 3 | 37 | 1.65 | 47.5 | 2.79 | 58.2 | 1.5 | 61 |
| 3 | 550 | 3 | 37 | 2.03 | 51.3 | 2.79 | 62 | 1.5 | 65 |
| 3 | 600 | 2 | 61 | 2.03 | 53.4 | 2.79 | 64.1 | 1.5 | 67 |
| 3 | 650 | 2 | 61 | 2.03 | 55.1 | 2.79 | 65.8 | 1.5 | 69 |
| 3 | 700 | 2 | 61 | 2.03 | 56.9 | 2.79 | 67.6 | 1.5 | 71 |
| 3 | 750 | 2 | 61 | 2.03 | 58.6 | 2.79 | 69.3 | 1.5 | 72 |
Company profile Certification Whorkshop First class testing equipment
FAQ
1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us ortell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Welcome to contact me for more information!
We are China cUL CSA Approval Aluminum Interlock Armoured Electric Building Cable 2/0 4c Acwu 600V 1000V manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
