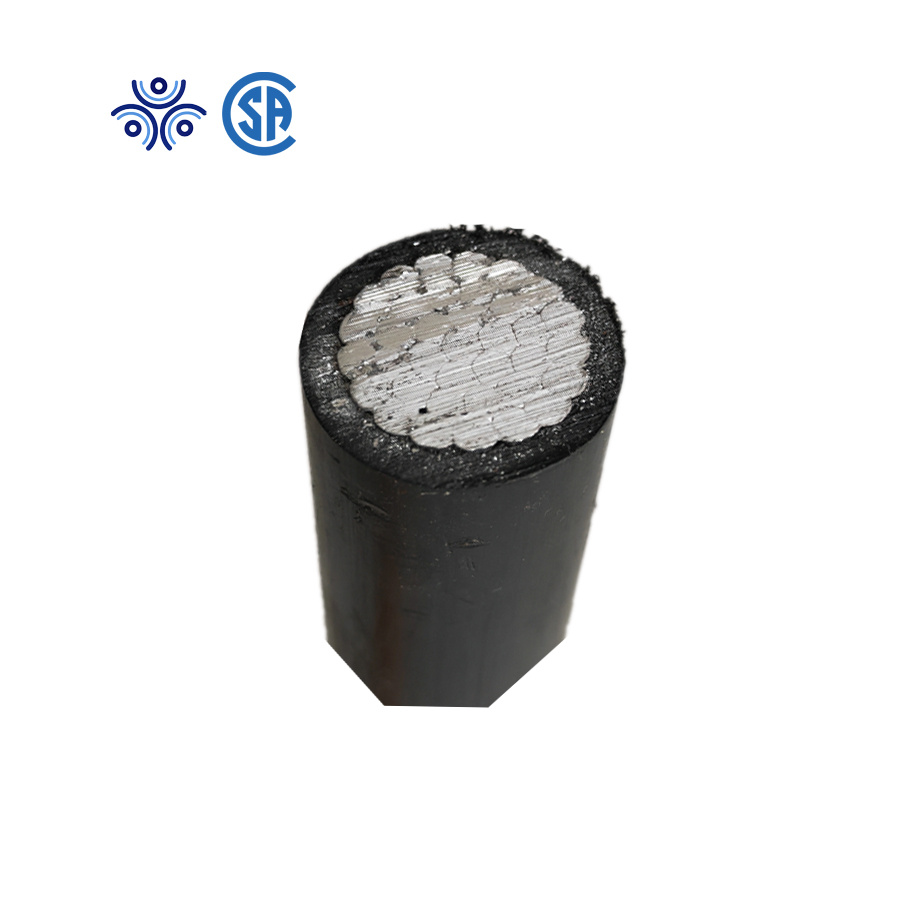

CSA Wire Approved Electrical RW90 Rwu90 Copper Conductor 600V 1kv 2kv Industrial Lighting or Power Wiring
CSA Wire Approved Electrical RW90 Rwu90 Copper Conductor 600V 1kv 2kv Industrial Lighting or Power Wiring image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
RW90/RWU90
AL/CU SINGLE CORE BUILDING WIRE 600V
Application:
For open wiring and raceways (except cable troughs and ventilated flexible cable way) in dry or
wet locations.For exposed wiring where exposed to weather with sunlight-resistant insulation.
Approved for use with ceiling fixtures.
Structure:
- Conductor: Annealed bare copper wires or compact aluminum 8000 series wires, class B.
- Insulation: Cross-Linked Polyethylene (XLPE)
Colour Coding: Black; other colors available upon request.
Standard: CSA Standard C22.2 No.38
Working temperature: -40ºC Min, 90ºC Max
Voltage: 600V ,1000V or 2000V
c(UL) file No: E466693 CSA File No.: 271587
Printing :
CU conductor: HT CABLES CSA 271587 TYPE RW90 XLPE ***AWG -40C SR 600V ****M
AL conductor: HT CABLES CSA 271587 TYPE RW90 AL XLPE ***AWG–40C SR 600V ****M
Technical data:
RW90 600V
| Conductor | Insulation thickness | Approx. OD (mm) | ||
| AWG/KCMIL | Nos of strands(CU) | Nos of strands(AL) | (mm) | CU |
| 14 | 1 or 7 | 1 | 0.76 | 3.4 |
| 12 | 1 or 7 | 1 | 0.76 | 3.9 |
| 10 | 1 or 7 | 1 | 0.76 | 4.5 |
| 8 | 19 | 19 | 1.14 | 6.0 |
| 6 | 19 | 19 | 1.14 | 7.0 |
| 4 | 19 | 19 | 1.14 | 8.2 |
| 2 | 19 | 19 | 1.14 | 9.8 |
| 1 | 19 | 19 | 1.4 | 10.9 |
| 1/0 | 19 | 19 | 1.4 | 11.9 |
| 2/0 | 19 | 18 | 1.4 | 12.9 |
| 3/0 | 19 | 19 | 1.4 | 14.2 |
| 4/0 | 19 | 19 | 1.4 | 15.6 |
| 250 | 37 | 37 | 1.65 | 17.2 |
| 350 | 37 | 37 | 1.65 | 19.8 |
| 400 | 37 | 37 | 1.65 | 20.9 |
| 500 | 37 | 37 | 1.65 | 23.1 |
| 750 | 61 | 61 | 2.03 | 28.3 |
| 1000 | 61 | 61 | 2.03 | 32.1 |
All dimensions are nominal and subject to normal manufacturing tolerances
RW90 1000V
| Conductor | Insulation thickness | Approx. OD | ||
| AWG/KCMIL | Nos of strands(CU) | Nos of strands(AL) | (mm) | (mm) |
| 14 | 1 or 7 | / | 1.14 | 4.1 |
| 12 | 1 or 7 | / | 1.14 | 4.6 |
| 10 | 1 or 7 | / | 1.14 | 5.2 |
| 8 | 19 | 19 | 1.14 | 6.0 |
| 6 | 19 | 19 | 1.52 | 7.8 |
| 4 | 19 | 19 | 1.52 | 9.0 |
| 2 | 19 | 19 | 1.52 | 10.5 |
| 1/0 | 19 | 19 | 2.03 | 13.2 |
| 2/0 | 19 | 19 | 2.03 | 14.2 |
| 3/0 | 19 | 19 | 2.03 | 15.5 |
| 4/0 | 19 | 19 | 2.03 | 16.9 |
| 250 | 37 | 37 | 2.28 | 18.5 |
| 350 | 37 | 37 | 2.28 | 21.1 |
| 400 | 37 | 37 | 2.28 | 22.2 |
| 500 | 37 | 37 | 2.28 | 24.4 |
| 750 | 61 | 61 | 2.28 | 28.8 |
| 1000 | 61 | 61 | 2.28 | 32.6 |
All dimensions are nominal and subject to normal manufacturing tolerances
The largest UL cable manufacturer in China
Top 10 Cable manufactuer in China.
Largest Rubber cable manufacturer in China.
Leading ESP cable manufacturer.
Professional OEM manufacturer.
With UL,TUV,KEMA,CE,BV,PSB,SABS,MSHA,GL,NKK,KR,DNV,CCS certifications.
With TUV TYPE TESTING REPORT.
With ISO9001,ISO14001,ISO45001 syetem certifications.
ISO 17025 standard and CNAS approval laboratory.
We are China CSA Wire Approved Electrical RW90 Rwu90 Copper Conductor 600V 1kv 2kv Industrial Lighting or Power Wiring manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: CSA Wire, Hebei Huatong Wires & Cables Group Co., Ltd., Rwu90 CableSimilar Or Related
-
-

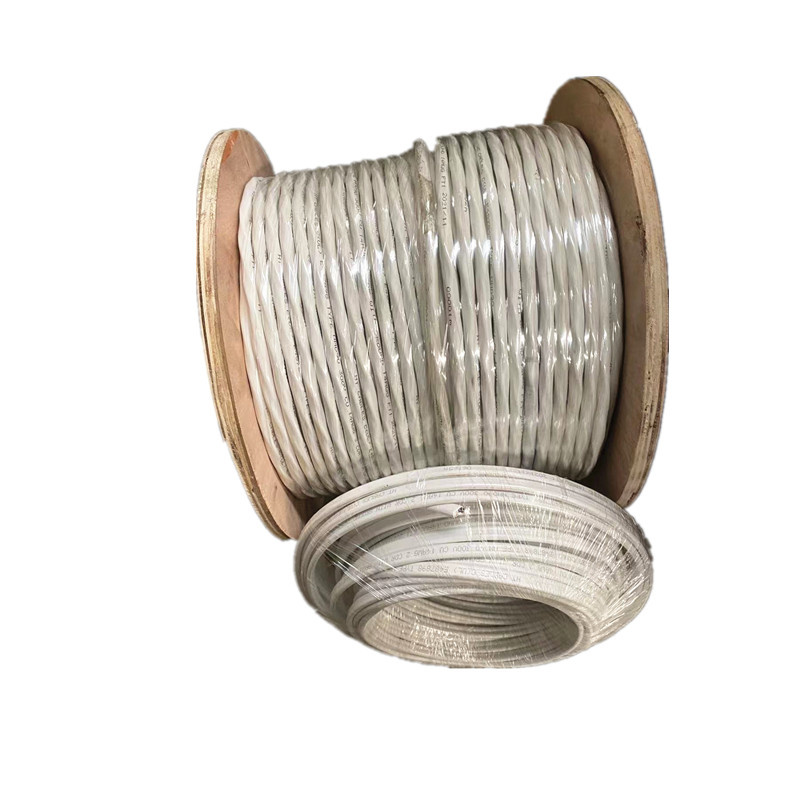

Solid UL Approved Plastic Spools Manufacturer Nmd90 14/2 12/2 Wire
-

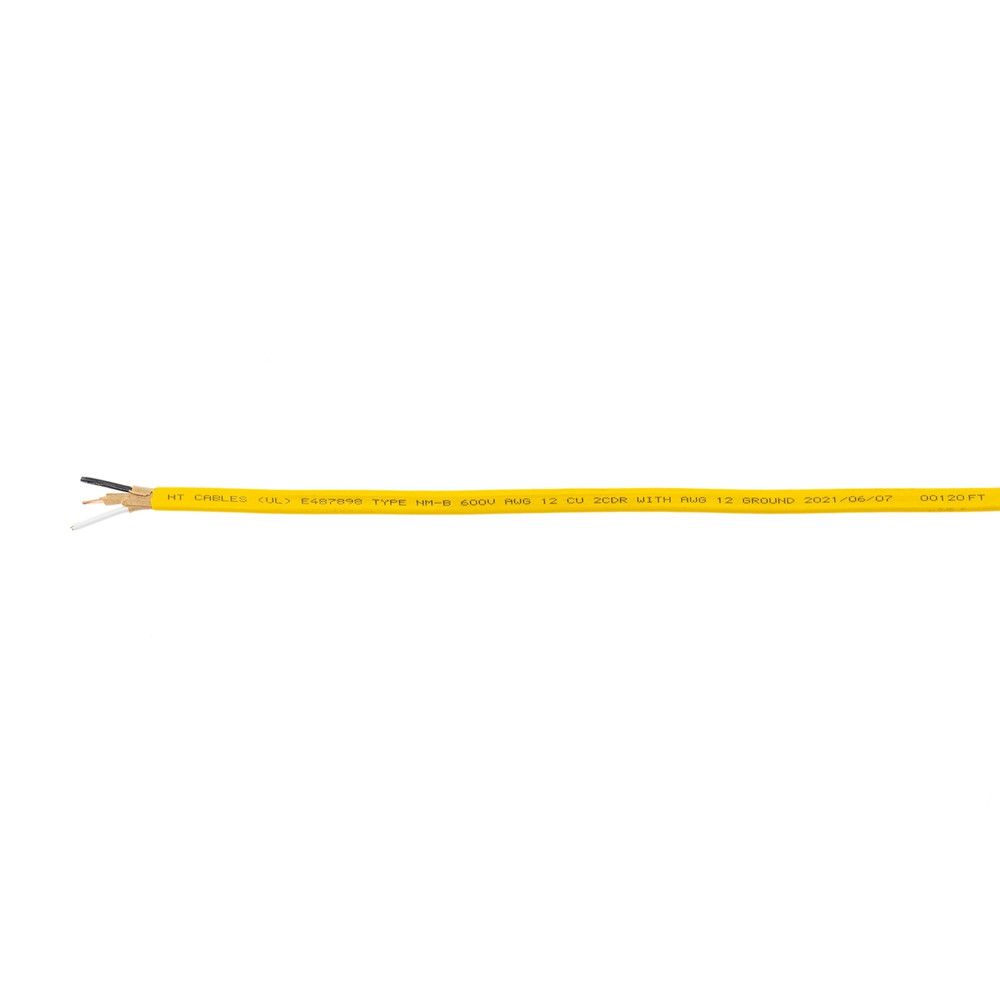

Solid 12/2 10/2 14/3 12/3 10/3 8/3 6/3 Wire UL Certificate NMB 14/2
-

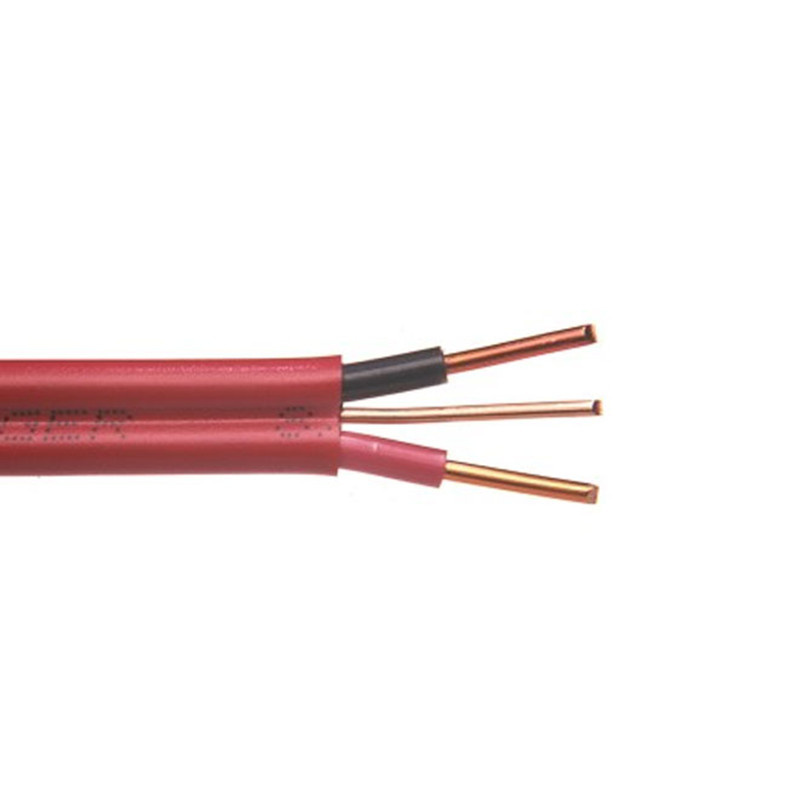

cUL Approved 6/3 12/2 Nmd90 75m Electrical Wire for Canada
-

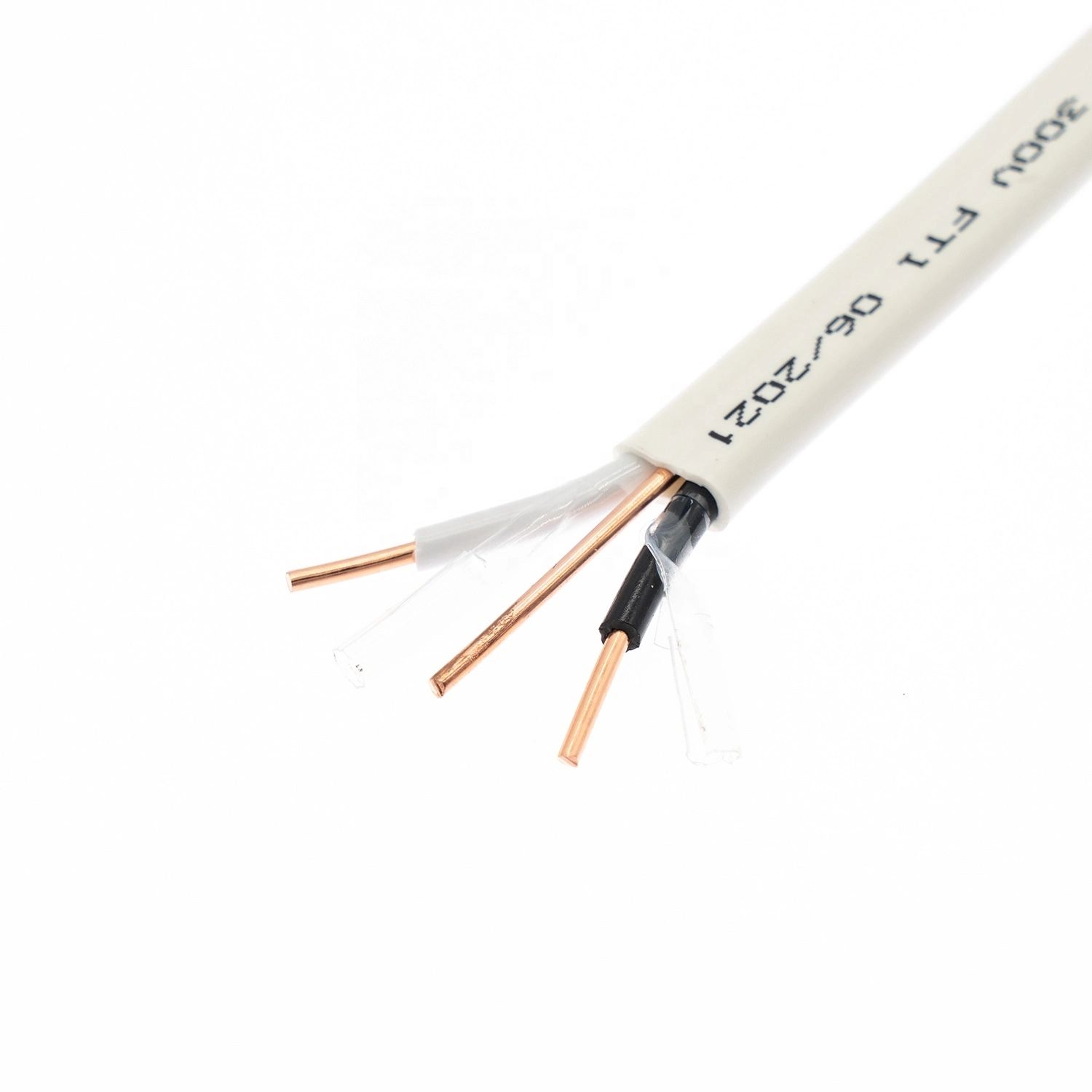

Cheap Price 14 2 12 2 Electrical Copper Conductor Cable Canadian Standard 6/3 Nmd90 Wire 150m Roll 75m Roll
