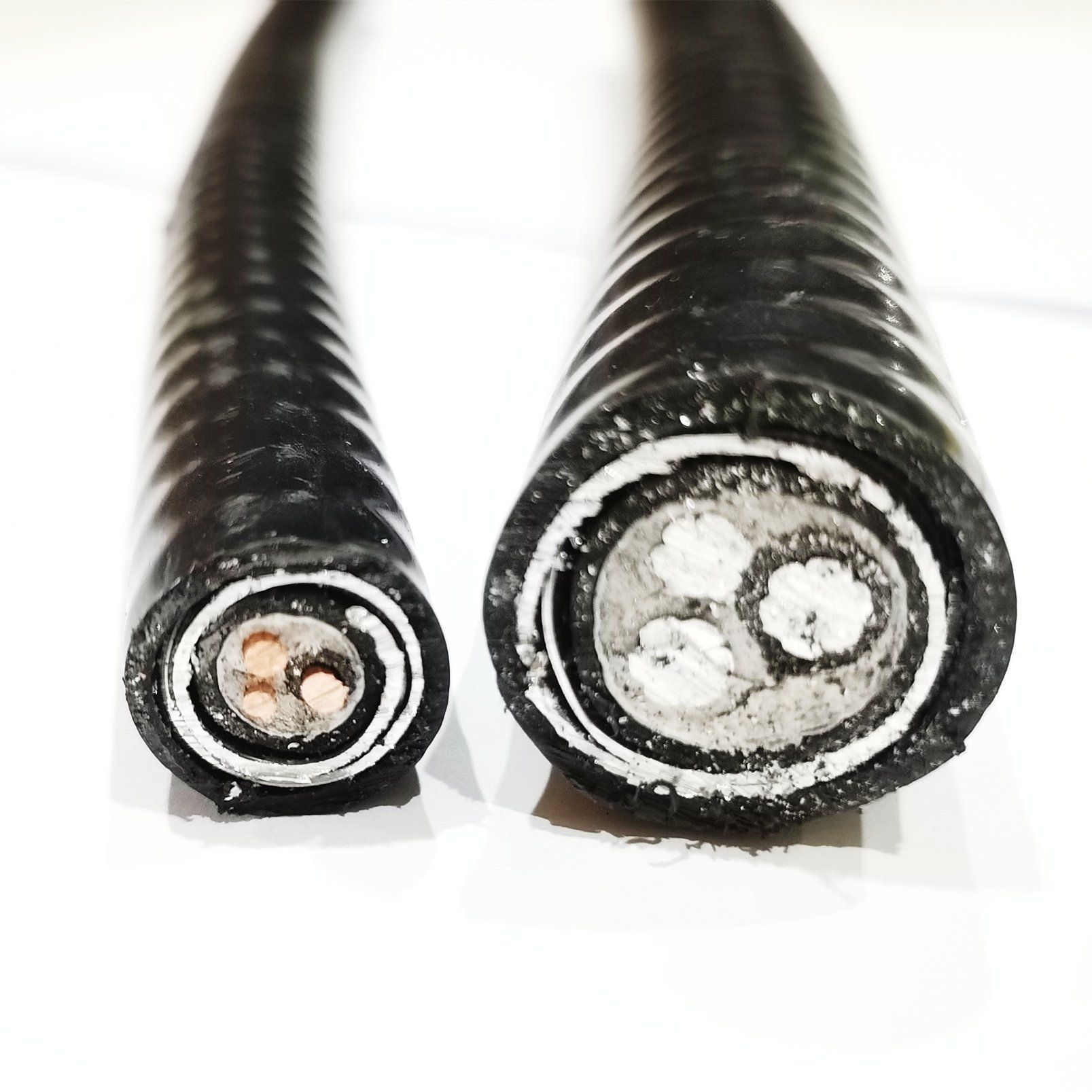

CSA Multi-Conductor (1000V) Teck 90 Armoured Power Cable

1. Conductor: annealed bare copper wires, or compact aluminum 8000 series wires, class B.

2. Insulation: Cross-linked Polyethylene (XLPE) Type RW90

Color: Black, white for 2 conductors;

      Black ,red, blue for 3 conductors;

      Black, red, blue, white for 4 conductors.

3. Bonding conductor: annealed bare copper wires, or compact aluminum 8000 series wires, class B.

4. Inner Jacket: Flame-retardant and moisture resistant Polyvinyl Chloride (PVC)

5. Armour: Aluminum Interlock Armour (AIA);

6. Outer-jacket: Low-temperature, moisture and sunlight resistant Polyvinyl Chloride (PVC), black


• Application:

  Suitable for use in exposed or concealed wiring in dry or wet locations, in

  ventilated or ladder type cable trays in dry or wet conditions, on walls or beams, or directly buried.

  Suitable for use in hazardous locations: Class I – Groups A, B, C and D, Class II – Groups E, F and G, Class III – All Groups



  Standard: CSA C22.2 No. 131, Type TECK90 cable;

                    CSA C22.2 No. 38, Thermoset insulated wires and cables (Type RW90)

         FT4 – Flame Test (70,000 BTU/Hr – Vertical Tray Flame Test)

  Working temperature: -40ºC to +90ºC

   Voltage: 600V 1000V

   CUL file No: E466697



  Marking on the surface of cable:

  HT CABLES 600V 3/C 1/0AWG+6AWG CU/XLPE/PVC/AIA/PVC TECK90 ARMOURED CABLE  2023/01****M

• Packing Length: 300m, 600m or other length. Plastic drums or plywood drums.


  AWG/MCM	Conductors	Ground Gauge	Insulation Thickness	Nominal OD over Armor	Outside Diameter Inches	Material Weight (Lbs./M’)	Material Weight (KG/KM)
  8	3	10	0.045	0.86	0.94	482	717
  8	4	10	0.045	0.92	1	570	848
  6	3	8	0.06	1.03	1.13	695	1034
  6	4	8	0.06	1.04	1.25	883	1314
  4	3	8	0.06	1.16	1.25	950	1413
  4	4	8	0.06	1.18	1.35	1161	1727
  2	3	6	0.06	1.28	1.37	1300	1934
  2	4	6	0.06	1.45	1.46	1568	2333
  1/0	3	6	0.08	1.56	1.68	1871	2784
  2/0	3	6	0.08	1.65	1.77	2177	3239
  3/0	3	4	0.08	1.75	1.87	2619	3897
  4/0	3	4	0.08	1.86	1.98	3176	4726
  350	3	3	0.09	2.26	2.4	4989	7424
  500	3	3	0.09	2.52	2.66	6706	9979
