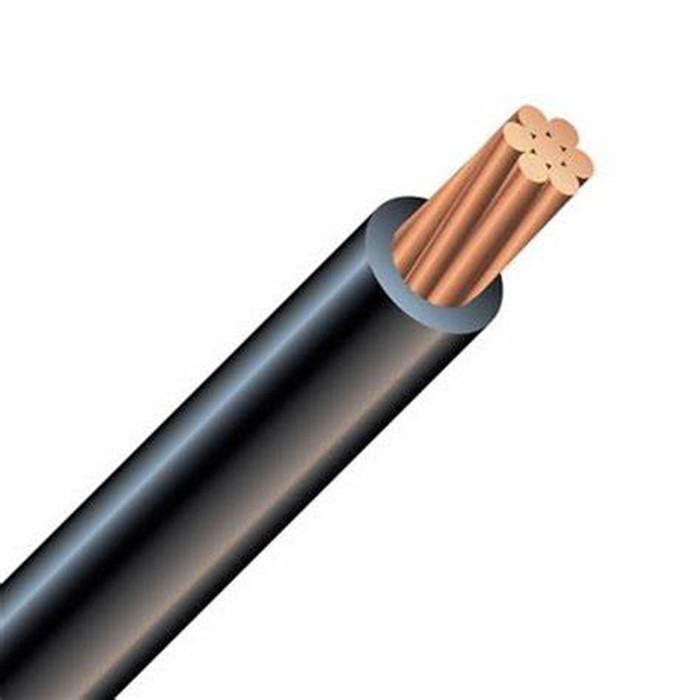

CSA Copper or Aluminum Alloy Conductor 10AWG Rwu90 8AWG Wire
CSA Copper or Aluminum Alloy Conductor 10AWG Rwu90 8AWG Wire image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
TYPE RWU90/RW90
Application:
RWU90 is designed for direct earth burial (with protection as required by the inspecting authority). For service entrance above or below ground.The minimum recommended installation temperature is minus 40°C (with suitable handling procedures). Maximum conductor temperature is 90°C. RWU90 conductors jackets which reduces the coefficient of friction” allowing cables to be installed without external lubricants” resulting in reduced labour and materials costs.
Standards:
RWU90 cables meet or exceed the following requirements:
• CSA Standard C22.2 No. 38
• Optional: CSA FT1 fl ame test rating
• Optional: CSA FT4 flame test rating and TC rating for 1/0 AWG and larger (Minimum order quantities may apply for optional features.)
Construction:
Single copper conductor with extra thickness on the moisture resistant” low temperature” cross linked polyethylene insulation.
- Rated at 1000 volts.
- RWU90 conductors are SR rated for sunlight resistance in all standard colours.
- Standard colours are available in black” white” red” blue and green.
| Conductor | Allowable Ampacities | |||||
| Size (AWG or kcmil) | No. of Strands | Insulation Thickness (mils) | Nom. OD (mils) | Nominal Total Weight (lbs/1000′) | Allowable Ampacity at 90C Direct Buried | Allowable Ampacity at 60C |
| 14 AWG | 7 | 60 | 196 | 25 | 25* | 20* |
| 12 AWG | 7 | 60 | 217 | 34 | 30* | 25* |
| 10 AWG | 7 | 60 | 239 | 48 | 40* | 30* |
| 8 AWG | 7 | 70 | 312 | 79 | 55 | 40 |
| 6 AWG | 7 | 70 | 348 | 114 | 75 | 55 |
| 4 AWG | 7 | 70 | 395 | 168 | 95 | 70 |
| 3 AWG | 7 | 70 | 422 | 206 | 115 | 85 |
| 2 AWG | 7 | 70 | 453 | 253 | 130 | 95 |
| 1 AWG | 19 | 95 | 522 | 314 | 145 | 110 |
| 1/0 AWG | 19 | 78 | 562 | 394 | 243** | 125 |
| 2/0 AWG | 19 | 95 | 596 | 475 | 274** | 145 |
| 4/0 AWG | 19 | 95 | 700 | 740 | 360** | 195 |
| 250 KCMIL | 37 | 93 | 774 | 876 | 383** | 215 |
| 350 KCMIL | 37 | 881 | 1191 | 470** | 260 | |
| 500 KCMIL | 37 | 1009 | 1674 | 548** | 320 | |
| 600 KCMIL | 61 | 125 | 1130 | 2020 | 600** | 350 |
| 750 KCMIL | 61 | 125 | 1218 | 2489 | 667** | 400 |
We are China CSA Copper or Aluminum Alloy Conductor 10AWG Rwu90 8AWG Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: Hebei Huatong Wires & Cables Group Co., Ltd., Rwu90 Cable, Rwu90 WireSimilar Or Related
-
Good Service Solar Power Plant 25 Years Cable 10AWG Wire Rwu90 8AWG
-

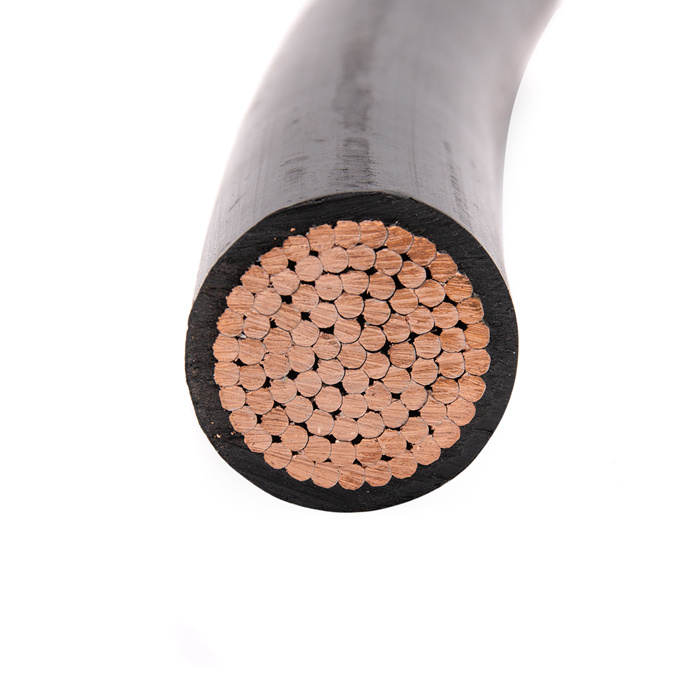

Cheap Price 25 Years High Performance RW Cable 8AWG Wire Rwu90 350mcm
-

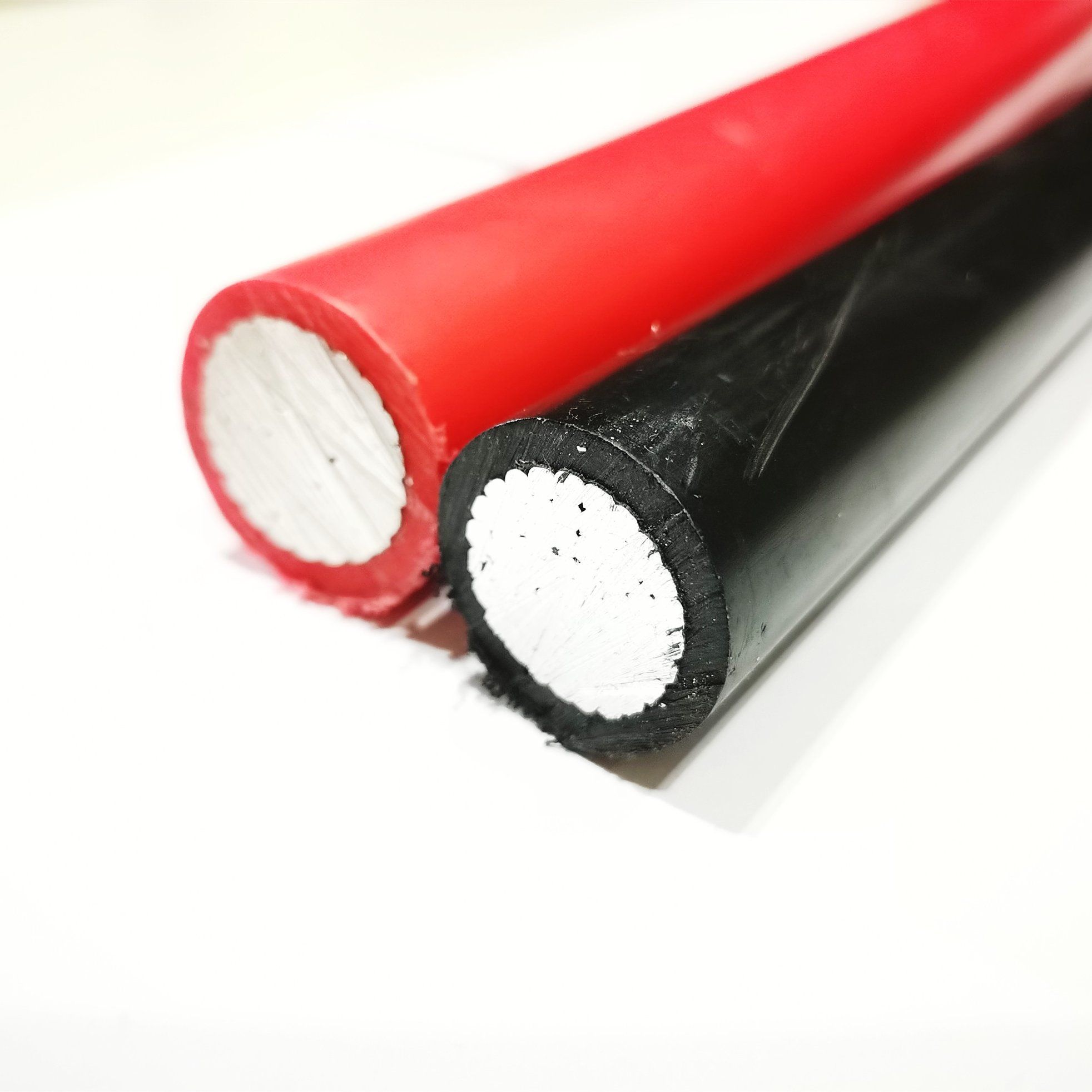

ODM Solar Power Plant 25 Years Cable Rpvu90 8AWG Wire Rwu90 500mcm
-
Solar Energy System Power Plant 8AWG Rwu90 Wire RW90 750mcm
-

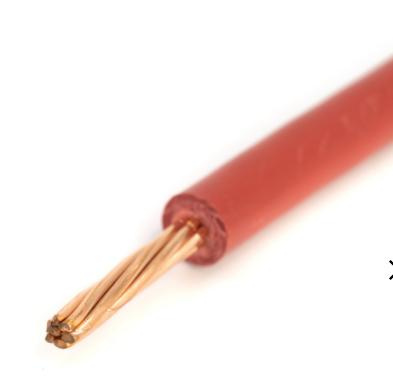

Copper or Aluminum Alloy Conductor Wholesale Price Wire Rpvu90 Rwu90
