Product Details

Model NO.

teck90

Application

Building Structure

Conductor Material

Copper

Sheath Material

PVC

Insulation Material

XLPE

Material Shape

Round Wire

Range of Application

Building Structure

Certification

cUL Certificate

Brand

Huatong

Product Name

Teck90 Cable

Certificate

cUL

Standard

CSA C22.2 No. 131

Core Material

RW90

Conductor

Copper

Voltage

600V

Working Temperature

-40--90

cUL File No

E466697

Armour

Aluminum Interlock Armour (Aia)

out Sheathed

PVC

Transport Package

300m/Drum

Specification

14/2 14/3 12/2 12/3 10/2 10/3 8/2 8/3 6/3

Trademark

REN DA

Origin

Tangshan, Hebei Province

HS Code

8544492100

Production Capacity

500km/Month

Product Description

600V 14/2 12/2 14/3 12/3 RW90 core armored teck90 cable for Canada market

Application:

Suitable for use in exposed or concealed wiring in dry or wet locations, inventilated or ladder type cable trays in dry or wet conditions, on walls or beams, or directly buried.Suitable for use in hazardous locations: Class I – Groups A, B, C and D, Class II – Groups E, F and G, Class III – All Groups

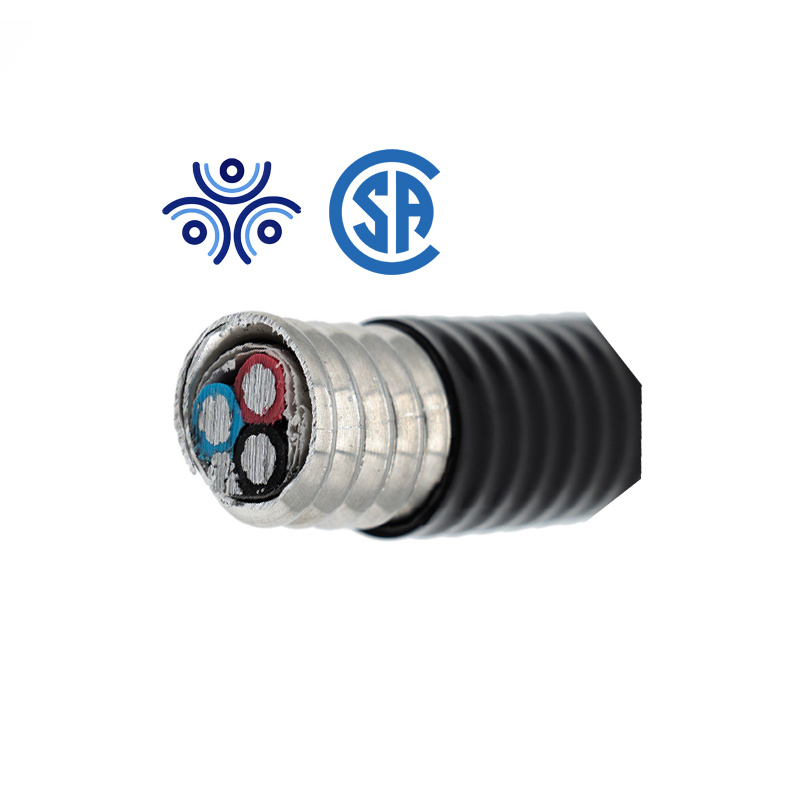

Structure:

1 Conductor: annealed bare copper wires, or compact aluminum 8000 series wires, class B.
2 Insulation: Cross-linked Polyethylene (XLPE) Type RW90Color: Black, white for 2 conductors;

Black ,red, blue for 3 conductors;

Black, red, blue, white for 4 conductors.

3 Bonding conductor: annealed bare copper wires, or compact aluminum 8000 series wires, class B.

4 Inner Jacket: Flame-retardant and moisture resistant Polyvinyl Chloride (PVC)

5 Armour: Aluminum Interlock Armour (AIA);
6 Outer-jacket: Low-temperature, moisture and sunlight resistant Polyvinyl Chloride (PVC), black
Standard: CSA C22.2 No. 131, Type TECK90 cable;

CSA C22.2 No. 38, Thermoset insulated wires and cables (Type RW90)

FT4 – Flame Test (70,000 BTU/Hr – Vertical Tray Flame Test)

Working temperature: -40ºC to +90ºC

Voltage: 600V

CUL file No: E466697

Marking on the surface of cable:

HT CABLES 600V 3/C 1/0AWG+6AWG CU/XLPE/PVC/AIA/PVC TECK90 ARMOURED CABLE 2023/01****M

Packing Length: 300m, 600m or other length. Plastic drums or plywood drums

DATA SHEET:

Phase Conductor		Bonding Conductor	Phase conductor single wire numbers	Nominal thickness of XLPE insulation	Approx. diameter after assembly	Nominal thickness of inner sheath	Approx. Diameter armoured	Nominal thickness of outer sheath	Approx. O.D. of cable
Core	AWG or Kcmil	AWG or Kcmil	Nos.	mm	mm	mm	mm	mm	mm
3	14	14	7	0.76	7.3	1.14	14.7	1.0	17
3	12	14	7	0.76	8.3	1.14	15.7	1.0	18
3	10	12	7	0.76	9.7	1.14	17.0	1.0	19
3	8	10	7	1.14	12.3	1.52	20.4	1.0	22
3	6	8	7	1.14	14.2	1.52	22.3	1.0	24
3	4	8	7	1.14	16.6	1.52	24.8	1.0	27
3	3	6	7	1.14	17.9	2.03	27.1	1.0	29
3	2	6	7	1.14	19.6	2.03	28.8	1.0	31
3	1	6	19	1.40	22.4	2.03	31.6	1.0	34
3	1/0	6	19	1.40	24.5	2.03	33.6	1.0	36
3	2/0	6	19	1.40	26.7	2.03	35.8	1.0	38
3	3/0	4	19	1.40	29.2	2.03	38.4	1.2	41
3	4/0	4	19	1.40	32.1	2.03	41.3	1.2	44
3	250	4	37	1.65	35.7	2.03	44.8	1.2	47
3	300	4	37	1.65	38.4	2.79	49.1	1.2	51
3	350	3	37	1.65	40.9	2.79	51.6	1.2	54
3	400	3	37	1.65	43.3	2.79	54.0	1.2	56
3	450	3	37	1.65	45.5	2.79	56.2	1.2	59
3	500	3	37	1.65	47.5	2.79	58.2	1.5	61
3	550	3	37	2.03	51.3	2.79	62.0	1.5	65
3	600	2	61	2.03	53.4	2.79	64.1	1.5	67
3	650	2	61	2.03	55.1	2.79	65.8	1.5	69
3	700	2	61	2.03	56.9	2.79	67.6	1.5	71
3	750	2	61	2.03	58.6	2.79	69.3	1.5	72
