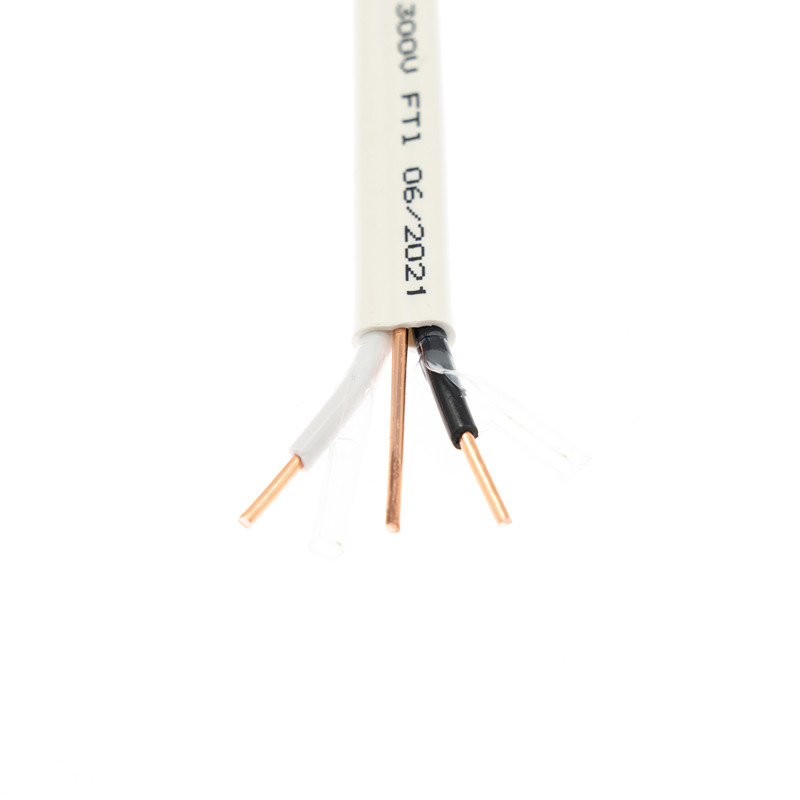

CSA 300V 14/2 14/3 12/2 Nmd90 Wire Building/Electrical Wire
CSA 300V 14/2 14/3 12/2 Nmd90 Wire Building/Electrical Wire image
Get Latest Price Request a quote
You May Like
Product Details
Model NO.
NMD90
Application
Heating
Conductor Material
Copper
Sheath Material
PVC
Insulation Material
PVC
Material Shape
Flat Wire
Certification
ISO9001, CE, CCC, RoHS, VDE
Voltage
600V
Certifictaion
cUL CSA
Package
Roll/Drum
Usage
Building Wire
Transport Package
Coils and Drums
Specification
14AWG, 12AWG, 10AWG, 8AWG, 6AWG
Trademark
HT CABLES
Origin
China
HS Code
8544492100
Production Capacity
200000m/Month
Product Description
14/2 12/2 12-2 14-2 nmd90 w/g Electric coper wire and cable 15ft 25ft 50ft 100ft 250ft 100′ 250′ roll with Ground
Applications:
NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations.
The maximum allowable conductor temperature is 90°C. The minimum recommended installation temperature is -25°C for two-conductor cables and -10°C for three-conductor cables (with suitable handling procedures). Material should be properly stored above 0°C for 24 hours prior to installation. The maximum voltage rating for all intended applications is 300 volts. Consult the Canadian Electrical Code1 for further
information related to applications.
Codes / Standards
NMD90 cables meet or exceed the following requirements:
CONSTRUCTION
Canada standard C22.2 No. 48 (non-metallic sheathed cable)
Canadian Electrical Code1
NMD90 cables are available as two- or three-conductor cables with a bare grounding conductor. It is
manufactured using annealed (soft) copper conductors-compressed standing for stranded conductors; a
heat-resistant thermoplastic polyvinyl chloride (PVC) insulation and nylon jacket for the individual conductors with a PVC jacket for the overall construction.
Conductors are white, black and red (for 3 conductor cables). Cable jackets are colour coded by size for quick identification in the Table below
JACKET COLOUR CODE – Typical Application Guide
•WHITE – General Residential Wiring
•RED – 2 Black and Red conductors – 208V-240V Circuits (no neutral)
•ORANGE – No. 10 AWG General Residential Wiring
•YELLOW – No. 12 AWG General Residential Wiring
•BLUE – No. 14 AWG – 2 black and white conductors – 120V Arc Fault Circuit Interupter Applications
CABLE PRINTING
12 AWG 2 CDRS BLACK/WHITE NMD90 NYLON 300 VOLTS FT1
NMD90 jackets which reduces the coefficient of friction, allowing cables to be installed without external
lubricants, resulting in reduced labour and materials costs.
PVC / NYLON INSULATION
PVC JACKET
GROUND CONDUCTOR COPPER CONDUCTOR PVC / NYLON INSULATION
PVC JACKET
Specification:
| Size | Number of Conductors | Bonding Wire Size (Copper) | Insulation Thickness | Nylon Thicknes | Jacket Thickness | Approximate Overall Dimensions | Approximate Net Cable Weight | Ampacity 30°C Ambient |
| AWG | AWG | mm | mm | mm | mm | kg/km | A | |
| 14 | 2 | 14 | 0.76 | 0.1 | 0.76 | 4.9 x 9.9 | 99 | 15 |
| 12 | 2 | 14 | 0.76 | 0.1 | 0.76 | 5.3 x 10.7 | 127 | 20 |
| 10 | 2 | 12 | 0.76 | 0.1 | 0.76 | 5.9 x 12.2 | 181 | 30 |
| (diameter) | ||||||||
| 14 | 3 | 14 | 0.76 | 0.1 | 0.76 | 8.8 | 126 | 15 |
| 12 | 3 | 14 | 0.76 | 0.1 | 0.76 | 9.7 | 166 | 20 |
| 10 | 3 | 12 | 0.76 | 0.1 | 0.76 | 10.9 | 239 | 30 |
| 8 | 3 | 10 | 0.89 | 0.12 | 1.14 | 14.1 | 391 | 45 |
| 6 | 3 | 8 | 1.14 | 0.15 | 1.14 | 17.2 | 601 | 65 |
| 4 | 3 | 8 | 1.14 | 0.15 | 1.52 | 20.3 | 876 | 85 |
| 3 | 3 | 6 | 1.14 | 0.15 | 2.03 | 22.8 | 1136 | 105 |
| 2 | 3 | 6 | 1.14 | 0.15 | 2.03 | 24.4 | 1355 | 120 |
NMD90 Packing picture
We are China CSA 300V 14/2 14/3 12/2 Nmd90 Wire Building/Electrical Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
