Copper or Aluminum XLPE PVC PE Insulation PVC PE Sheath Concentric Cable 2*8AWG Feeder Cable

Copper or Aluminum XLPE PVC PE Insulation PVC PE Sheath Concentric Cable 2*8AWG Feeder Cable image

Get Latest Price Request a quote

Product Details

Model NO.

Concentric Cable

Current

AC Cable

Insulation Material

XLPE/PVC/PE

Sheath Material

PVC/PE

Material Shape

Round or Flat

Wire Core Material

Copper or Aluminum

Certification

ISO, CCC, CE, RoHS, VDE, SABS

Model

2*8AWG

Brand

Rneda

Conductor Type

Stranded

Conductor Material

Copper, Al, Alloy

Range of Application

Electric Service Entrance

Standard

ASTM, NFC, IEC

Name and Type

Airdac

Cores

1phase+1 Neutral

Transport Package

Standard Export Drums

Specification

2*6, 2*8, 2*10AWG, 3*6, 3*8, 3*10AWG

Trademark

RNEDA

Origin

China. Hebei. Tangshan

HS Code

8544492100

Production Capacity

1000000meter Per Month

Product Description

Copper or Aluminum XLPE PVC PE Insulation PVC PE Sheath Concentric Cable 2*8AWG

1. Application
The concentric cable is used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent “black” losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as it is specified in the National Electrical Code.
This type of conductor can be used in dry and wet places, directly buried or outdoors;Its maximum temperature of operation is 90 ºC and its voltage of service for all the applications is 600 V.

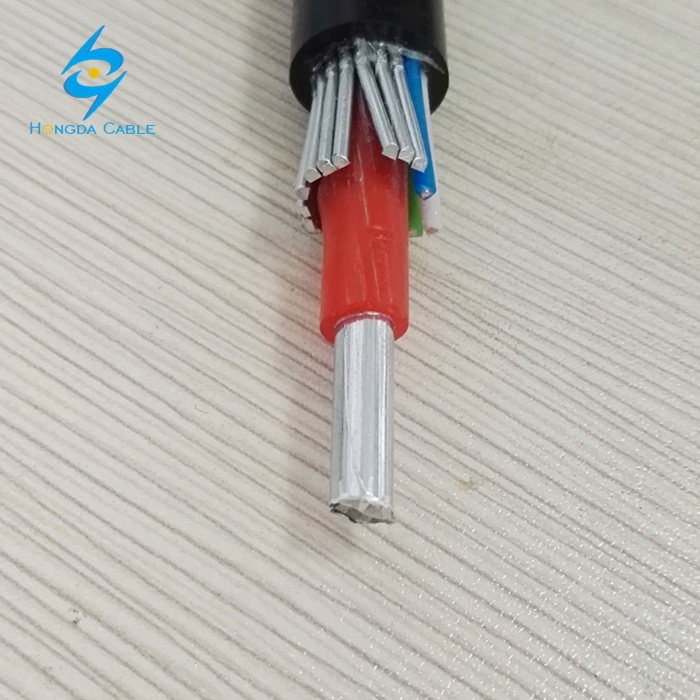

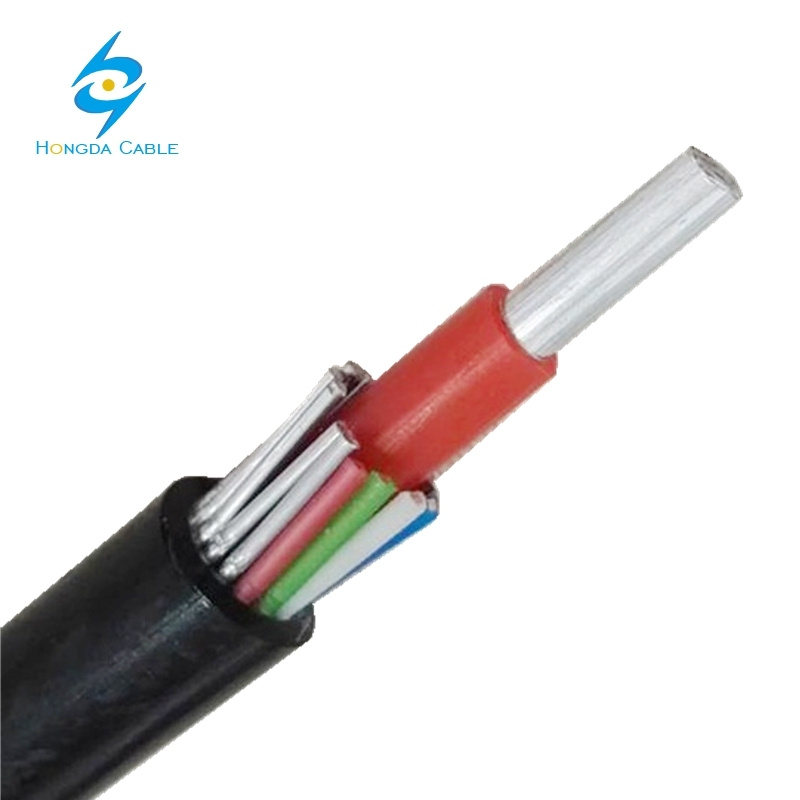

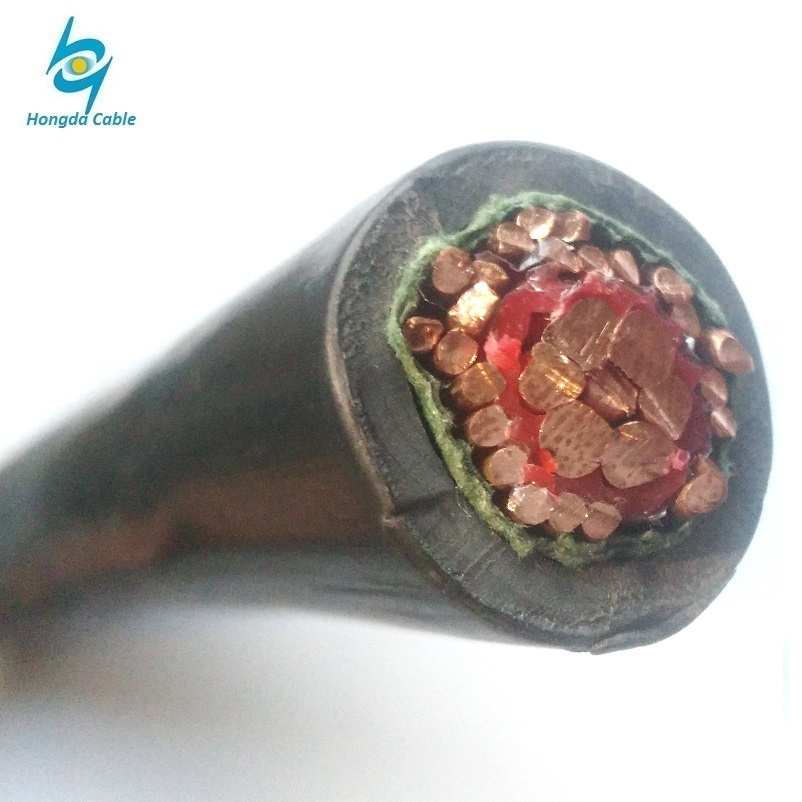

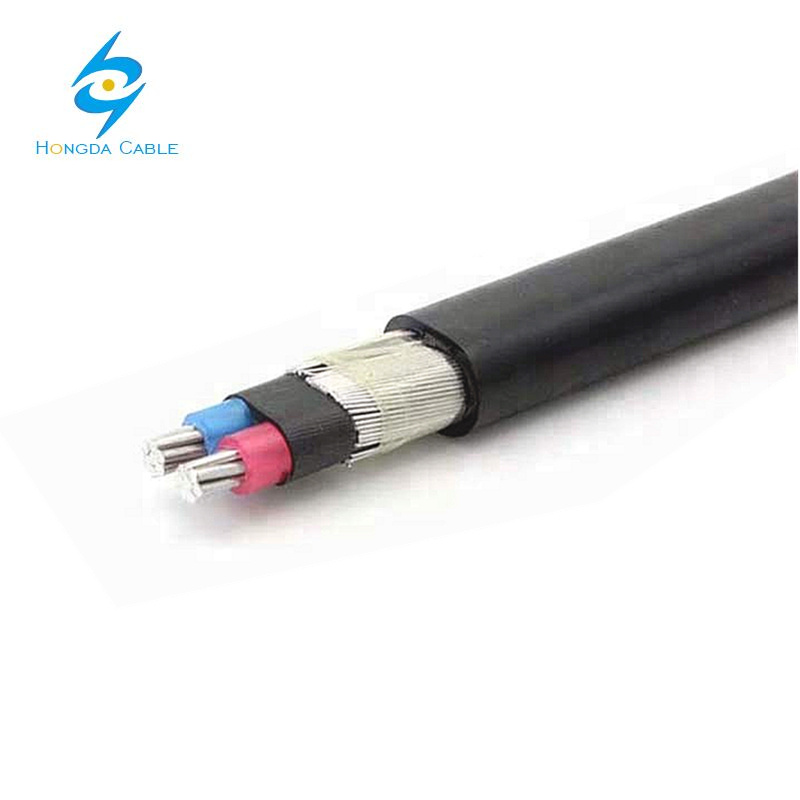

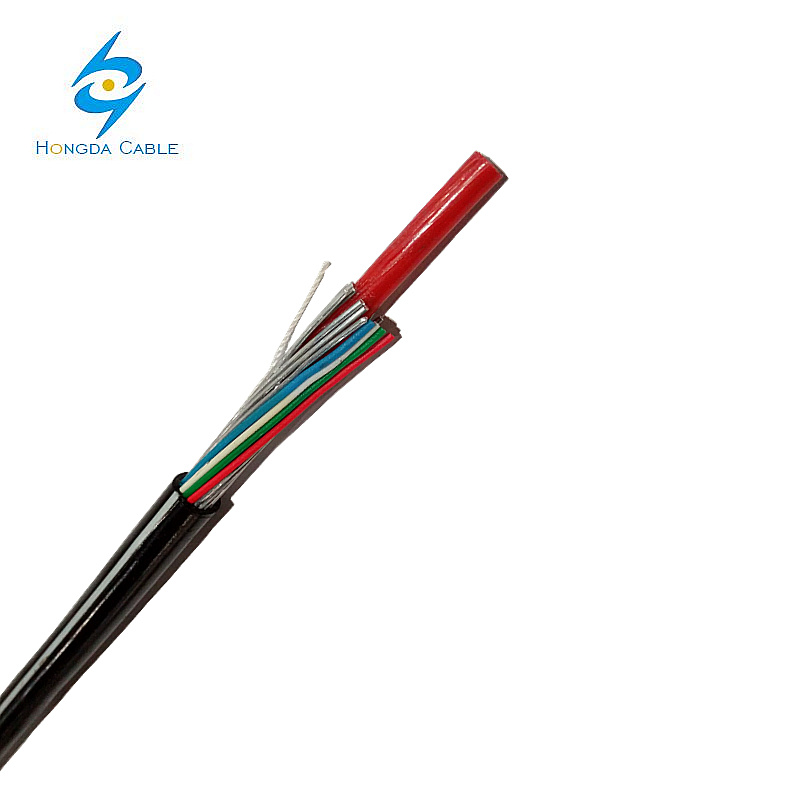

2. Construction of concentric cable
1.Solid or stranded aluminium conductor
2.Insulation with XLPE or PE or PVC
3.For two conductor cable, it is applied a helical mesh of copper wires over the central conductor,
4.For three or four conductors cable , parallel conductor or stranded conductor
5.PVC filler
6.Helical mesh of copper wires
7.Wrapping tape
8.Black color jacket of PE or PVC

3. Standard

XLPE/PE /PVC Insulated Concentric Cable is designed as IEC ,BS ,ASTM and othere standard or according to client’s requirement.

4. Specifications

ASTM 600/1000v
Core	AWG	Structure Size (mm)									Copper cable (kg/km)
		Conductor		Insulation	Concentric conductor		Outer sheath
		Single wire		XLPE	Single wire		UV-PVC
		No.	Dia.	Thick	No.	Dia.	Thick		Dia.
1	16	7	0.49	1.14	39	0.321	1.14		6.82		81.46
1	10	7	0.98	1.14	34	0.511	1.14		8.67		172.04
1	8	7	1.23	1.14	25	0.643	1.14		9.68		221.58
1	6	7	1.55	1.14	25	0.813	1.14		10.98		160.50
1	4	7	1.96	1.14	27	1.020	1.14		12.62		509.26
IEC 60502-1 IEC 60228 600/1000v
Size (mm2)	Structure Size mm									Copper cable (kg/km)
	Concuctor			Insulation	Concentric conductor		Outer sheath
	Single wire		Dia.	PVC	Single wire		UV-PVC
	No.	Dia.		Thick	No.	Dia.	Thick	Dia.		(kg/km)
10	7	1.35	4.05	1.55	20	0.85	1.4	11.79		301.55
16	7	1.7	5.1	1.55	32	0.85	1.4	12.84		431.7
25	7	2.14	6.42	1.6	29	1.13	1.5	15.02		647.46
Aluminum Cable
16	7	1.7	5.1	1.55	26	1.13	1.4	13.42		244.16
25	7	2.14	6.42	1.6	29	1.13	1.5	15.02		307.3
35	19	1.53	7.65	1.65	27	1.35	1.6	16.99		390.15

We are China Copper or Aluminum XLPE PVC PE Insulation PVC PE Sheath Concentric Cable 2*8AWG Feeder Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
