Product Details

Model NO.

H1Z2Z2-K

Sheath Material

Xlpo

Insulating Material

Xlpo

Conductor Type

Stranded

Brand

Ruitian or OEM

Certification

TUV, CE

Wire Core Material

Tinned Copper Wire

Number of Cores

Single Core/Twin Core

Nominal Voltage

U0/U=600/1000V AC, 1000/1500V DC

Color

Black, Red or Customized

Sample

Free

Transport Package

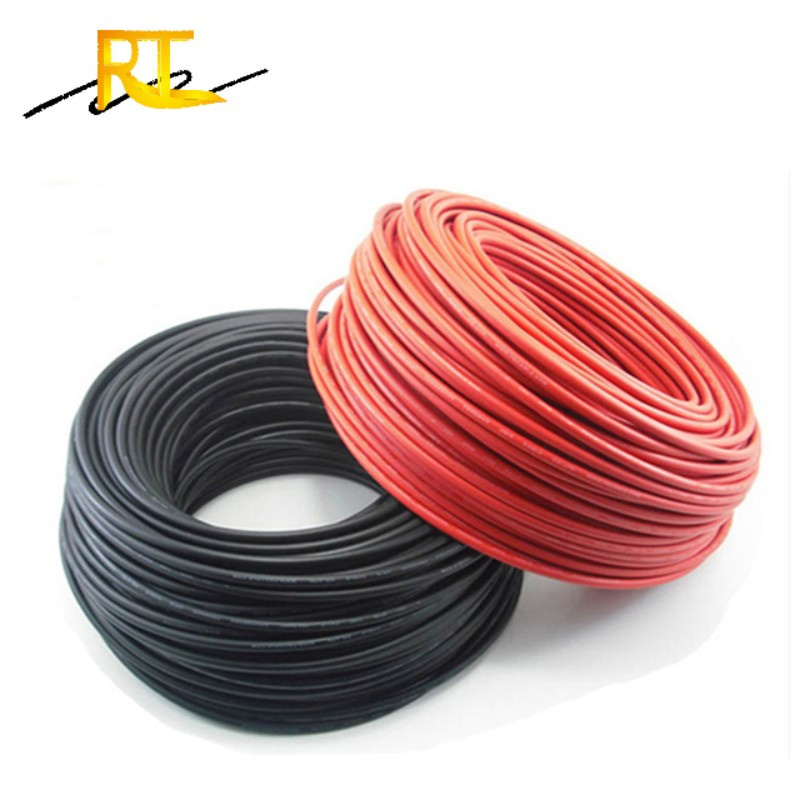

100m/200m/500m/1000m a Roll

Specification

1.5-35mmsq

Trademark

RUITIAN OR OEM

Origin

Hebei, China

HS Code

8544492100

Production Capacity

500000mts/Month

Product Description

China Price 2.5mm 4mm 6mm 10mm Solar Panel PV Cable Wire 1000V 1500V Xlpo Tinned Copper DC Power Inverter Solar Cable

Product Description:

Product Name:	Solar Cable
Production Specification:	2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm
Conductor Material:	Copper/Tinned Copper
Insulation Material:	XLPE(XLPO)
Color:	Red/Black/White
Temperature range:	-40ºC~90ºC
Rated Voltage:	AC0.6/1KV, DC1.0/1.5KV

Product Fatures:

PV solar cable and wire is rated 600V,1000V,2000V,is suitable for ac and dc systems.It is rated 90,105,125 or 150°C dry and 90°C wet.

Single conductor, insulated and non-integrally jacketed, sunlight resistant, photovoltaic wire rated for 90°C wet or dry, 600V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 630.31 (And other applicable parts of the National Electric Code (NEC), NFPA 70). Ratings only apply to certain gage sizes.

Electrical

1. The dc resistance: the finished cable at 20 ºC conductive wire core dc resistance is not greater than 5.09 Ω/km

2. The insulation resistance: the finished insulation resistance of cable at 20 ºC should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ºC is not less than 1011 Ω. Cm

3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.

Cable structure

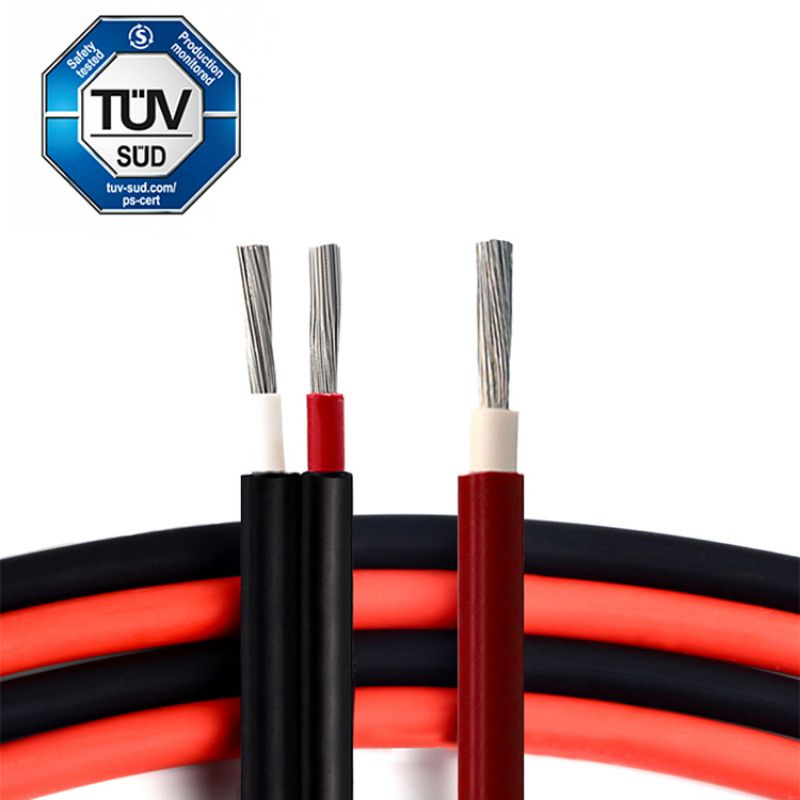

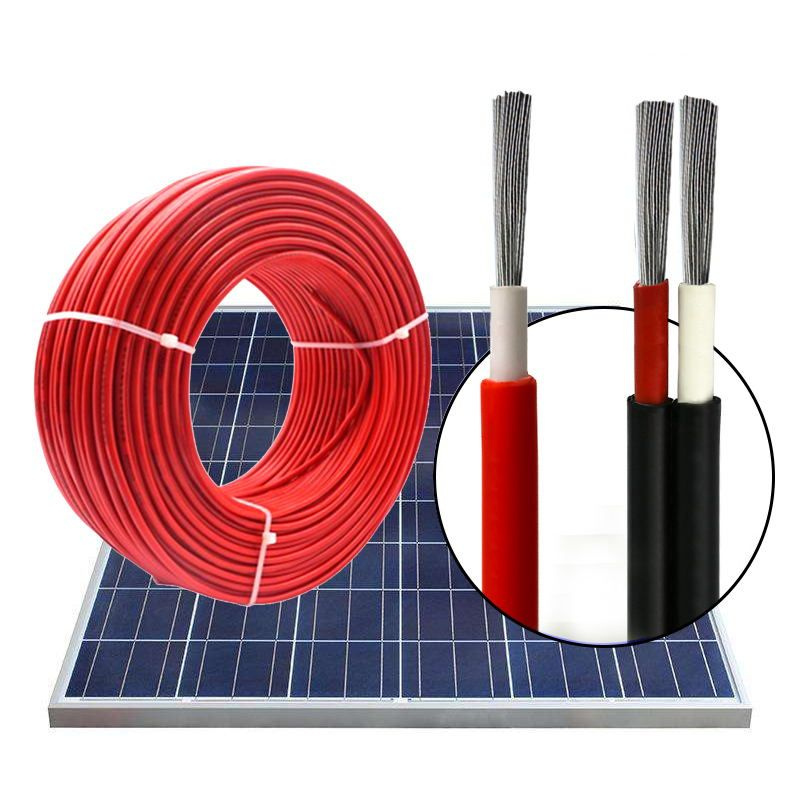

Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm² 2 PV1 – F

18, 16 and 14, 12, 10, 8, 6, 4, 2 mm² PV wire

Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.

Sheath: low smoke and halogen free material thickness > 0.5mm.

Product Advantage:

1.Electron-beam cross-linked compounds

2.Excellent resistance to U.V,oil,greases,oxygen and ozone

3.Excellent resistance to abrasion

4.Halogen free, flame retardant,low toxicity

5.Excellent flexibility and stripping performance

6.Very long service life > 25 years at 90°C

Type	Specification (mm²)	Conductor Construction	Outer Diameter (mm)	Max. Conductor Resistance at 20ºC (Ω/kM)	Current Carring Capacity

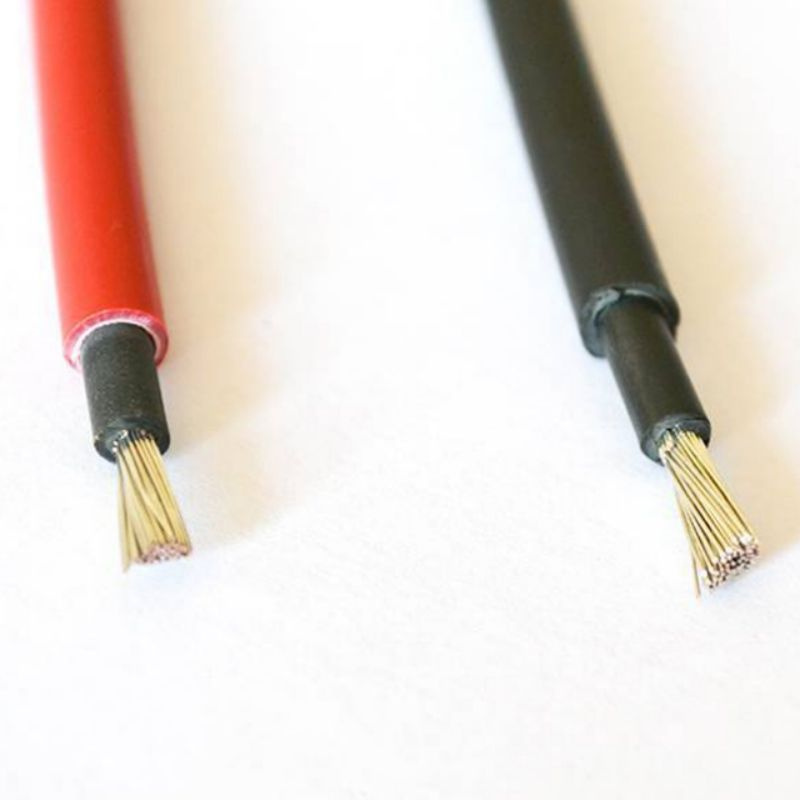

Single core solar pv cable	1×1.5	30/0.25	4.9	13.3	30
	1×2.5	50/0.25	5.4	7.98	41
	1×4	56/0.3	6.1	4.75	50
	1×6	84/0.3	7.2	3.39	70
	1×10	142/0.3	9	1.95	98
	1×16	228/0.3	10.2	1.24	132
	1×25	361/0.3	12	0.795	176
	1×35	525/0.3	13.8	0.566	218
	1×50	720/0.3	14.8	0.393	280
	1×70	988/0.3	16.9	0.277	350
	1×95	1349/0.3	18.7	0.21	410
	1×120	1691/0.3	20.7	0.164	480
Twin/ Dual core round solar pv cable	2×1.5	30/0.25	8.3	13.3	30
	2×2.5	50/0.25	9.2	7.98	41
	2×4	56/0.3	12	4.75	50
	2×6	84/0.3	13.5	3.39	70
	2×10	142/0.3	17.6	1.95	98
	2×16	228/0.3	19.8	1.24	132
Twin/ Dual core flat solar pv cable	2×2.5	50/0.25	5.4×10.9	7.98	41
	2×4	56/0.3	6.1×12.3	4.75	50
	2×6	84/0.3	7.2×12.9	3.39	70

Ruitian Cable established in 2008, is a professional manufacturer engaged in research, development, production, sale and service of power cable, solar cable, control cable, electric wire, rubber cable, aerial bundle cable, high temperature cable ect. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
We have many advanced equipment including testing, insulation, shielding, cabling and packing. In addition, With continuous efforts of production improvements and high quality management, we have obtained certificates TUV, C E, I S O 9 0 0 1, I S O 1 4 0 0 1 and Industrial Products Manufacture Certificate. Has exported to Europe, America, Southeast Asia, Middle east, Australia, Africa. Our products gain wide praises all around the world. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.

We warmly welcome customers from all around the world to cooperate with us for common success.

1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files,the samples will be ready for delivery in 37 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.

(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
