Building, House, Comercial, Industrial Copper or Standard Export Drums Aluminum Conductor Mc Cable

Building, House, Comercial, Industrial Copper or Standard Export Drums Aluminum Conductor Mc Cable image

Get Latest Price Request a quote

Product Details

Application

Building, House, Comercial,Industrial

Conductor Material

Copper or Aluminum

Sheath Material

PVC

Insulation Material

PVC

Material Shape

Round Wire

Range of Application

Commercial Buildings and Industrial Environment

Certification

ISO9001, CCC, RoHS

Brand

Rneda

Product Name

Mc Cable

Certificate

UL1569

Rated Voltage

Low Voltage 600V

Cross Section

14AWG-1000kcmil Metal-Clad Cable Mc Cable

Jacket

Aluminum Alloy AA8000

Insulation

PVC or XLPE UL83 or UL44

Related Cables

Nm-B Building Wire, Tc Cable, Soow Cables

Transport Package

Standard Export Drums

Specification

12/2 12/3 14/2 14/3 8/2 10/3

Trademark

RNEDA

Origin

China

HS Code

8544492100

Production Capacity

1000000meter Per Month

Product Description

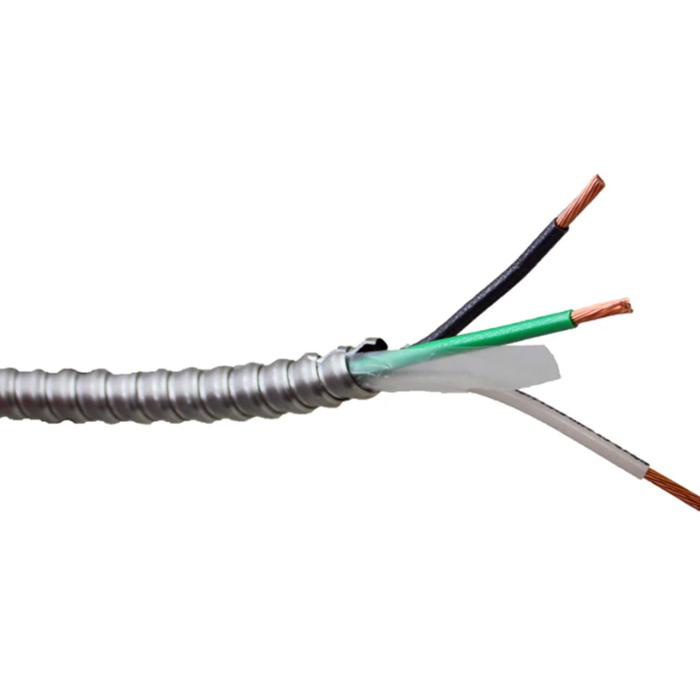

8/3 Metal Clad (MC) Cable with Ground Aluminum Armored Stranded Copper Conductors

The metal-clad cable may be used as a general-purpose control cable in the mining, petroleum, pulp, paper, and chemical industries. It is also commonly used in commercial buildings and other industrial environments. It is suitable for use in direct burial applications, or on walls or beams. It may also be used as exposed or concealed wiring (dry or wet),or in ventilated, non-ventilated,or ladder-type tray cable (dry or wet).

Description of purpose

Type MC Cable is suitable for use as follows:
• Branch, feeder and service power distribution in commercial, industrial, institutional, and
multi-residential buildings.
• Power, lighting, control, and signal circuits.
• Fished or embedded in plaster.
• Concealed or exposed installations.
• Environmental air-handling spaces per NEC 300.22 (C).
• Places of Assembly per NEC 518.4 and theaters per NEC 520.5.
• Installation in cable tray and approved raceways.
• Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) & 645.5(D)(2).
• Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.

Construction

Conductor: Copper
Insulation: XLPE or PVC+Nylon
Wrap: Polyester
Armor: Aluminum or Steel Interlocked Armor

Technical Specifications

Detailed products description:

1, UL standard: UL1569

2.MC cable(Metal clad)

3.specification: Copper conductor 14awg-4/0awg AL conductor: Sizes 6 AWG through 750MCM.

4.voltage rate:600v

MC cable, USA, UL & NEC standard, armored cable, metal-clad cable, AC cable, BX cable, TECK cable, interlocked armored cable

Armor	Interlocked Aluminum Strip
Inner Conductor	Solid/ Stranded Copper
Conductor Insulation	THHN/ THWN OR XHHW-2
Assembly Covering	Polypropylene Tape
Temperature Rating	≤ 90 (dry); ≤ 75 (wet)
Grounding	Insulated Green Grounding Conductor
Voltage Rating	600V

The largest UL cable manufacturer in China

Top 10 Cable manufactuer in China.

Largest Rubber cable manufacturer in China.
Leading ESP cable manufacturer.
Professional OEM manufacturer.
With UL,TUV,KEMA,CE,BV,PSB,SABS,MSHA,GL,NKK,KR,DNV,CCS certifications.
With TUV TYPE TESTING REPORT.

With ISO9001,ISO14001,ISO45001 syetem certifications.
ISO 17025 standard and CNAS approval laboratory.

Company profle

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 6billionYuan. Now there are more than +2100 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.

Our service:
1. 30 years production experience and 22 years export experience .

2.Products certification :UL, CUL,CSA,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc

3. OEM service available based on official & legal authorization.

4.Strict quality control system.

5.Rapid delivery and feedback Faster lead time than our competitors.

6.Excellent quality with reasonable price.

7. Strong technical support (technical data, drawing, etc.)

8.Professional teamwork service for you actively.

9.Stock available, Free sample is available.

We are China Building, House, Comercial, Industrial Copper or Standard Export Drums Aluminum Conductor Mc Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
