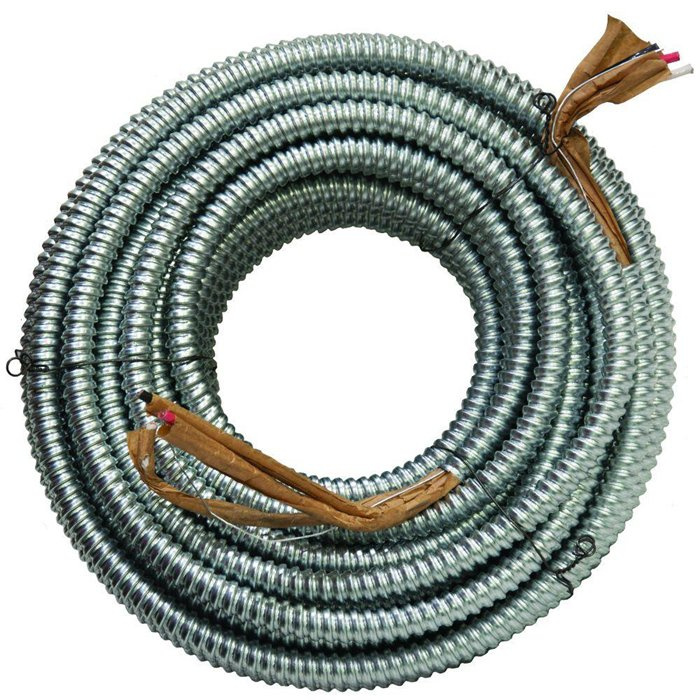

AC90 75m Spool 14/2 14/3 CSA 600V Electric Industrial Power Building Wires

 AC90 Cable Aluminium armor HT cables Hebei huatong cables for Canada market

Construction:

  Conductor:solid or stranded copper

  Insulation:Cross-Linked Polyethylene- xlpe(RW90)  or flame retartant PVC+Nylon

  Groud (Bonding core) conductor: bare solid or stranded copper

  Armor: interlocked aluminum armor or Galvanized Steel Interlocking Armour

• Temperature Rating: -40°C—90°C

• flame retartant and an oil resistant

• FT4 Test

Applications:

For concealed wiring in dry or wet locations For exposed wiring in dry or wet locations

For exposed and wiring in dry, locations where subjected to corrosive action if suitable for corrosive conditions encountered

For exposed wiring where subjected to the weather

For use in ventilated, Non-ventilated and ladder-type cable trays in dry or wet locations

For direct earth burial (with protection as required by inspection authority)

For service entrance above or below ground

Features:

Rated at 90°C wet or dry Excellent crush resistance Provides long service life Cost effective alternative to installations in conduit Meets cold bend and impact tests at (-40°C)

Compliances: Industry

compliances: UL Standard C22.2 No. 131, No.38 and No.2256, RoHS Flame test

compliances: UL FT4 Hazardous Location, SUN RES (outer jacket) SUN RES on inner jacket and insulated conductor available upon request, Direct Burial
