ABC Overhead 0.6/1kv Electric PVC Conductor PVC XLPE Insulated Electrical Wire Cable

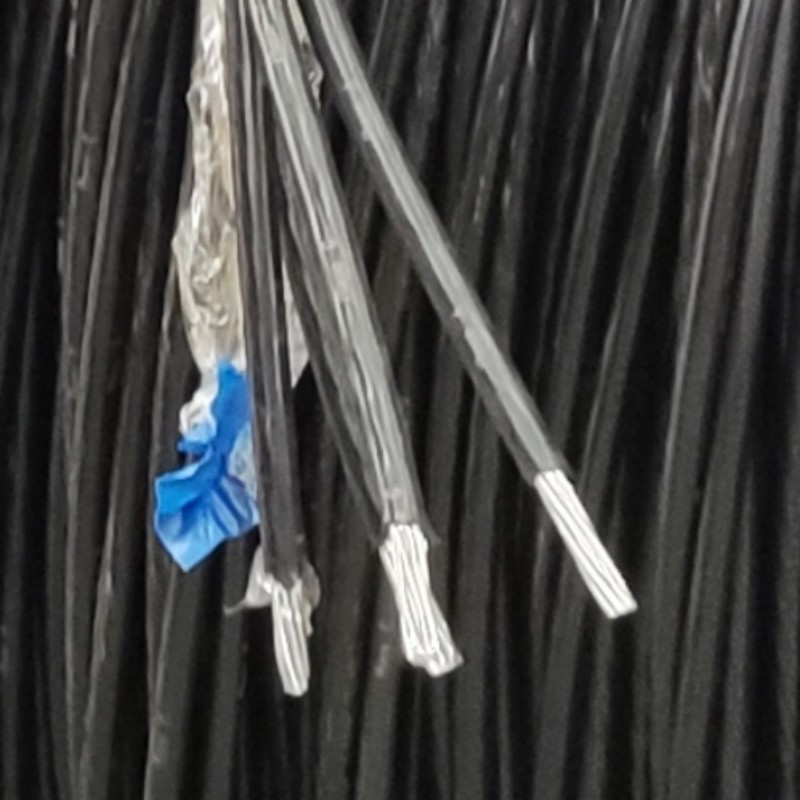

ABC Overhead 0.6/1kv Electric PVC Conductor PVC XLPE Insulated Electrical Wire Cable image

Get Latest Price Request a quote

Product Details

Model NO.

ABC

Current

DC Cable

Insulation Material

PVC, PE, XLPE

Sheath Material

Material Shape

Round Wire

Wire Core Material

Aluminium, Aluminum Alloy, Bare Copper

Certification

ISO, CCC, CE, RoHS

Model

Jkv, Jklv

Brand

Qif

Insulation Color

Customized

Min Quantity

1000m

Conductor Grade

1350-H19, 6208-T81

Service

OEM ODM

Packing Size

100m/Roll, 305m/Roll, Wrap Plastic Film Packaging

Transport Package

Coil/Spool/Carton/Pallet/

Specification

multi-core

Trademark

QIF

Origin

China

HS Code

85444929

Production Capacity

500000m/Month

Product Description

Construction

Phase Conductor: Class 2 ircular compacted stranded aluminum conductor

Neutral Conductor: Class 2 circular compacted stranded aluminum conductor

Insulation: XLPE (Cross-linked polyethylene) UV Resistant

Core Identification: Phases by longitudinal ribs (I, II, III) Neutral core by longitudinal ribs (≤ 50 mm² min.12 ribs; ≥ 50mm² min.16 ribs)

Application

The power cables with cross-linked polyethylene (XLPE) insulation for overhead lines are designed for electrical installations with alternating power networks with nominal voltage Uo/U 0.6/1 kV or in direct power networks with maximum voltage according to land 0.9 кV.

The cables with supporting (bearing) zero conductors are used for building networks in city and urban areas and the self-supporting type cables are for building distribution networks in these areas.

Cables for overhead installations may be used in different types of installations: on free hanging facades; between posts; on fixed facades; trees and poles. Interception of forest areas without the need of clearance and maintenance of openings is allowed.

Cables with supporting zero conductor, the whole bundle is suspended and carried by the supporting conductor, which is made of aluminum compound.

Self-supporting construction, suspension and carrying of the whole bundle is done by the phase insulated conductors.

Bundles can include one or two additional conductors for public lighting and control pair.

Standard

NF C33-209: Insulated or shielded cables for power systems. Bundle assembled cores for overhead systems of rated voltage 0.6/1 kV

Characteristics

Operating temperature: 80°C

Short-circuit temperature: 130°C

Nominal voltage АС: Uo/U 0.6/1kV

Highest system voltage AC, not more than: 1.2kV

Installation

The NF C 11-201 standard´s requirements determine the installation procedures for low voltage overhead lines. These cables are NOT ALLOWED to be buried, even in conduits.

Number of Cores x Nominal Cross Section No.x mm²	Overall Diameter mm	Weight kg/km	Maximum Conductor Resistance Ω/Km	Minimum Breaking Load KN	Current Rating A
2×10 RM	12.8	93	3.08	1.5	38
4×10 RM	15.4	183	3.08	1.5	38
2×16 RM	14.8	129	1.91	2.3	72
2×16 RN + 2×1.5 RE	14.8	176	1.910 / 12.100	2.3	72
4×16 RM	17.8	257	1.91	2.3	72
4×16 RN + 2×1.5 RE	17.8	304	1.910 / 12.100	2.3	72
2×25 RM	18	202	1.2	3.8	107
2×25 RM + 2×1.5 RE	18	249	1.200 / 12.100	3.8	107
4×25 RM	21.7	404	1.2	3.8	107
4×25 RM + 2×1.5 RE	21.7	451	1.200 / 12.100	3.8	107
2×35 RM	20.8	269	0.868	5.2	132
2×35 RM + 2×1.5 RE	20.8	316	0.868 / 12.100	5.2	132
4×35 RM	25.1	539	0.868	5.2	132
4×35 RM + 2×1.5 RE	25.1	586	0.868 / 12.100	5.2	132
2×50 RM	23.4	352	0.641	7.6	165
2×50 RM + 2×1.5 RE	23.4	399	0.641 / 12.100	7.6	165
1×54.6 RM + 3×25 RM	21.7	507	0.630 / 1.200	3.8	107
1×54.6 RM + 3×25 RM + 1×16 RM	24.3	573	0.630 / 1.200 / 1.910	3.8/2.3	107/72
1×54.6 RM + 3×25 RM + 2×16 RM	29.7	639	0.630 / 1.200 / 1.910	3.8/2.3	107/72
1×54.6 RM + 3×25 RM + 3×16 RM	31.1	705	0.630 / 1.200 / 1.910	3.8/2.3	107/72
1×54.6 RM + 3×35 RM	25.1	615	0.630 / 0.868	5.2	132
1×54.6 RM + 3×35 RM + 1×16 RM	28.1	680	0.630 / 0.868 / 1.910	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 2×16 RM	34.3	748	0.630 / 0.868 / 1.910	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 3×16 RM	35.9	814	0.630 / 0.868 / 1.910	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 1×25 RM	28.1	714	0.630 / 0.868 / 1.200	5.2/3.8	132/107
1×54.6 RM + 3×50 RM	28.2	741	0.630 / 0.641	7.6	165
1×54.6 RM + 3×50 RM + 1×16 RM	31.6	806	0.630 / 0.641 / 1.910	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 2×16 RM	38.6	875	0.630 / 0.641 / 1.910	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 3×16 RM	40.4	940	0.630 / 0.641 / 1.910	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 1×25 RM	31.6	841	0.630 / 0.641 / 1.200	7.6/3.8	165/107
1×54.6 RM + 3×70 RM	33	950	0.630 / 0.443	10.2	205
1×54.6 RM + 3×70 RM + 1×16 RM	37	1014	0.630 / 0.443 / 1.910	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 2×16 RM	45.2	1083	0.630 / 0.443 / 1.910	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 3×16 RM	47.3	1148	0.630 / 0.443 / 1.910	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 1×25 RM	37	1048	0.630 / 0.443 / 1.200	10.2/3.8	205/107
1×54.6 RM + 3×70 RM + 2×25 RM	45.2	1150	0.630 / 0.443 / 1.200	10.2/3.8	205/107
1×54.6 RM + 3×70 RM + 3×25 RM	47.3	1250	0.630 / 0.443 / 1.200	10.2/3.8	205/107
1×54.6 RM + 3×95 RM	37.4	1176	0.630 / 0.320	13.5	240
1×54.6 RM + 3×95 RM + 1×16 RM	41.9	1243	0.630 / 0.320 / 1.910	13.5/2.3	240/72
