AAAC Aluminum Alloy Cable 150mm 240mm Bare Aluminum Conductor

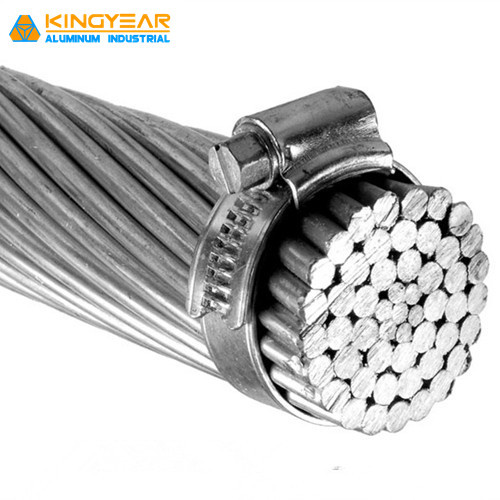

AAAC Aluminum Alloy Cable 150mm 240mm Bare Aluminum Conductor image

Get Latest Price Request a quote

Product Details

Model NO.

Bare Cable

Conductor Material

Aluminum

Sheath Material

Bare

Insulation Material

Bare

Material Shape

Round Wire

Certification

ISO9001, CE, CCC, VDE

Brand

Kingyear

Production Experience

More Than 30years

OEM

Yes

Transport Package

Export Drum

Specification

AAAC Conductor

Trademark

Kingyear

Origin

Henan

HS Code

761490000

Production Capacity

3000km/Week

Product Description

AAAC Aluminum Alloy Cable 150mm 240mm Bare Aluminum Conductor

Applications

Used as bare overhead conductor for primary and secondary distribution.

Designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio; affords better sag characteristics.

Aluminum alloy gives AAAC higher resistance to corrosion than ACSR.

standard

BS EN50183,IEC 61089, ASTM B399,BS 3242, DIN 48204,GB/T1179-2008

specification

ASTM B399

Code Name	Area		Size & Stranding of ACSR with Equal Diameter		No. & Diameter of wires	Overall Diameter	Weight	Nominal Breaking Load
	Nominal	Actual	Size & Stranding of ACSR with Equal Diameter		No. & Diameter of wires	Overall Diameter	Weight	Nominal Breaking Load
	MCM	mm2	AWG or MCM	Al/Steel	mm	mm	kg/km	kN
Akron	30.58	15.48	6	6/1	7/1.68	5.04	42.7	4.92
Alton	48.69	24.71	4	6/1	7/2.12	6.35	68	7.84
Ames	77.47	39.22	2	6/1	7/2.67	8.02	108	12.45
Azusa	123.3	62.38	1/0	6/1	7/3.37	10.11	172	18.97
Anaheim	155.4	78.65	2/0	6/1	7/3.78	11.35	217	23.93
Amherst	195.7	99.22	3/0	6/1	7/4.25	12.75	273	30.18
Alliance	246.9	125.1	4/0	6/1	7/4.77	14.31	345	38.05
Butte	312.8	158.6	266.8	7/26	19/3.26	16.3	437	48.76
Canton	394.5	199.9	336.4	7/26	19/3.66	18.3	551	58.91
Cairo	465.4	235.8	397.5	7/26	19/3.98	19.88	650	69.48
Darien	559.5	283.5	477	7/26	19/4.36	21.79	781	83.52
Elgin	652.4	330.6	556.5	7/26	19/4.71	23.54	911	97.42
Flint	740.8	375.3	636	7/26	37/3.59	25.16	1035	108.21
Greely	927.2	469.8	795	7/26	37/4.02	28.14	1295	135.47

IEC 61089

Code Number	A2 Conductor					A3 Conductor					Max.D.C. Resistance of Conductor at 20ºC
Code Number	Number of Wires	Diameter of Wires	Diameter of Conductor	Approx. Weight	Rated Strength	Number of Wires	Diameter of Wires	Diameter of Conductor	Approx. Weight	Rated Strength	Max.D.C. Resistance of Conductor at 20ºC
mm²	–	mm	mm	kg/km	daN	–	mm	mm	kg/km	daN	Ω/km
16	7	1.83	5.49	50.4	5.43	7	1.84	5.52	50.8	6.04	1.7896
25	7	2.29	6.87	78.7	8.49	7	2.3	6.9	79.5	9.44	1.1453
40	7	2.89	8.67	125.9	13.58	7	2.91	8.73	127.1	15.1	0.7158
63	7	3.63	10.8	198.3	21.39	7	3.65	10.95	200.2	23.06	0.4545
100	19	2.78	13.9	316.3	33.95	19	2.79	13.95	319.3	37.76	0.2877
125	19	3.1	15.5	395.4	42.44	19	3.12	15.6	399.2	47.2	0.2302
160	19	3.51	17.55	506.1	54.32	19	3.53	17.65	511	58.56	0.1798
200	19	3.93	19.65	623.7	67.91	19	3.95	19.75	638.7	73.2	0.1439
250	19	4.39	21.95	790.8	84.68	19	4.41	22.05	798.4	91.5	0.1151
315	37	3.53	24.71	998.9	106.95	37	3.55	24.85	1008.4	115.29	0.0916
400	37	3.98	27.86	1268.4	135.81	37	4	28	1280.5	146.4o	0.0721
450	37	4.22	29.54	1426.9	152.79	37	4.24	29.68	1440.5	164.7	0.0641
500	37	4.45	31.15	1585.5	169.76	37	4.47	31.29	1600.6	183.oo	0.0577
560	61	3.67	33.03	1778.4	190.14	61	3.69	33.21	1795.3	204.95	0.0516
630	61	3.89	35.01	2000.7	213.9	61	3.91	35.19	2019.8	230.58	0.0458
710	61	4.13	37.17	2254.8	241.07	61	4.15	37.35	2276.2	259.86	0.0407
800	61	4.38	39.42	2540.6	271.62	61	4.4	39.6	2564.8	282.8	0.0361
900	91	3.81	41.91	2861.1	305.58	91	3.83	42.13	2888.3	329.4	0.0321
1000	91	4.01	44.11	3179	339.53	91	4.03	44.33	3209.3	366	0.0289
1120	91	4.25	46.75	3560.5	380.27	91	4.27	46.97	3594.4	409.92	0 0258
1250	91	4.49	49.39	3973.7	424.41			–	–	–	–

BS EN50183

Code Name	Calculated	No..Dia.of Wires	Overall Diameter	Weight	Rated Strength
Code Name	Cross Section	No..Dia.of Wires	Overall Diameter	Weight	Rated Strength
	mm²	No./mm	mm	kg/km	kN
Box	18.8	7/1.85	5.55	51.4	5.55
Acacia	23.8	7/2.08	6.24	64.9	7.02
Almond	30.1	7/2.34	7.02	82.2	8.88
Cedar	35.5	7/2.54	7.62	96.8	10.46
Deodar	42.2	7/2.77	8.31	115.2	12.44
Fir	47.8	7/2.95	8.85	130.6	14.11
Hazel	59.9	7/3.30	9.9	163.4	17.66
Pine	71.6	7/3.61	10.8	195.6	21.14
Holly	84.1	7/3.91	11.7	229.5	24.79
Willow	89.7	7/4.04	12.1	245,0	26.47
Oak	118.9	7/4.65	14	324.5	35.07
Mulberry	150.9	19/3.18	15.9	414.3	44.52
Ash	180.7	19/3.48	17.4	496.1	53.31
Elm	211	19/3.76	18.8	579.2	62.24
Poplar	239.4	37/2.87	20.1	659.4	70.61
Sycamore	303.2	37/3.23	22.6	835.2	89.4
Upas	362.1	37/3.53	24.7	997.5	106.82
Yew	479	37/4.06	28.4	1319.6	141.31
Totara	498.1	37/4.14	29	1372.1	146.93
Rubus	586.9	61/3.50	31.5	1622	173.13
Sorbus	659.4	61/3.71	33.4	1822.5	194.53
Araucaria	821.1	61/4.14	37.3	2269.4	242.24
Redwood	996.2	61/4.56	41	2753.2	293.88

DIN 48201

Code number	Calculated area	Number of wires	Diameter of wire	Overall diameter of conductor	Linear mass	Rated tensile strength	Max. DC resistance at 20ºC
mm2	mm2		mm	mm	kg/km	daN	Ω/km
16	15.89	7	1.7	5.1	43	444	2.091
25	24.25	7	2.1	6.3	66	677	1.3703
35	34.36	7	2.5	7.5	94	960	0.9669
50	49.48	7	3	9	135	1382	0.6714
50	48.35	19	1.8	9	133	1350	0.6905
70	65.81	19	2.1	10.5	181	1838	0.5073
95	93.27	19	2.5	12.5	256	2605	0.3579
120	116.99	19	2.8	14	322	3268	0.2854
150	147.11	37	2.25	15.8	406	4109	0.2274
185	181.62	37	2.5	17.5	500	5073	0.1842
240	242.54	61	2.25	20.3	670	6774	0.1383
300	299.43	61	2.5	22.5	827	8363	0.112
400	400.14	61	2.89	26	1104	11176	0.0838
500	499.63	61	3.23	29.1	1379	13960	0.06709
625	626.2	91	2.96	32.6	1732	17490	0.054
800	802.09	91	3.35	36.9	2218	22402	0.0418
1000	999.71	91	3.74	41.1	2767	27922	0.0335
