CU/XLPE/CTS/AWA/PVC YJV72 Medium Voltage Armoured MV Electric Power Cable
Medium Voltage cable for power distribution and power supply stations used in Utility and Industrial applications, for rated voltages from 3.6/6kV to 18/30kV. Suitable for fixed installations, indoor or outdoor, in open air on cable trays, or underground in ducts or directly buried.
Voltage Rating Uo/U (U)
3.6/6 (7.2)kV,
6/10 (12)kV,
8.7/15 (17.5)kV,
12/20 (24)kV,
18/30 (36)kV
Temperature Range Fixed: -20°C to +90°C
Minimum Bending Radius 15 x overall diameter
Construction:
Conductor : Class 2 stranded Copper
Conductor Screen : Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation : XLPE (Cross-Linked Polyethylene)
Insulation Screen : Semi-conductive XLPE (Cross-Linked Polyethylene)
Metallic Screen : Copper wire screen
Inner Sheath : PVC (Polyvinyl Chloride)
Armour : AWA – Aluminium wires, helically applied, tightened with plastic tapes
Sheath : PVC (Polyvinyl Chloride) type ST2
|
DIMENSIONS
|
||||
|
NO. OF
|
CONDUCTOR NOMINAL
|
NOMINAL DIAMETER
|
NOMINAL
|
NOMINAL
|
|
CORES
|
CROSS SECTIONAL AREA
|
OVER INSULATION
|
OVERALL DIAMETER
|
WEIGHT
|
|
/
|
mm2
|
mm
|
mm
|
kg/km
|
|
1
|
25
|
13
|
25.5
|
960
|
|
1
|
35
|
14
|
26.5
|
1080
|
|
1
|
50
|
15
|
27.5
|
1230
|
|
1
|
70
|
16.5
|
29.5
|
1470
|
|
1
|
95
|
18.5
|
31
|
1760
|
|
1
|
120
|
20
|
32.5
|
2035
|
|
1
|
150
|
21
|
34
|
2325
|
|
1
|
185
|
22.5
|
35.5
|
2700
|
|
1
|
240
|
25.5
|
38.5
|
3340
|
|
1
|
300
|
28.5
|
42
|
4060
|
|
1
|
400
|
32
|
45.5
|
5045
|
|
1
|
500
|
35.5
|
49
|
6070
|
|
1
|
630
|
41
|
53
|
7775
|
1.You are manufacturer or trader ?
We are a professional cable&wire manufacturer with more than 20 years experience.Our factory located in jiaozuo city,henan province,china.
2.How can I get the quotation of the products ?
Pls send inquiry to us,we will reply you within 12 hours.
3.What does your company do regarding quality control?
1) all raw materials we selected are the highest quality.
2) professional and skillful workers care every details in handling the producing.
3) quality control department is specially responsible for quality checking in each process.
4.Do you provide OEM project service?
Yes,OEM & ODM order is warmly welcomed.
Our technical engineers can give you the professional suggestions.
5.Can I get the sample?
Yes,pls send inquiry to us,then our sales manager will arrange the samples for you.
We are China 8.7/15kv Yjv72 1*500mm2 1X500mm2 Cu/XLPE/Cts/PVC/Awa/PVC Copper Conductor Aluminium Wire Armoured Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: Copper Power Cable, Henan Huadong Cable Co., Ltd., Power CableSimilar Or Related
-
12/3 10/3 8/3 6/3 14/2 10/2 12/2 8/2 6/2 Copper Conductor Thhn/Thwn-2 Insulated Aluminum Interlocked Armor Mc Metal Clad Cable
-

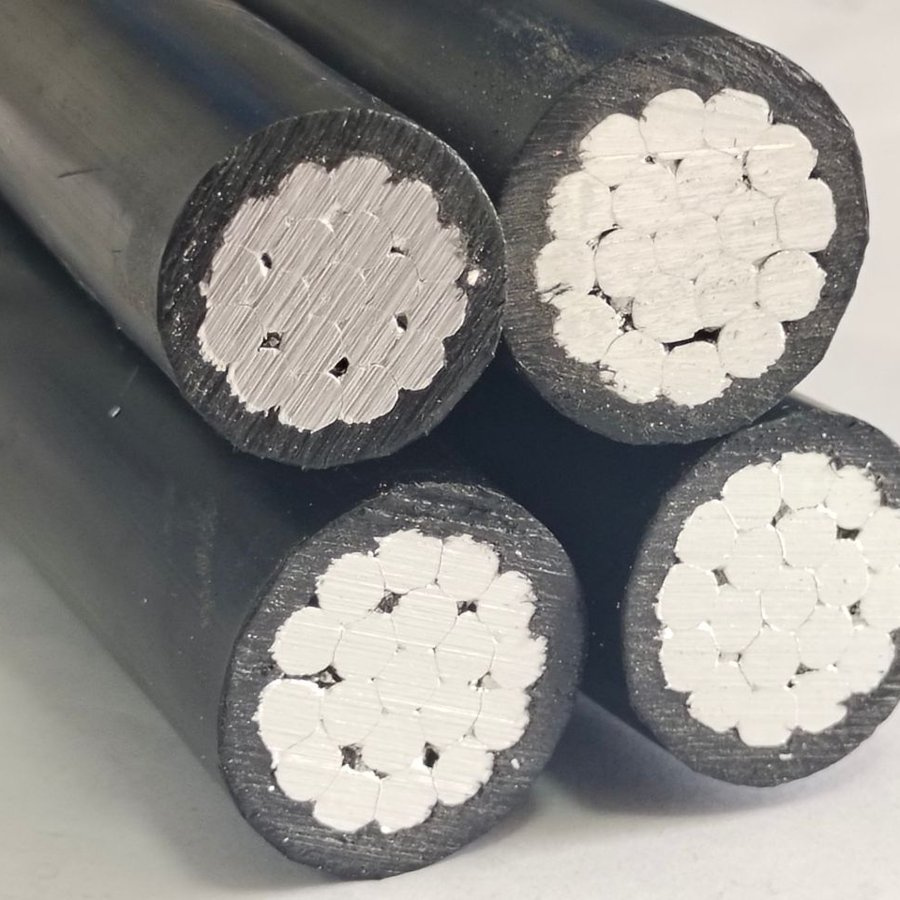

3*150+95 3X150+1X95 RM 0.6/1kv Overhead Aerial Bundled Twisted ABC Cable
-
Ntscgewow 6kv 3.6/6kv 1 3 Core 3X240mm 3X300mm Medium Voltage Epr Insulation Cm/Cr Sheath Rubber Torsion Power Cable
-

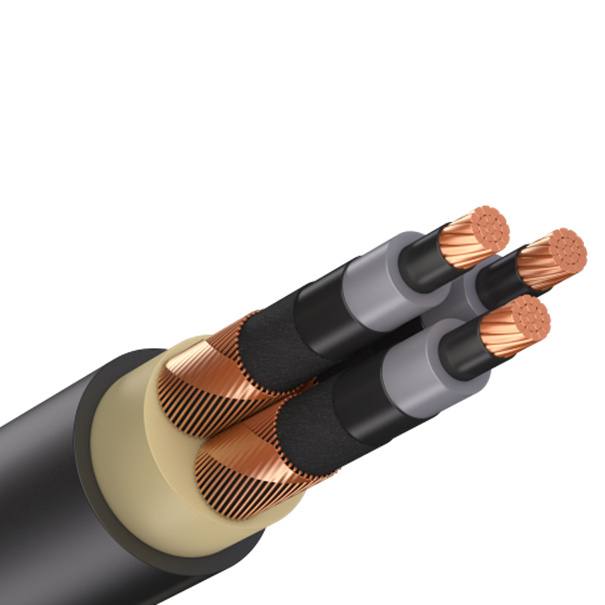

N2xseh Na2xseh 6/10 (12) Kv 3X150/25mm2 Low Smoke Halogen Free Flame Retardant XLPE Insulation Shielded Power Cable
-
