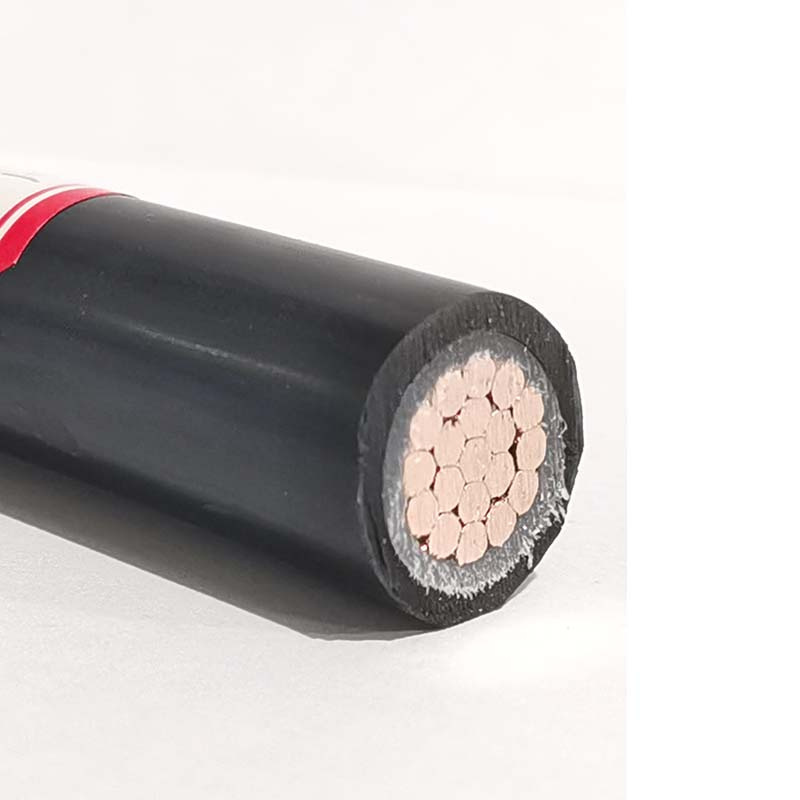

70mm2 Single Core Electrical XLPE Yjv Ttu Power Copper Cable

70mm2 Single Core Electrical XLPE Yjv Ttu Power Copper Cable image

Get Latest Price Request a quote

Product Details

Model NO.

TTU

Current

DC & AC

Insulation Material

XLPE

Sheath Material

PVC

Material Shape

Round Wire

Wire Core Material

Copper Conductor

Certification

ISO, CCC, CE, VDE

Model

YJV

Brand

Huadong

Product Name

Single Core Power Cable

Rated Voltage

0.6/1kv

Armour

Non Armoured

Standards

Ieca, BS, DIN, GB Ect

MOQ

100m

Sample

Available

Color

Black or Others

Transport Package

by Wooden Drum

Specification

by meters

Trademark

huadong

Origin

China

HS Code

8544492100

Production Capacity

15 Million Km

Product Description

Low Voltage 0.6/1kv 1 Single Core Copper XLPE Electric Electrical Power Cable Wire

Application
Single core power cables are indicated for the transport and distribution of low voltage electricity. Recommended for industrial connections, service connections, internal distribution and outdoor connections. It can be used in underground networks and permanent installations.

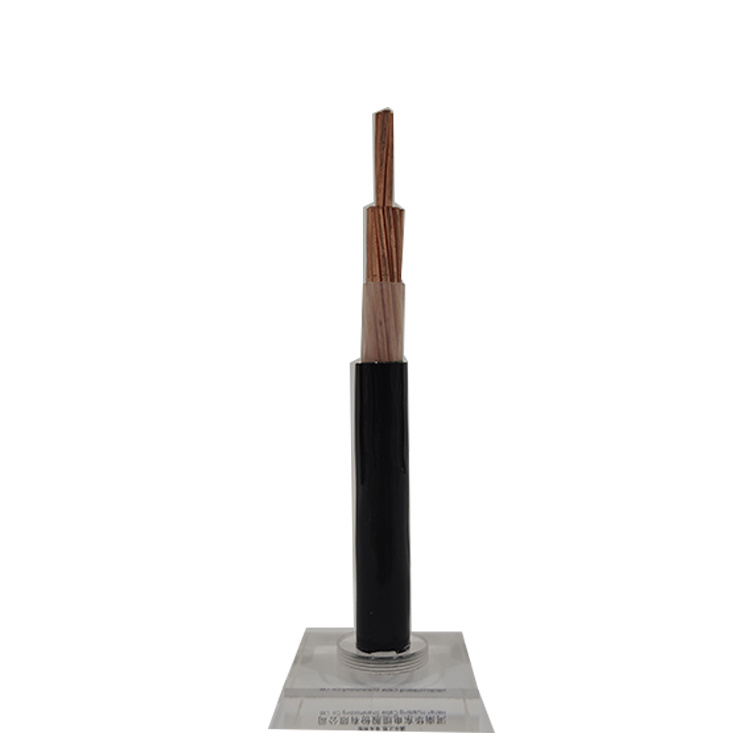

Construction
1. Conductor: Stranded Copper, Class 2
2. Insulation: Cross-Linked Polyethylene (XLPE)
3. Sheath:PVC
4.Armour:Unarmored Copper Cable

SIZE AWG / MCM	CROSS SECTION AL mm2	STRANDING Number of wire x diameter mm.	JACKET THICKNESS mm.INSULATION THICKNESS mm.	JACKET THICKNESS mm.	EXTERNAL DIAMETER mm.	TOTAL WEIGHT Kg/Km	AMPACITY Amp.
14	2.06	1×1.62	0.81	0.38	4.14	31.3	20
12	3.30	1×2.05	0.81	0.38	4.54	44.7	25
10	5.26	1×2.59	0.81	0.38	5.10	62.6	35
8	8.37	7×1.23	1.14	0.38	6.73	109.0	50
6	13.30	7×1.55	1.14	0.76	8.45	170.0	65
4	21.15	7×1.96	1.14	0.76	9.68	301.0	85
2	33.62	7×2.47	1.14	0.76	11.21	376.0	115
1	42.36	7×2.78	1.40	1.14	13.42	461.5	130
1/0	53.49	19×1.89	1.40	1.14	14.53	609.0	150
2/0	67.43	19×2.12	1.40	1.14	15.68	747.0	175
3/0	85.01	19×2.39	1.40	1.14	17.03	915.0	200
4/0	107.20	19×2.68	1.40	1.14	18.48	1132.0	230
250	127.00	37×2.09	1.65	1.65	21.23	1390.0	255
300	152.00	37×2.29	1.65	1.65	22.63	1641.0	285
350	177.00	37×2.47	1.65	1.65	23.89	1889.0	310
400	203.00	37×2.64	1.65	1.65	25.08	2137.0	335
500	253.00	37×2.95	1.65	1.65	27.25	2627.0	380
600	304.00	37×3.23	2.03	1.65	29.97	3144.0	420
650	329.00	37×3.37	2.03	1.65	30.95	3409.0	440
700	355.00	37×3.49	2.03	1.65	31.79	3593.0	460
750	380.99	61×2.28	2.03	1.65	32.18	3854.0	475
1000	506.04	61×3.25	2.03	1.65	35.94	5045.2	545

Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters, With Advanced 20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers.We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane Cables and Other Special Use Cables.

1.Are yuo a manufacturer?

Yes,we are a professional cable&wire manufacturer with more than 20 years experience.Our factory located in jiaozuo city,henan province,china.

2.How can I get the quotation of the products ?

Pls send inquiry to us,we will reply you within 12 hours.

3.What does your company do regarding quality control?

1) All raw materials we selected are the highest quality.

2) Professional and skillful workers care every details in handling the producing.

3) Quality control department is specially responsible for quality checking in each process.

4.Do you provide OEM project service?

Yes,OEM & ODM order is warmly welcomed.

Our technical engineers can give you the professional suggestions.

5.Can I get the sample?

Yes,pls send inquiry to us,then our sales manager will arrange the samples for you.

We are China 70mm2 Single Core Electrical XLPE Yjv Ttu Power Copper Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
