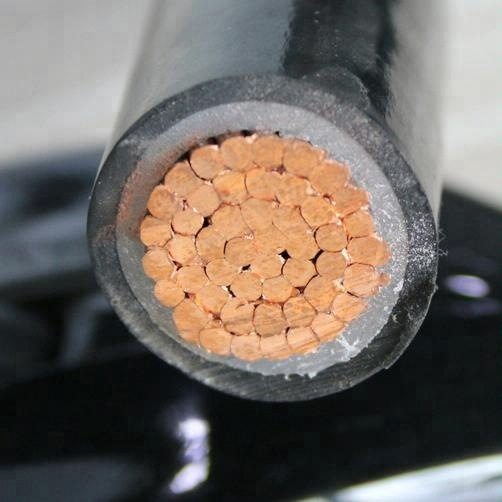

600V Single Core Strand Copper PE Insulated 500mcm Ttu Cable

600V single core strand Copper PE insulated 500MCM TTU cable

Conductor:Compressed or Compacted copper conductor class B
Insulation:Polyethylene (PE) 75°C
Jacket: Extruded black sunlight resistant, selfextinguishing, oils resistant PVC jacket with excellent mechanical properties
Packaging: Non-returnable wooden drums Options
• CT USE applications
• Lineal low density Polyethylene jacket
• (LLDPE) jacket

Application
Primary power and distribution circuits in industrial, commercial and power circuit generating plants.
Single conductors cables, 1/0 AWG and larger, can be marked for CT Use to be installed in ladder cable tray, according NEC Article 318.

Standards / Testing
Specifications
• TTU 75 meets or exceeds the requirements  of ICEA S-95-658 and COVENIN 541.

Installation
TTU 75 cables may be installed in wet or dry locations at maximum operating temperature of 75°C for normal operation; 90°C for emergency and 150°C for short circuit conditions. Cables may be installed indoor and outdoor, exposed to sunlight, in raceway, conduit, duct or aerially supported by a messenger and directly
buried according NEC 250-51

Packing of TTU Cable:

Certificate:

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificate

USA is our main market. We have many distributors from USA companies. And we have obtained UL certifications for many products, such as TC cable, DLO cable,RHH/RHW/RHW-2/XHH/XHHW/XHHW-2/SIS, THHN/THHW/THW/THW-2/THWN/THWN-2/TW,SER/SEU/USE/USE-2/MHF, MV-90/MV-105,TC cable,MC cable,DLO,type DG,PV wire,AC Cable,Soow,Welding cable  and so on

Factory:

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.

Our Service:

1.How many year have our factory producing power cable?

Our factory produce power cable for 22 years.

2 Hong Long time the customer can get the new price after get your inquiry?

 Usually , It is only one hour is ok for us , because we are factory , we caculate the price by ourself.

3.Which port our factory is near to?   Tianjin port

4.Which payment term do we accept?

 T/T 30% in advance and balance before shiping the product or L/C 100% at sight both is ok.

5.What about the package for our power cable?

 It is usually packed in strong wooden drum.The drum size is usually:2.0m x 1.25m x 1.12m x 1.4m which suitable for container , we can do it according to customer requirments.

6.How long meter power cable for one wooden drum?

  This is according to power cable’s diameter and customer’s requirments.

7.How about our delivery time?

  According to your order’s quantity , for 1million meters power cable, it is only 25 working days is ok.

8.Do we provide sample for free?

  Yes , we provide the sample to you for free , you only paid for the delivery freight is ok.
