6.35/11kv Aluminum Conductor XLPE Insulated Power Cable

6.35/11kv Aluminum Conductor XLPE Insulated Power Cable image

Get Latest Price Request a quote

Product Details

Model NO.

mv power

Current

AC Cable

Insulation Material

PVC

Sheath Material

Copper

Material Shape

Round Wire

Wire Core Material

Steel

Certification

IEC BS

Model

Yjlv

Brand

Rneda

Transport Package

Steel-Wooden Drum, Steel Drum

Specification

IEC BS

Trademark

RNEDA

Origin

China

HS Code

8544492100

Production Capacity

1000m/Month

Product Description

33KV Medium Voltage XLPE Insulated Power Cable

1 Product Standard

This product is manufactured according to GB/T12706.2, equivalent to IEC60502.2. Or BS, DIN, ICEA standard as customer request.

2 Application

The product is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6/6kv~26/35kv.

3 Operating characteristics

– Rated power-frepuency voltage U0/U: 3.6/6kv~26/35kv.

– Max.admissible operating temperature of the conductor:90ºC.

– Max. short-circurt temperature of conductor shall not exceed 2500C. (5s maximum duration)

– The ambient temperature under installation should not below 00C.

– The bending radius of a single-core cable should not less than 20 times of the cable diameter.

The bending radius of a multi-core cable should not less than 15 times of the cable diameter.

4 Table of the voltage, cores and cross-section

Item	Category A ,B	3.6/6kV	6/10kV	8.7/15kV	12/20kV	18/30kV	21/35kV
Item	Category A ,B	6/6kV	8.7/10kV	12/15kV	18/20kV	–	26/35kV
Single core	mm2	25-1200	25-1200	35-1200	50-1200	50-1200	50-1200
Three core	mm2	25-400	25-400	35-400	50-400	50-400	50-400

The cable with Category A rated voltage is used in the situation requiring not over 1 min. of grounding fault lasting time. For the cable with Category B rated voltage, the grounding fault lasting time normally is not over 1 hour, max. lasting time is not over 8 hours, annual ground fault lasting time altogether should not be over 125 hours, Category C includes all the system expect Category A and B.

5 Type and Name

Type	Designation	Applications
YJV	Copper conductor,XLPE insulated, PVC sheathed power cable	For laying indoors,in tunnel or cable trench, unable to bear external mechanical forces. Single core cable is not allowed to laid in magnetic duct.
YJLV	Aluminum conductor,XLPE insulated, PVC sheathed power cable
YJY	Copper conductor, XLPE insulated, PE sheathed power cable
YJLY	Aluminum conductor, XLPE insulated, PE sheathed power cable
YJV22	Copper conductor,XLPE insulated, steel tape armoured,PVC sheathed power cable	For laying indoors,in tunnel in cable trench, or direct in ground,able to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct.
YJLV22	Aluminum conductor,XLPE insulated, steel tape armoured,PVC sheathed power cable
YJV23	Copper conductor,XLPE insulated, steel tape armoured,PE sheathed power cable
YJLV23	Aluminum conductor,XLPE insulated, steel tape armoured,PE sheathed power cable

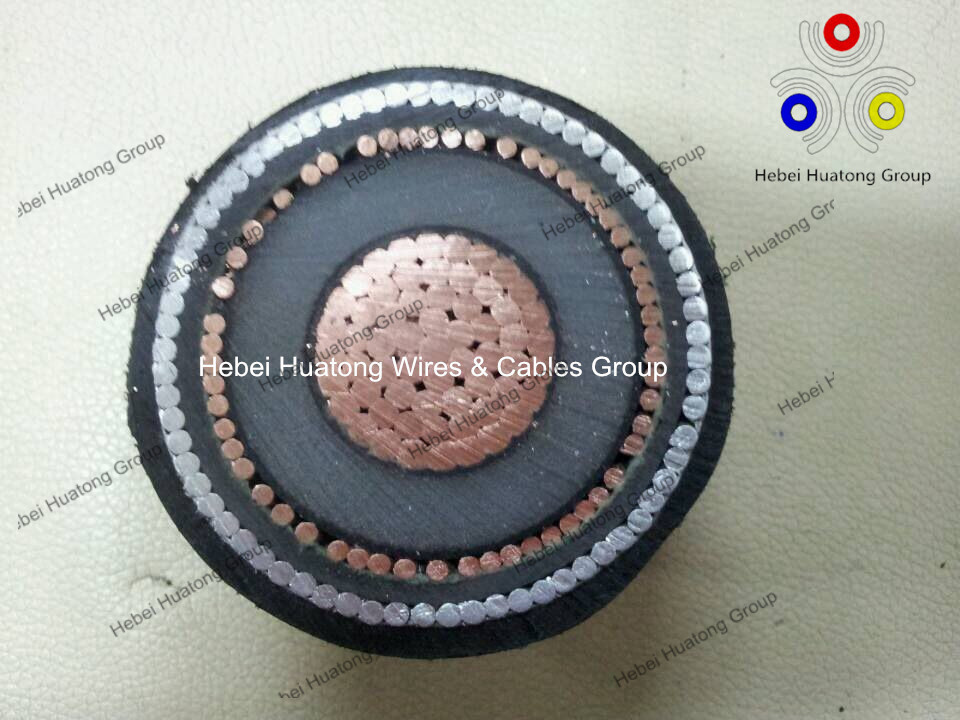

YJV32	Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable	For laying indoors,in tunnel cable trench, well or direct in ground,able to bear external mechanical forces and certain pulling force.

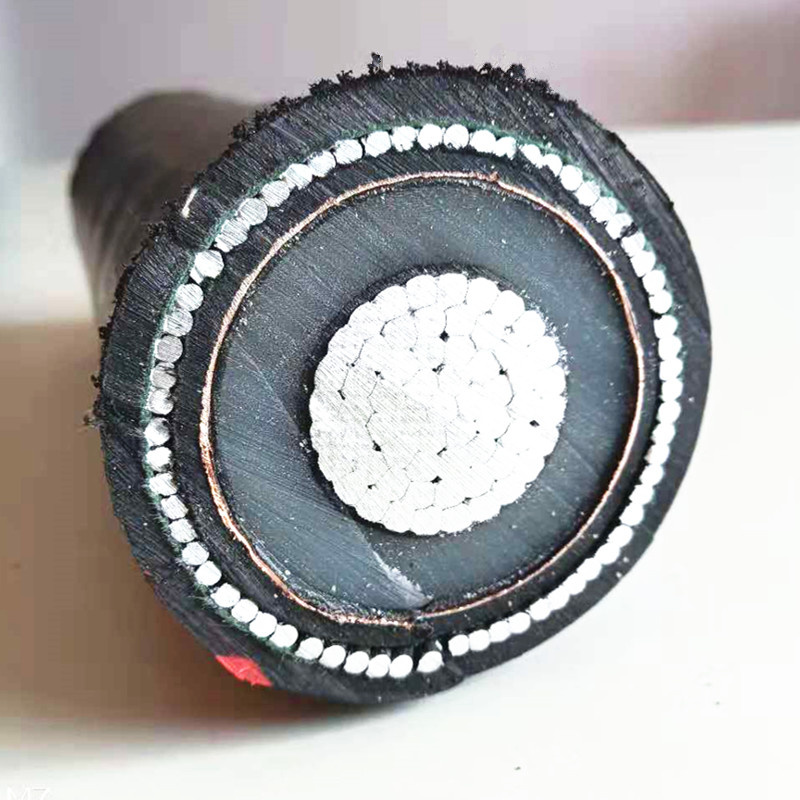

YJLV32	Aluminum conductor,XLPE insulated, steel wire armoured,PVC sheathed power cable
YJV33	Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable
YJLV33	Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable

We are China 6.35/11kv Aluminum Conductor XLPE Insulated Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
