H07RN-F heavy-duty 450/750V EPR CPE rubber flexible Cable
H07RN-F cable is a heavy-duty rubber flexible cable that is designed for electrical power supply that has a voltage rating of 450/750V. H07RN-F power cables are manufactured with a conductive copper core, ethylene propylene rubber (EPR) insulation and a polychloroprene (PCP) outer sheath. Therefore it provides high flexibility and is able to withstand chemical, mechanical and thermal stresses. H07RN-F cable is suitable for applications such as handling equipment, mobile power supplies, construction sites, stage and audio visual equipment, port areas and dams. Finally, h07 mains leads are considered heavy duty and flame retardant, as a result the leads are suitable for use in severe industrial environments.
H – means conformity to harmonised standards
07 – identifies the voltage rating as 450/750V
R – Refers to the EPR insulation
N – Relates to the PCP outer sheath
F – Indicates flexible copper conductors
Multi-Core H07RN-F Wiring Colours
2 core: Blue (Neutral) and Brown (Live Line 1)
3 core: Green/Yellow (Earth), Blue, Brown
4 core: Green/Yellow, Brown, Black (Live Line 2), Grey (Live Line 3)
5 core: Green/Yellow, Blue, Brown, Black, Grey
H07/05RN-F Rubber Cable ApplicationHandling equipment
Mobile power generators
Construction work sites
Stage and audio visual equipment,
Port areas and dams
Transformers
Mobile equipment (e.g welders and grinders)
|
NO. OF
CORES |
NOMINAL CROSS
SECTIONAL AREA |
NOMINAL
THICKNESS OF INSULATION |
NOMINAL OVERALL
DIAMETER |
NOMINAL
WEIGHT |
|
mm²
|
mm
|
mm
|
kg/km
|
|
|
3
|
1
|
0.8
|
8.74
|
117
|
|
3
|
1.5
|
0.8
|
9.68
|
147
|
|
3
|
2.5
|
0.9
|
11.48
|
223
|
|
3
|
4
|
1
|
13.2
|
297
|
|
3
|
6
|
1
|
14.78
|
390
|
|
3
|
10
|
1.2
|
19.9
|
705
|
|
3
|
16
|
1.2
|
23.31
|
1031
|
|
3
|
25
|
1.4
|
27.7
|
1512
|
|
3
|
35
|
1.4
|
30.2
|
1907
|
|
3
|
50
|
1.6
|
35.8
|
2651
|
|
3
|
70
|
1.6
|
40.1
|
3484
|
|
3
|
95
|
1.8
|
46.4
|
4594
|
Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters, With Advanced 20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers.We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane Cables and Other Special Use Cables
1.You are manufacturer or trader ?
Huadong cable is a professional cable&wire manufacturer with more than 20 years experience.Our factory located in jiaozuo city,henan province,china.
2.How can I get the quotation of the products ?
Pls send inquiry to us,we will reply you within 12 hours.
3.What does your company do regarding quality control?
1) all raw materials we selected are the highest quality.
2) professional and skillful workers care every details in handling the producing.
3) quality control department is specially responsible for quality checking in each process.
4.Do you provide OEM project service?
Yes,OEM & ODM order is warmly welcomed.
Our technical engineers can give you the professional suggestions.
5.Can I get the sample?
Yes,pls send inquiry to us,then our sales manager will arrange the samples for you.
We are China 450/750V 3X10mm2 3*10mm2 3G10 Cu/Epr/CPE H07rn-F Rubber CPE Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: CPE Cable, H07rn-F Flexible Cable, Henan Huadong Cable Co., Ltd.Similar Or Related
-
-

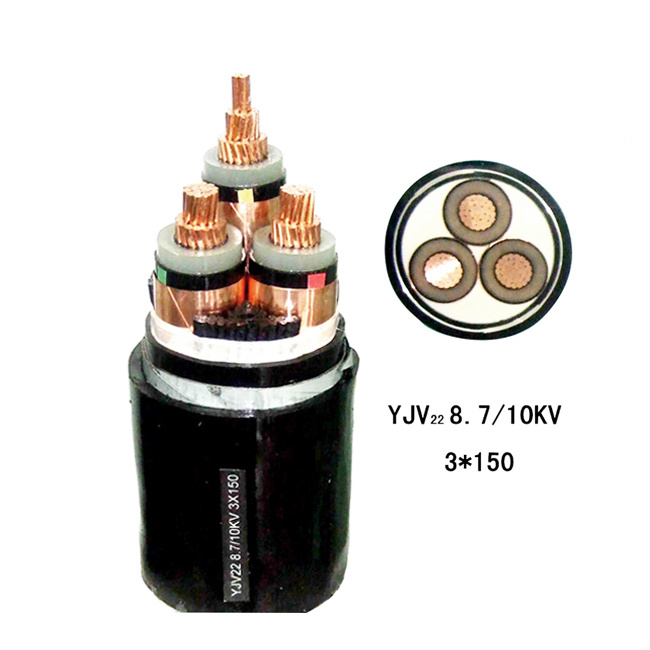

1 3 Cores 120mm XLPE 11kv 15kv Power Price Cable
-

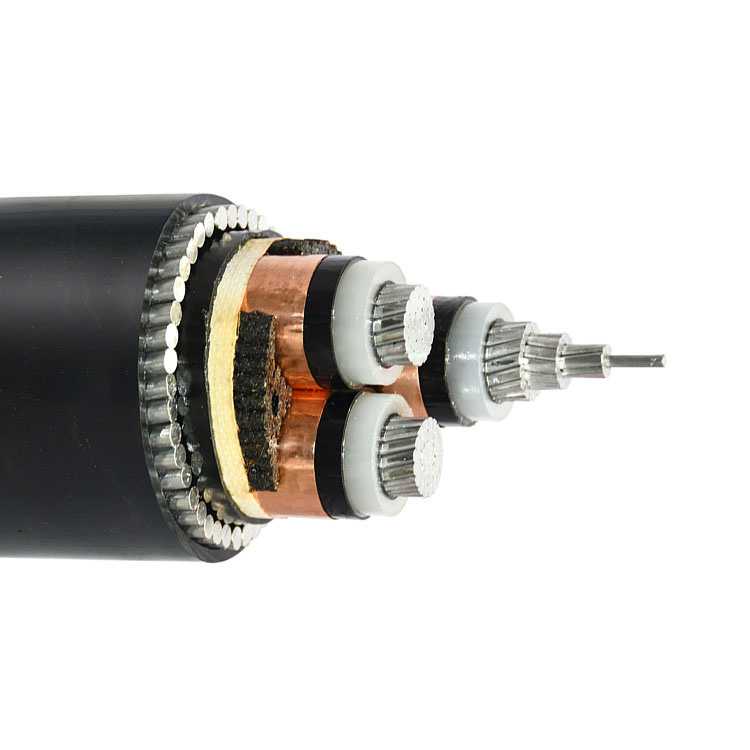

Medium Voltage Aluminum Armoured PVC Power 4 Core 16mm Underground Electric Cable
-

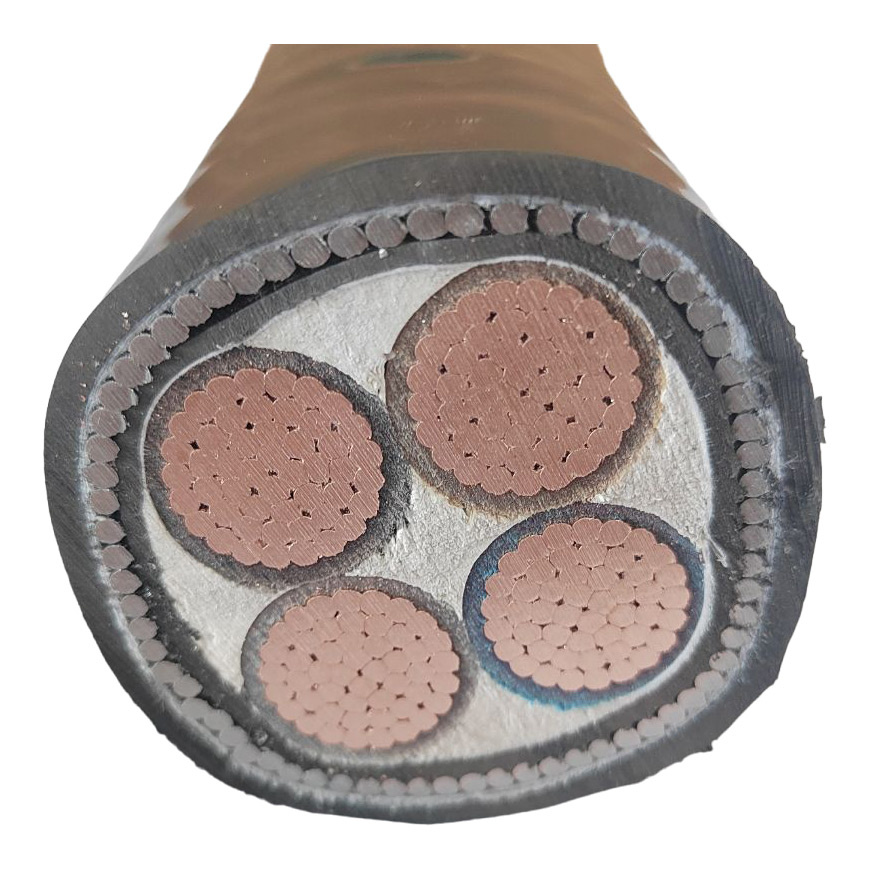

Huadong Low-Voltage Low Voltage 4c 4 Core 4X120mm2 4X185mm2 4X240mm2 4X300mm2 4core PVC XLPE Industrial Armoured Power Cable
-

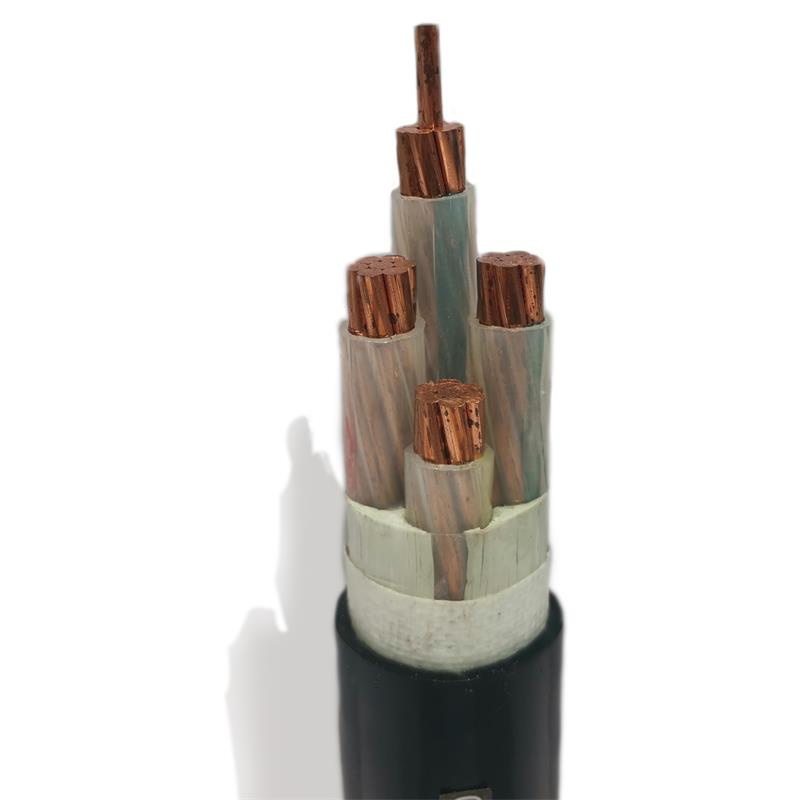

Non Armoured IEC Low-Voltage Low Voltage Power Price List PVC Lightning XLPE Cable
