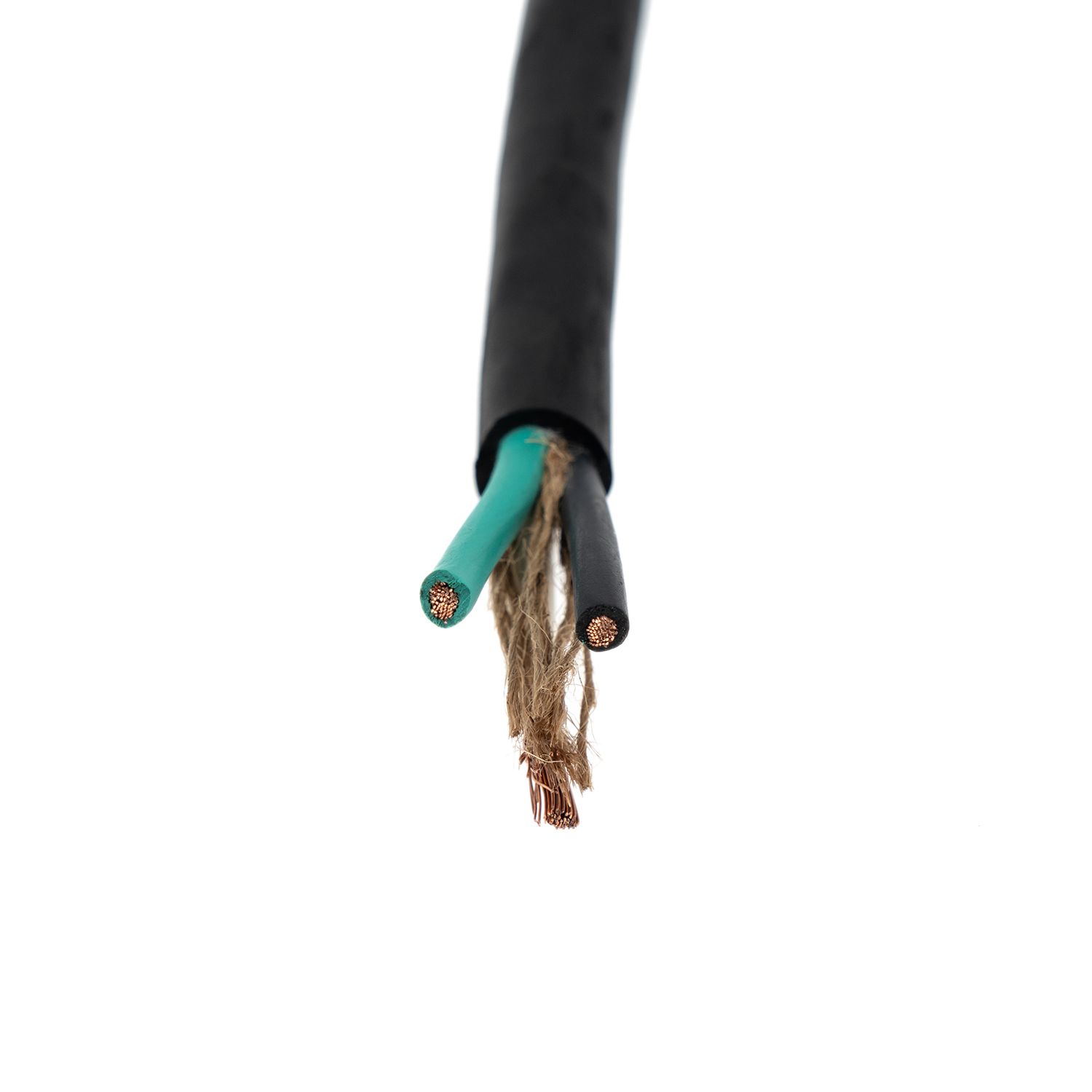

300V/600V Outdoor a Tough Rubber Outside Jacket Weather/Oil Resistant Soow Sjoow Cable

300V/600V Outdoor a Tough Rubber Outside Jacket Weather/Oil Resistant Soow Sjoow Cable image

Get Latest Price Request a quote

Product Details

Current

AC Cable

Insulation Material

Rubber or PVC

Sheath Material

Rubber or PVC

Material Shape

Round Wire

Wire Core Material

Tinned Wire

Certification

ISO

Model

Soow

Brand

Rne Da

Conductor

Fully Annealed, Stranded Bare Copper, Per ASTM B-1

Insulated

Epr

Sheathed

CPE

Size

18 - 2AWG

Cores

2,3 ,4

Products Name

Soow

Certificate

Transport Package

Standard Export Drum

Specification

IEC60228

Trademark

RNE DA

Origin

Hebei, China

HS Code

85444921

Production Capacity

500km/Month

Product Description

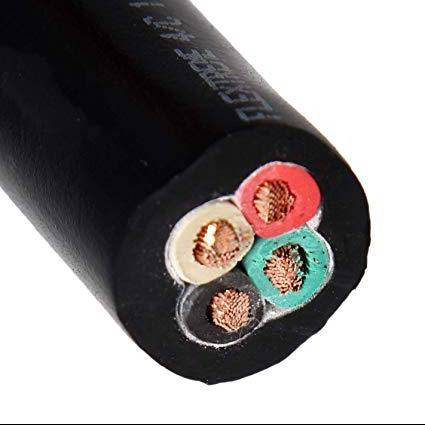

UL Listed 600V 4 Cores SOOW SJOOW Rubber Power Cable

UL no:477374

APPLICATION
TYPE SOOW Cable is for use in heavy-duty industrial applications where flexibility and durability is required. SOOW is designed for extra hard usage on industrial equipment, heavy tools, motor and welding leads, power extensions, portable machinery, sound equipment, portable stage lights, marine dockside power and mining applications. Constructed of color-coded synthetic oil, ozone and water resistant rubber (EPDM) insulation and an oil resistant thermoset chlorinated polyethylene (CPE) jacket, SOOW is rated for indoor/outdoor use.

SOOW flexible rubber cords carry a 600 volt rating. They are also manufactured as a 300 volt rated Junior Service cord designated as SJOOW. Using the key, a SJEOOW cord is a 300 volt (junior service) elastomer plastic oil resistant inner and outer jacket portable cord.

SOOW –

S for Service
O for Oil-resistant insulation
O for Oil-resistant jacket
W for Weather and Water resistance

Applications

Portable tools

Industrial and processing equipment

Construction equipment

Cranes and hoists

Track systems

Battery chargers

Portable appliances

Small motors and associated machinery

Electrical equipment exposed to oils, solvents, flame, or moisture

STANDARDS & REFERENCES
Type SOOW Cords/Cable meets or exceeds the applicable requirements of the following standards and
specifications:

UL Standard 62 for Flexible Cords
CSA Standard 22.2 No. 49 for Flexible Cords
MSHA flame resistance for mining applications
NEC Article 400
RoHS Compliant

SOOW offers:
    • Excellent resistance to oils, acids, chemicals, water, ozone, extreme
      temperatures, cuts, tears and abrasion
    • Sunlight resistant
    • Flame retardant
    • Indoor/outdoor rated
    • Highly flexible
    • Maximum continuous conductor temperature: 90°C DRY

CONSTRUCTION
Conductors: Bare, annealed copper per ASTM B-3 Flexible, bunch-stranded per UL-62
Separator: A paper tape is applied between the conductor and insulation to facilitate stripping.
Insulation: Color coded synthetic rubber (EPDM) oil and water resistant per UL-62
Jacket: Black Chlorinated Polyethylene (CPE)
Cabling: Conductors are assembled round with fillers as needed.
Temperature Range: -40°C to +90°C
Voltage Rating: 600 Volts for SOOW,300 Volts for SJOOW

Data sheet:

Conductor Stranding			Nominal Insulation Thickness	Nominal Jacket Thickness	Nominal Overall Diameter (in)	Weight	Ampacity
n	/	AWG/inch	mil	mil	in	lbs/1000ft	A
16	/	30	30	60	0.33	70	10
16	/	30	30	60	0.35	80	10
16	/	30	30	60	0.37	96	7
26	/	30	30	60	0.36	86	13
26	/	30	30	60	0.37	99	13
26	/	30	30	60	0.41	119	10
41	/	30	45	80	0.49	155	18
41	/	30	45	80	0.51	179	18
41	/	30	45	80	0.56	215	15
65	/	30	45	95	0.56	206	25
65	/	30	45	95	0.58	239	25
65	/	30	45	95	0.63	290	20
104	/	30	45	95	0.62	266	30
104	/	30	45	95	0.66	316	30
104	/	30	45	95	0.72	385	25
133	/	29	60	110	0.83	505	40
133	/	29	60	125	0.93	646	35
133	/	29	60	125	0.93	684	35
133	/	27	60	125	0.95	694	55
133	/	27	60	140	1.07	885	45
133	/	27	60	140	1.07	946	45
133	/	0.0177	60	140	1.09	952	70
133	/	0.0177	60	155	1.22	1210	60
133	/	0.0177	60	155	1.22	1304	60
133	/	0.0223	60	155	1.26	1344	95
133	/	0.0223	60	170	1.41	1705	80
133	/	0.0223	60	170	1.41	1853	80
