300/500V Ngflgou Rubber Flat Power Control Cable for Medium-Level Mechanical Stress
300/500V Ngflgou Rubber Flat Power Control Cable for Medium-Level Mechanical Stress image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
2 ….. core insulation of a rubber compound (3Gl3), laid up parallel
3 ….. outer sheath out of a rubber compound (5GM3), black, flame retardant
Standards:
DIN VDE 0250-809
DIN EN 60228 class 5 and 6 (construction)
HD 308 S2 (core identification)
| Number of cores and | Copper | Cond. | Overall | Weight |
| nominal cross section | figure | construction | diameter | |
| (appr. value) | appr. | appr. | ||
| mm2 | kg/km | mm | mm | kg/km |
| 4 x 1,5 | 60,0 | 84 x 0,16 | 6,2 x 17,5 | 200,0 |
| 5 x 1,5 | 75,0 | 84 x 0,16 | 6,2 x 21,5 | 240,0 |
| 7 x 1,5 | 105,0 | 84 x 0,16 | 6,2 x 29,0 | 360,0 |
| 8 x 1,5 | 120,0 | 84 x 0,16 | 6,2 x 31,5 | 370,0 |
| 12 x 1,5 | 180,0 | 84 x 0,16 | 6,5 x 47,0 | 620,0 |
| 24 x 1,5 | 360,0 | 84 x 0,16 | 13,5 x 56,0 | 1.010,0 |
| 4 x 2,5 | 100,0 | 140 x 0,16 | 7,5 x 21,0 | 280,0 |
| 5 x 2,5 | 125,0 | 140 x 0,16 | 7,5 x 27,0 | 400,0 |
| 7 x 2,5 | 175,0 | 140 x 0,16 | 7,5x 35,0 | 520,0 |
| 8 x 2,5 | 200,0 | 140 x 0,16 | 7,5 x 39,0 | 550,0 |
| 12 x 2,5 | 300,0 | 140 x 0,16 | 8,0 x 56,0 | 800,0 |
| 24 x 2,5 | 600,0 | 140 x 0,16 | 17,0 x 72,5 | 1.690,0 |
| 4 x 4 | 160,0 | 224 x 0,16 | 9,0 x 26,0 | 410,0 |
| 4 x 6 | 240,0 | 192 x 0,21 | 9,5 x 29,0 | 600,0 |
| 4 x 10 | 400,0 | 320 x 0,21 | 11,0 x 33,0 | 800,0 |
| 4 x 16 | 640,0 | 512 x 0,21 | 13,0 x 38,0 | 1.150,0 |
| 4 x 25 | 1.000,0 | 800 x 0,21 | 15,0 x 49,5 | 1.700,0 |
| 4 x 35 | 1.400,0 | 280 x 0,41 | 17,0 x 55,0 | 2.200,0 |
| 5 x 4 | 200,0 | 224 x 0,16 | 9,0 x 32,0 | 560,0 |
| 5 x 6 | 300,0 | 192 x 0,21 | 9,5 x 35,0 | 650,0 |
| 5 x 16 | 800,0 | 512 x 0,21 | 13,0 x 50,0 | 1.450,0 |
| 7 x 4 | 280,0 | 224 x 0,16 | 9,0 x 42,0 | 700,0 |
| 7 x 6 | 420,0 | 192 x 0,21 | 9,5 x 44,5 | 850,0 |
| 7 x 10 | 700,0 | 320 x 0,21 | 12,1 x 63,5 | 1.350,0 |
1.You are manufacturer or trader ?
We are a professional cable&wire manufacturer with more than 20 years experience.Our factory located in jiaozuo city,henan province,china.
2.How can I get the quotation of the products ?
Pls send inquiry to us,we will reply you within 12 hours.
3.What does your company do regarding quality control?
1) all raw materials we selected are the highest quality.
2) professional and skillful workers care every details in handling the producing.
3) quality control department is specially responsible for quality checking in each process.
4.Do you provide OEM project service?
Yes,OEM & ODM order is warmly welcomed.
Our technical engineers can give you the professional suggestions.
5.Can I get the sample?
Yes,pls send inquiry to us,then our sales manager will arrange the samples for you.
We are China 300/500V Ngflgou Rubber Flat Power Control Cable for Medium-Level Mechanical Stress manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Get Latest Price Request a quote
Tags: Flat Overhead Crane Cable, Flat Rubber Cable, Henan Huadong Cable Co., Ltd.Similar Or Related
-

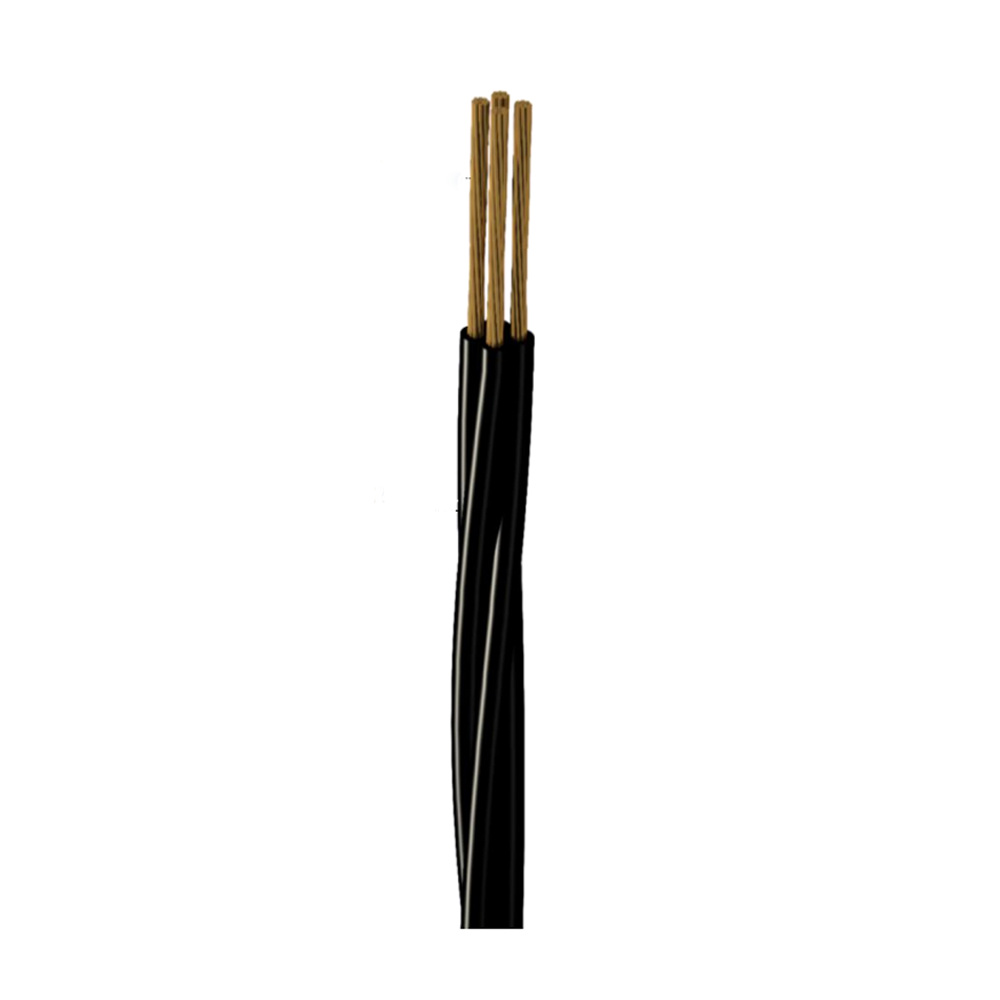

Cai 0.6/1kv Copper XLPE Aerial Distribution Cable
-

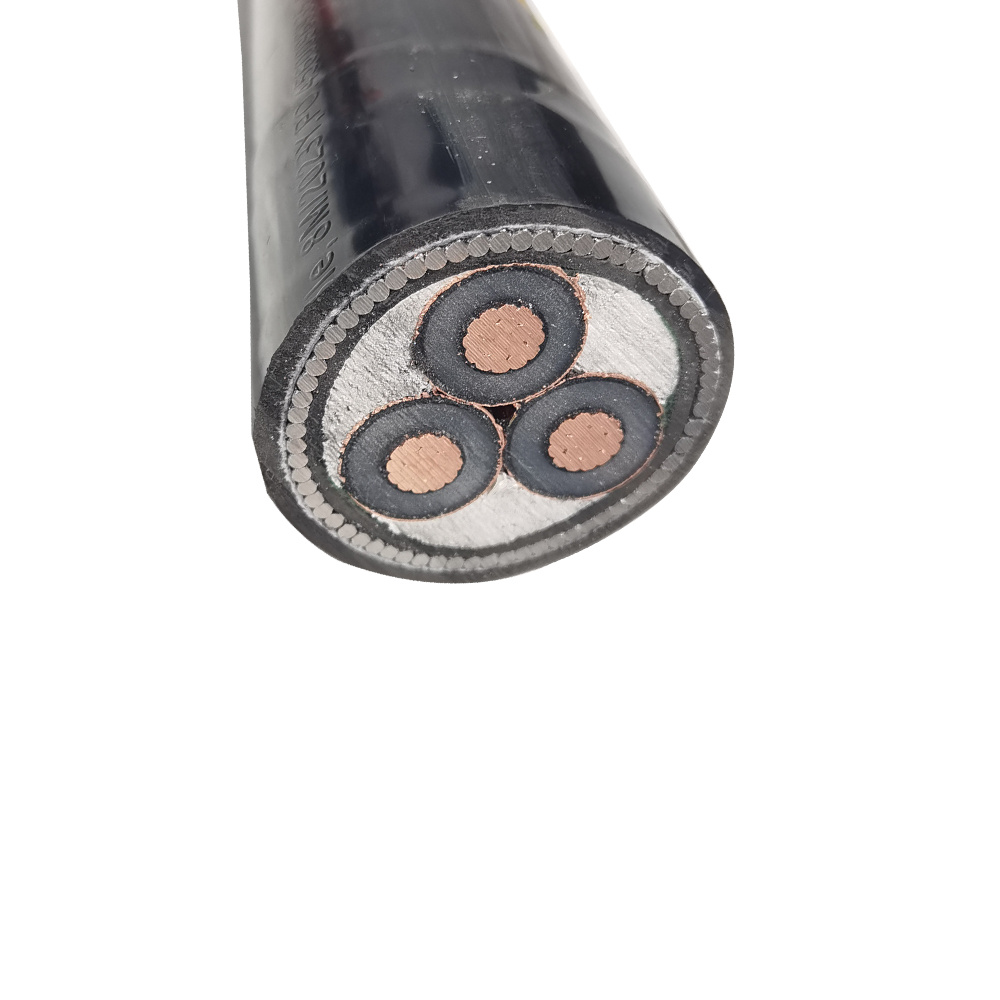

High Quality Construction Underground 11kv 132 Kv Cables 300mm XLPE 4 Core Armoured Cable
-

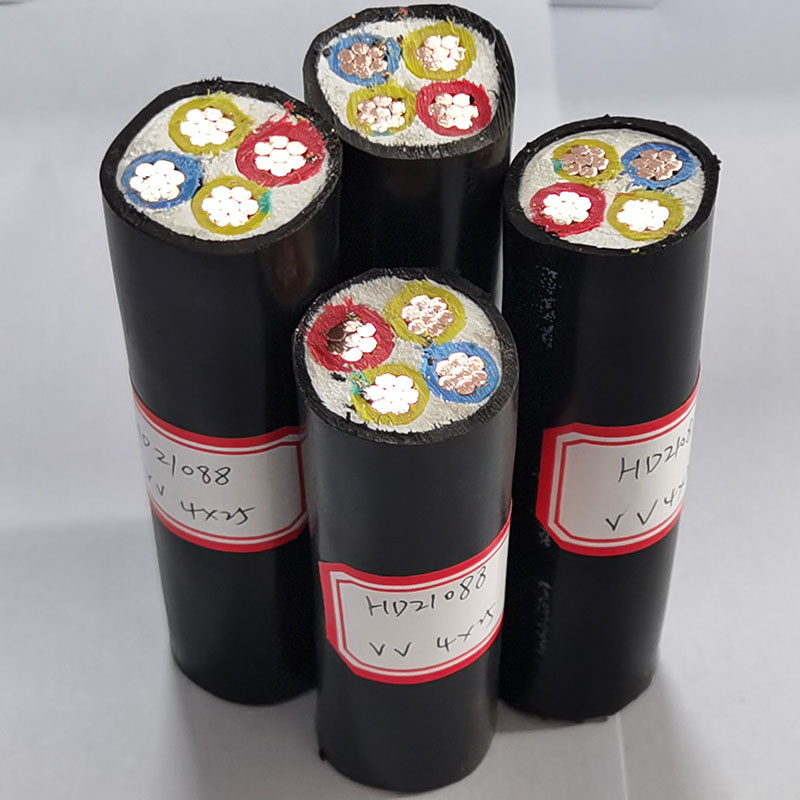

Factory Price Construction Station Underground Copper XLPE Electric Wire Swa Power Cable
-

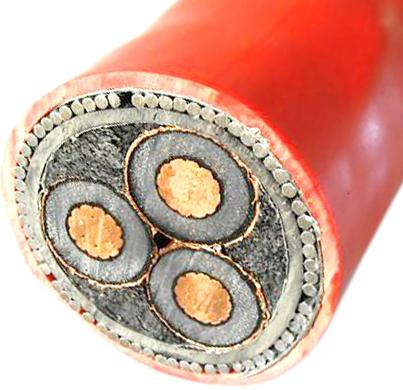

AS/NZS Fire Resistant 11kv 3 Core Copper XLPE Insulated Swa Armoured Nylon Braid MDPE Sheath Power Cable Wire
-

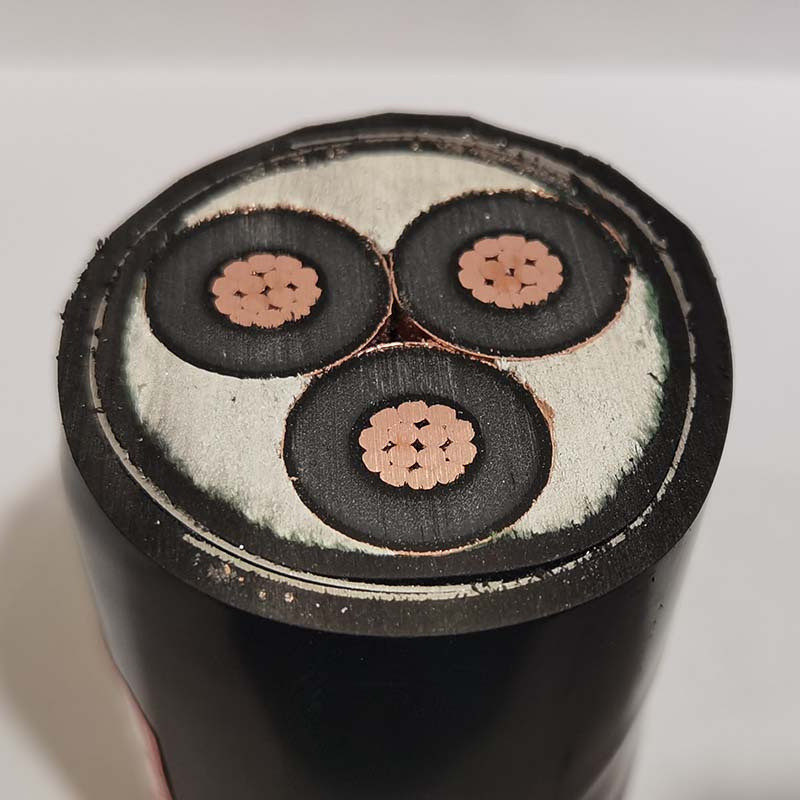

High Quality Industrial Electrical Kv 110 Price List 1000mm2 XLPE Power Copper Cable
