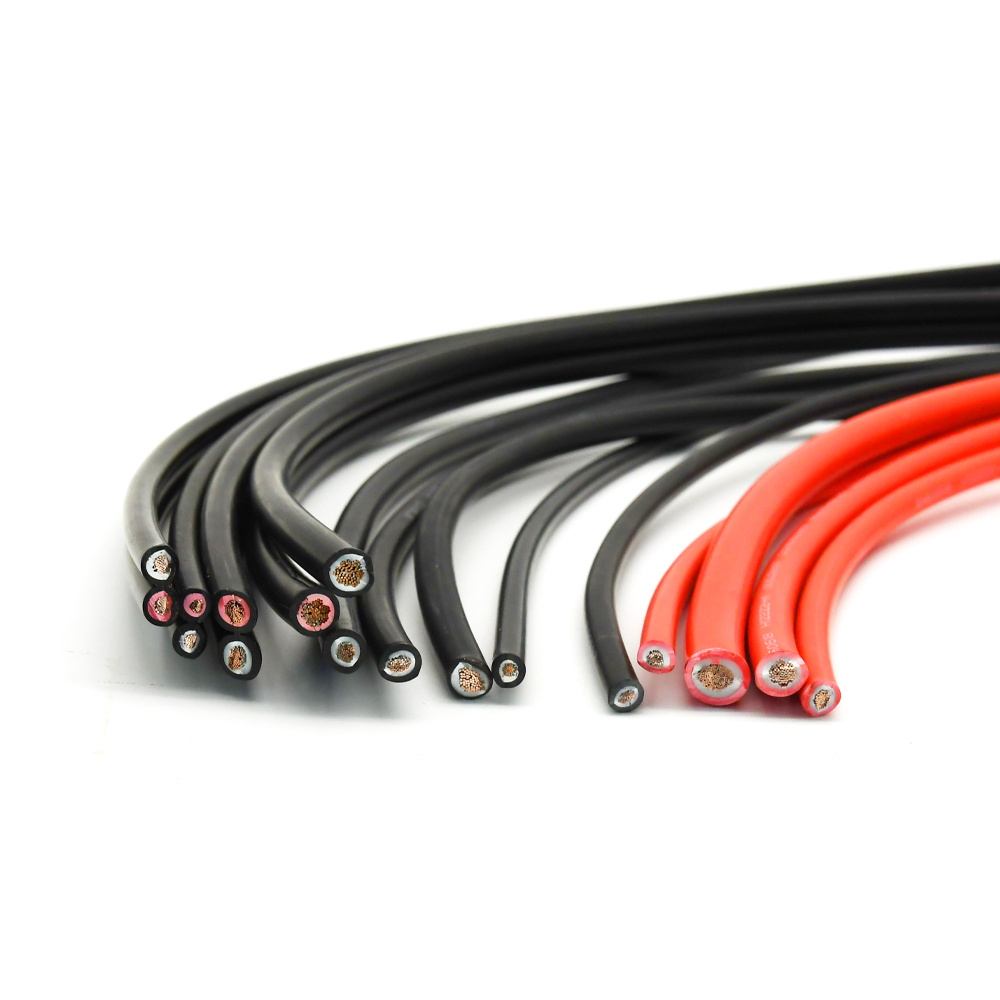

2kv 750 Kcmil Al Direct Burial Paralleled Red and Black PV Cable with UL Listed

2KV 750 KCMIL AL Direct Burial paralleled RED and Black PV cable with UL listed

Applications:

Type Photovoltaic copper conductors are suitable for outdoor rooftop applications without conduit and for use in conduits and raceways installed underground in conduit in wet locations, and where condensation and moisture accumulations within the conduit do not exceed 90ºC. Applications requiring direct burial is permitted for Type Photovoltaic per UL-854. Applications requiring type Photovoltaic conductor, temperatures shall not exceed 90ºC in wet or dry locations

Features:

Sunlight, ozone, and UV resistant

Moisture resistant

RoHS compliant

REACH compliant

-40°C to +90°C temperature range

Standards:
Underwriters Laboratories Standards UL-4703, UL-854, UL-44
UL 1685-FT4/IEEE 1202 (70,000 Btu/hr) Flame Test (1/0 AWG and larger)
ICEA T-29-520 (210,000 Btu/hr) Flame Test
NEMA WC70/ICEA S-95-658
NFPA 70: National Electrical Code (NEC)

CONSTRUCTION:

Conductors:
Stranded conductors, uncoated copper per ASTM-B787 and ASTM-B8
Insulation:
Cross-linked polyethylene (XLPE) insulation per UL-854, UL-4703 and UL-44

.

Features:
Available in 600V and 1000V/2000V. All cables comply with UL’s VW-1 (Vertical Wire) Flame Test. Insulation compounds are rated for flame and sunlight-resistance in all sizes and colors. Photovoltaic conductors of 1/0 through 1000 KCMIL are rated for CT use. Sequential foot markings located every foot on master reels only for 1 AWG through 1000 KCMIL unless otherwise specified. RoHS compliant. Flexibility at Low Temperature Test. Carries -40 °C  rating.

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS,NF, AS/NZS CSA GOST and so on.we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.


Company Information:

HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
