2000m/Drum CE Approved Shan 61X2.5 mm2 Shanghai China Electrical Screened Cable

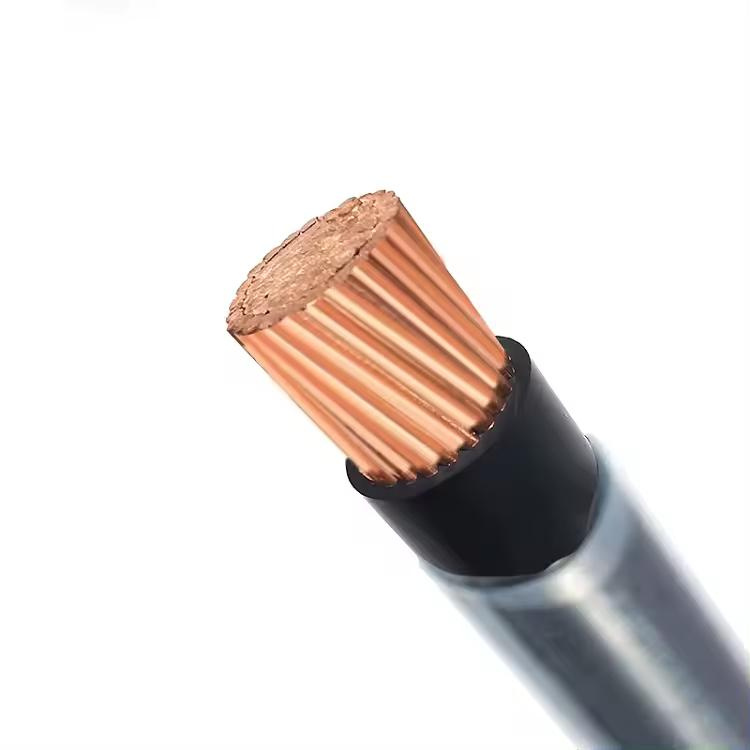

2000m/Drum CE Approved Shan 61X2.5 mm2 Shanghai China Electrical Screened Cable image

Get Latest Price Request a quote

Product Details

Model NO.

KVVP-450/750V 61x2.5 mm2

Application

Power Station

Conductor Material

Copper

Sheath Material

PVC

Insulation Material

PVC

Material Shape

Round Wire

Range of Application

Power Station

Certification

ISO9001, CE, CCC, RoHS, VDE, Kema

Brand

Shanghai Shenghua

Conductor

Solid Copper

Insulation

PVC

Shield

Copper Wire Braiding

Outer Sheath

PVC

Standard

IEC60227

Rated Voltage

600/1000V

Certificate

Kema,TUV

Bending Radius

20X Cable O.D

Test Voltage

3.5kv/5min

Insulation Color

White with No.1,2,3...

Jacket Color

Black

Yes

Oil-Resistant

Yes

Sample

Free

Transport Package

2000m/Drum

Specification

61x2.5 mm2

Trademark

SHAN CABLE

Origin

Shanghai China

HS Code

8544492100

Production Capacity

9853km/Week

Product Description

Copper Wire Braiding Shielded Control Cable KVVP-450/750V 61×2.5 mm2
Application

Used as control cable or signal cable or power supply cable of electronic and electrical equipment.,

JB 8734.5-1998

Rated voltage: 450/750V

Max. Conductor Temp. in normal use: 70ºC

CE, RoHS, CCC, KEMA and more others at request

Technical Specifications:

Cores ×Cross-section	Thickness of Insulation		Braid Coverage	Thickness of Sheath	Approx. O.D.		Approx. Weight	Max. Resistance of conductor at 20ºC	Min. Resistance of Insulation at 70ºC
mm²	mm		%	mm	mm		kg/km	MΩ/km	MΩ/km
mm²	mm		%	mm	mm		kg/km	MΩ/km	Cl.1	Cl.2
2×0.75	0.6	0.8	80~85	1.2	8.4	9.4	70.2	24.5	0.012	0.014
2×1	0.6	0.8	80~85	1.2	8.8	9.8	84.1	18.1	0.011	0.013
2×1.5	0.7	0.8	80~85	1.5	9.7	10.7	109	12.1	0.011	0.010
2×2.5	0.8	0.8	80~85	1.5	11.1	12.1	152	7.41	0.010	0.009
2×4	0.8	1	80~85	1.5	12.1	13.1	190	4.61	0.0085	0.0077
2×6	0.8	1	80~85	1.5	13.8	14.8	252	3.08	0.0070	0.0065
2×10	1	1	80~85	1.7	16.7	17.7	405	1.83	/	0.0065
3×0.75	0.6	0.8	80~85	1.2	8.8	9.8	79	24.5	0.012	0.0065
3×1	0.6	0.8	80~85	1.2	9.1	10.2	92	18.1	0.011	0.0065
3×1.5	0.7	0.8	80~85	1.5	10.2	11.2	130	12.1	0.011	0.0065
3×2.5	0.8	0.8	80~85	1.5	11.6	12.7	180	7.41	0.010	0.0065
3×4	0.8	1	80~85	1.5	13.3	14.4	233	4.61	0.0085	0.0065
3×6	0.8	1	80~85	1.5	14.7	15.8	342	3.08	0.0070	0.0065
3×10	1	1	80~85	1.7	17.6	18.7	494	1.83	/	0.0065
4×0.75	0.6	0.8	80~85	1.2	9.4	10.5	102	24.5	0.012	0.014
4×1	0.6	0.8	80~85	1.2	9.8	11	129	18.1	0.011	0.013
4×1.5	0.7	0.8	80~85	1.5	10.9	12.1	156	12.1	0.011	0.010
4×2.5	0.8	0.8	80~85	1.5	13.2	14.3	223	7.41	0.010	0.009
4×4	0.8	1	80~85	1.5	14.6	15.8	318	4.61	0.0085	0.0077
4×6	0.8	1	80~85	1.5	16	17.1	417	3.08	0.0070	0.0065
4×10	1	1	80~85	1.7	19.6	20.8	641	1.83	/	0.0065
5×0.75	0.6	0.8	80~85	1.2	10	11.3	123	24.5	0.012	0.014
5×1	0.6	0.8	80~85	1.2	10.5	11.8	142	18.1	0.011	0.013
5×1.5	0.7	0.8	80~85	1.5	11.8	13.1	187	12.1	0.011	0.010
5×2.5	0.8	0.8	80~85	1.5	14.2	15.5	293	7.41	0.010	0.009
5×4	0.8	1	80~85	1.5	15.8	17.1	387	4.61	0.0085	0.0077
5×6	0.8	1	80~85	1.5	17.3	18.6	512	3.08	0.0070	0.0065
5×10	1	1	80~85	1.7	21.3	22.6	809	1.83	/	0.0065
7×0.75	0.6	0.8	80~85	1.2	10.7	12.1	163	24.5	0.012	0.014
7×1	0.6	0.8	80~85	1.2	11.3	12.7	188	18.1	0.011	0.013
7×1.5	0.7	0.8	80~85	1.5	13.3	14.7	263	12.1	0.011	0.010
7×2.5	0.8	0.8	80~85	1.5	15.5	16.9	392	7.41	0.010	0.009
7×4	0.8	1	80~85	1.5	17	18.4	526	4.61	0.0085	0.0077
7×6	0.8	1	80~85	1.5	18.7	20.1	691	3.08	0.0070	0.0065
7×10	1	1	80~85	1.7	23.1	24.5	1091	1.83	/	0.0065
8×0.75	0.6	0.8	80~85	1.2	11.4	12.9	183	24.5	0.012	0.014
8×1	0.6	0.8	80~85	1.5	12	13.5	229	18.1	0.011	0.013
8×1.5	0.7	0.8	80~85	1.5	14.1	15.7	313	12.1	0.011	0.010
8×2.5	0.8	0.8	80~85	1.5	16.6	18.1	445	7.41	0.010	0.009
8×4	0.8	1	80~85	1.7	18.3	19.8	603	4.61	0.0085	0.0077
8×6	0.8	1	80~85	1.7	20.6	22.1	792	3.08	0.0070	0.0065
8×10	1	1	80~85	1.7	25.1	26.7	1252	1.83	/	0.0065
10×0.75	0.6	0.8	80~85	1.5	13.6	15.4	255	24.5	0.012	0.014
10×1	0.6	0.8	80~85	1.5	14.5	16.3	294	18.1	0.011	0.013
10×1.5	0.7	0.8	80~85	1.5	16.4	18.2	382	12.1	0.011	0.010
10×2.5	0.8	0.8	80~85	1.5	19.1	20.9	547	7.41	0.010	0.009
10×4	0.8	1	80~85	1.7	21.6	23.4	743	4.61	0.0085	0.0077
10×6	0.8	1	80~85	1.7	23.9	25.7	1005	3.08	0.0070	0.0065
10×10	1	1	80~85	1.7	30	31.8	1552	1.83	/	0.0065
12×0.75	0.6	0.8	80~85	1.5	14	15.8	282	24.5	0.012	0.014
12×1	0.6	0.8	80~85	1.5	14.9	16.8	326	18.1	0.011	0.013
12×1.5	0.7	0.8	80~85	1.5	16.9	18.7	428	12.1	0.011	0.010
12×2.5	0.8	0.8	80~85	1.7	20.1	22.0	636	7.41	0.010	0.009
12×4	0.8	1	80~85	1.7	22.2	24.1	846	4.61	0.0085	0.0077
12×6	0.8	1	80~85	1.7	24.6	26.4	1150	3.08	0.0070	0.0065
14×0.75	0.6	0.8	80~85	1.5	14.8	16.7	313	24.5	0.012	0.014
14×1	0.6	0.8	80~85	1.5	15.6	17.5	364	18.1	0.011	0.013
14×1.5	0.7	0.8	80~85	1.5	17.6	19.6	479	12.1	0.011	0.010
14×2.5	0.8	0.8	80~85	1.7	21.0	23.0	717	7.41	0.010	0.009
14×4	0.8	1	80~85	1.7	23.3	25.3	959	4.61	0.0085	0.0077
14×6	0.8	1	80~85	1.7	26	28	1306	3.08	0.0070	0.0065
16×0.75	0.6	0.8	80~85	1.5	15.4	17.5	345	24.5	0.012	0.014
16×1	0.6	0.8	80~85	1.5	16.3	18.4	402	18.1	0.011	0.013
16×1.5	0.7	0.8	80~85	1.5	18.5	20.6	533	12.1	0.011	0.010
16×2.5	0.8	0.8	80~85	1.7	22.1	24.2	800	7.41	0.010	0.009
19×0.75	0.6	0.8	80~85	1.5	16.1	18.3	383	24.5	0.012	0.014
19×1	0.6	0.8	80~85	1.5	17	19.2	450	18.1	0.011	0.013
19×1.5	0.7	0.8	80~85	1.7	19.8	22	616	12.1	0.011	0.010
19×2.5	0.8	0.8	80~85	1.7	23.2	25.4	904	7.41	0.010	0.009
24×0.75	0.6	0.8	80~85	1.7	18.8	21.4	469	24.5	0.012	0.014
24×1	0.6	0.8	80~85	1.7	19.9	22.5	570	18.1	0.011	0.013
24×1.5	0.7	0.8	80~85	1.7	22.7	25.3	759	12.1	0.011	0.010
24×2.5	0.8	0.8	80~85	1.7	27.0	29.6	1150	7.41	0.010	0.009
27×0.75	0.6	0.8	80~85	1.7	19.2	21.9	508	24.5	0.012	0.014
27×1	0.6	0.8	80~85	1.7	20.3	23	618	18.1	0.011	0.013
27×1.5	0.7	0.8	80~85	1.7	23.2	25.9	827	12.1	0.011	0.010
27×2.5	0.8	0.8	80~85	1.7	27.6	30.2	1258	7.41	0.010	0.009
30×0.75	0.6	0.8	80~85	1.7	19.8	22.6	568	24.5	0.012	0.014
30×1	0.6	0.8	80~85	1.7	21	23.7	670	18.1	0.011	0.013
30×1.5	0.7	0.8	80~85	1.7	24	26.7	926	12.1	0.011	0.010
30×2.5	0.8	0.8	80~85	1.7	28.5	31.3	1373	7.41	0.010	0.009
37×0.75	0.6	0.8	80~85	1.7	21.2	24.2	666	24.5	0.012	0.014
37×1	0.6	0.8	80~85	1.7	22.4	25.4	790	18.1	0.011	0.013
37×1.5	0.7	0.8	80~85	1.7	25.9	28.9	1096	12.1	0.011	0.010
37×2.5	0.8	0.8	80~85	2	31.3	34.3	1679	7.41	0.010	0.009
44×0.75	0.6	0.8	80~85	1.7	23.5	26.9	803	24.5	0.012	0.014
44×1	0.6	0.8	80~85	1.7	25.1	28.5	952	18.1	0.011	0.013
44×1.5	0.7	0.8	80~85	1.7	29.5	32.9	1284	12.1	0.011	0.010
44×2.5	0.8	0.8	80~85	2	35.3	38.7	2011	7.41	0.010	0.009
48×0.75	0.6	0.8	80~85	1.7	23.8	27.3	854	24.5	0.012	0.014
48×1	0.6	0.8	80~85	1.7	25.5	28.9	1015	18.1	0.011	0.013
48×1.5	0.7	0.8	80~85	1.7	29.9	33.4	1374	12.1	0.011	0.010
48×2.5	0.8	0.8	80~85	2	35.9	39.3	2155	7.41	0.010	0.009
52×0.75	0.6	0.8	80~85	1.7	24.4	28	909	24.5	0.012	0.014
52×1	0.6	0.8	80~85	1.7	26.1	29.7	1082	18.1	0.011	0.013
52×1.5	0.7	0.8	80~85	2	30.7	34.3	1508	12.1	0.011	0.010
52×2.5	0.8	0.8	80~85	2.2	37.0	40.6	2338	7.41	0.010	0.009
61×0.75	0.6	0.8	80~85	1.7	26	29.8	1032	24.5	0.012	0.014
61×1	0.6	0.8	80~85	1.7	27.6	31.4	1233	18.1	0.011	0.013
61×1.5	0.7	0.8	80~85	2	32.4	36.2	1722	12.1	0.011	0.010
61×2.5	0.8	0.8	80~85	2.2	39.1	42.9	2678	7.41	0.010	0.009

We are China 2000m/Drum CE Approved Shan 61X2.5 mm2 Shanghai China Electrical Screened Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
