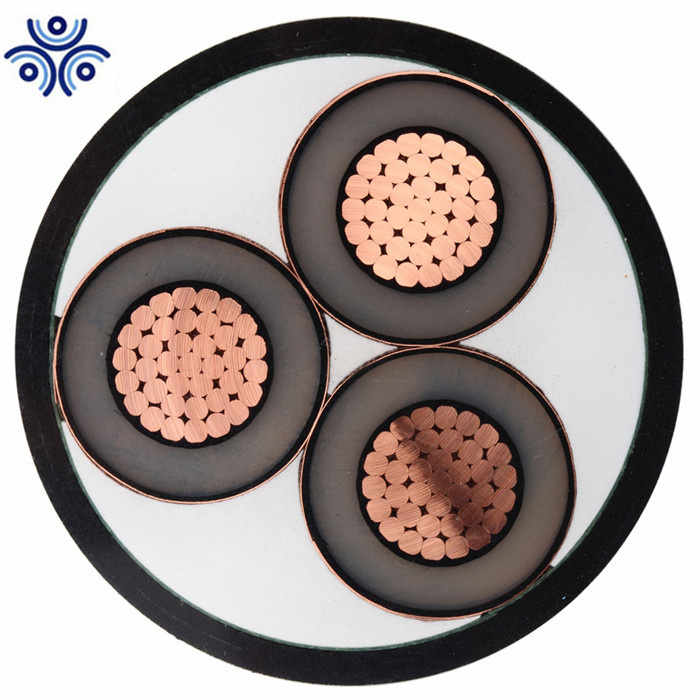

12/20kv Electric Power Cable 3core 95mm Steel Wire Armour PVC Jacket

0.6/1kv Copper Core PVC Insualted Steel Armored Power Cable

1 Information

a, Number of cores:

1,  2,  3,   3+1,   3+2,    3+3,  4,    4+1,    4+2,   5 and so on.

 b, Construction:

Conductor: Solid or stranded copper

Insulation: Polyvinyl chloride (PVC)

Filler: Polypropylene filament with lapped binding tape

Binder: Binding tape

Inner sheath: Polyvinyl chloride (PVC)

Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)

Sheath: Polyvinyl chloride (PVC)

 c, Nominal Section

Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800

d, feature

1). Rated power-frequency voltage Uo/U: 0.6/1KV.
2). Max. permissible continuous operating temperature of conductor: 70ºC
3). Max. shortcircuit temperature of the conductor shall not exceed: (5S maximum duration) 160ºC
4). The ambient temperature under installation should not below 0ºC
5). The bending radius of a cable should not be less than 15 times of the cable diameter.

2 Standard:

IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer’s request.

 3 The Rated Voltage(kv):

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35

2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 – 26/35

 4 Application:

1)These cables are most suitable for direct burial or for installation on trays or ducts,  Where there is

a risk of mechanical damage, armoured cables should be used.

2) For laying in ground along route with large difference of level able to bear external mechanical forces.

5 Type and Name:



Packing of copper pvc cable:

Certificate:

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificate

USA is our main market. We have many distributors from USA companies. And we have obtained UL certifications for many products, such as TC cable, DLO cable,RHH/RHW/RHW-2/XHH/XHHW/XHHW-2/SIS, THHN/THHW/THW/THW-2/THWN/THWN-2/TW,SER/SEU/USE/USE-2/MHF, MV-90/MV-105,TC cable,MC cable,DLO,type DG,PV wire,AC Cable,Soow,Welding cable  and so on

Factory:

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 420,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 2100 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.

Our Service:

1.How many year have our factory producing power cable?

Our factory produce power cable for 22 years.

2 Hong Long time the customer can get the new price after get your inquiry?

 Usually , It is only one hour is ok for us , because we are factory , we caculate the price by ourself.

3.Which port our factory is near to?   Tianjin port

4.Which payment term do we accept?

 T/T 30% in advance and balance before shiping the product or L/C 100% at sight both is ok.

5.What about the package for our power cable?

 It is usually packed in strong wooden drum.The drum size is usually:2.0m x 1.25m x 1.12m x 1.4m which suitable for container , we can do it according to customer requirments.

6.How long meter power cable for one wooden drum?

  This is according to power cable’s diameter and customer’s requirments.

7.How about our delivery time?

  According to your order’s quantity , for 1million meters power cable, it is only 25 working days is ok.

8.Do we provide sample for free?

  Yes , we provide the sample to you for free , you only paid for the delivery freight is ok.
