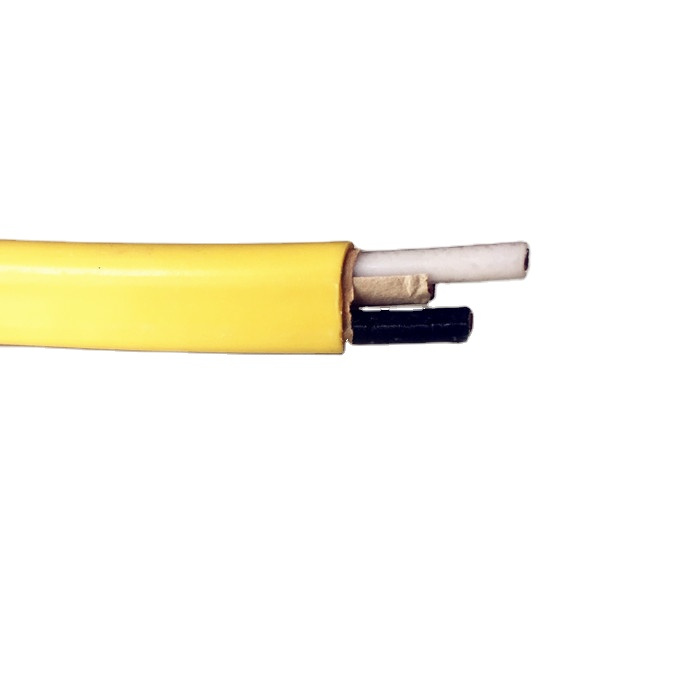

12/2 10/2 14/3 12/3 10/3 8/3 6/3 14/2 NMB Wires
12/2 10/2 14/3 12/3 10/3 8/3 6/3 14/2 NMB Wires image
Get Latest Price Request a quote
You May Like
Product Details
Product Description
Type NM-B Cable
Structure:
- Conductor: annealed copper, comply to ASTM B3
- Insulation: PVC, type THHN.
Color for 2 conductors: white, black;
Color for 3 conductors: white, black, red
- Wrapping: kraft paper tape over the grounding conductor
- Core jacket: Nylon
- assembly: the conductor laid parallel, with kraft paper tape wrapped.
- Jacket: PVC, flame retardant. 90ºC.
Standards: UL719, UL83, UL1581
UL file No.: E487898
Voltage: Max. 600V
Mark: HT CABLES (UL) E487898 TYPE NM-B 600V AWG XX CU XCDR WITH AWG XX GROUND 2022 ****FT
Technical data
| Phase conductor | PVC Inuslaiton thickness (mils) | Nylon thickness (mils) | Grouding wire | Jacket thickness (mils) | Approx. Dimension (mils) | |||
| Secion (AWG) | No. of conductor | No. of strands | Section (AWG) | No. of strands | ||||
| Two phase conductors | ||||||||
| 14 | 2 | 1 | 15 | 4 | 14 | 1 | 30 | 176*358 |
| 12 | 2 | 1 | 15 | 4 | 12 | 1 | 30 | 193*408 |
| 10 | 2 | 1 | 20 | 4 | 10 | 1 | 30 | 224*492 |
| 8 | 2 | 7 | 30 | 5 | 10 | 1 | 30 | 290*624 |
| 6 | 2 | 7 | 30 | 5 | 10 | 1 | 30 | 308*650 |
| Three phase conductors | ||||||||
| 14 | 3 | 1 | 15 | 4 | 14 | 1 | 30 | 176*463 |
| 12 | 3 | 1 | 15 | 4 | 12 | 1 | 30 | 192*528 |
| 10 | 3 | 1 | 20 | 4 | 10 | 1 | 30 | 220*632 |
| 8 | 3 | 7 | 30 | 5 | 10 | 1 | 30 | 570 |
| 6 | 3 | 7 | 30 | 5 | 10 | 1 | 30 | 655 |
| 4 | 3 | 7 | 40 | 6 | 8 | 1 | 30 | 828 |
| 2 | 3 | 7 | 40 | 6 | 8 | 1 | 30 | 877 |
| Four phase conductors | ||||||||
| 14 | 4 | 1 | 15 | 4 | 14 | 1 | 30 | 335 |
| 12 | 4 | 1 | 15 | 4 | 12 | 1 | 30 | 380 |
| 10 | 4 | 1 | 20 | 4 | 10 | 1 | 30 | 468 |
Package:
In rolls
Pls contact us for details!
Largest manufacturer of UL listed cables in China!
